Dacor Distinctive DR30E Planning Manual

DR30ES, DR30EFS, DR30EIS, DR30EIFS
Document # PG05-008

Product Dimensions

All tolerances ±1/16" (±1.6 mm) unless otherwise noted.
External handle
shown, some models
have integral handle
(see inside cover)
Product width:
29 15/16" (76.0 cm)
All specifications subject to change without notice.
Distinctive
Electric Ranges
A
B
C
D
1" (2.5 cm)
9" (22.9 cm)
Backguard*
DR30E[F]S:
Full stainless
steel side panels
DR30EI[F]S:
3" (7.6 cm)
partial stainless
steel side panels
(removable)
*
See table for compatibility

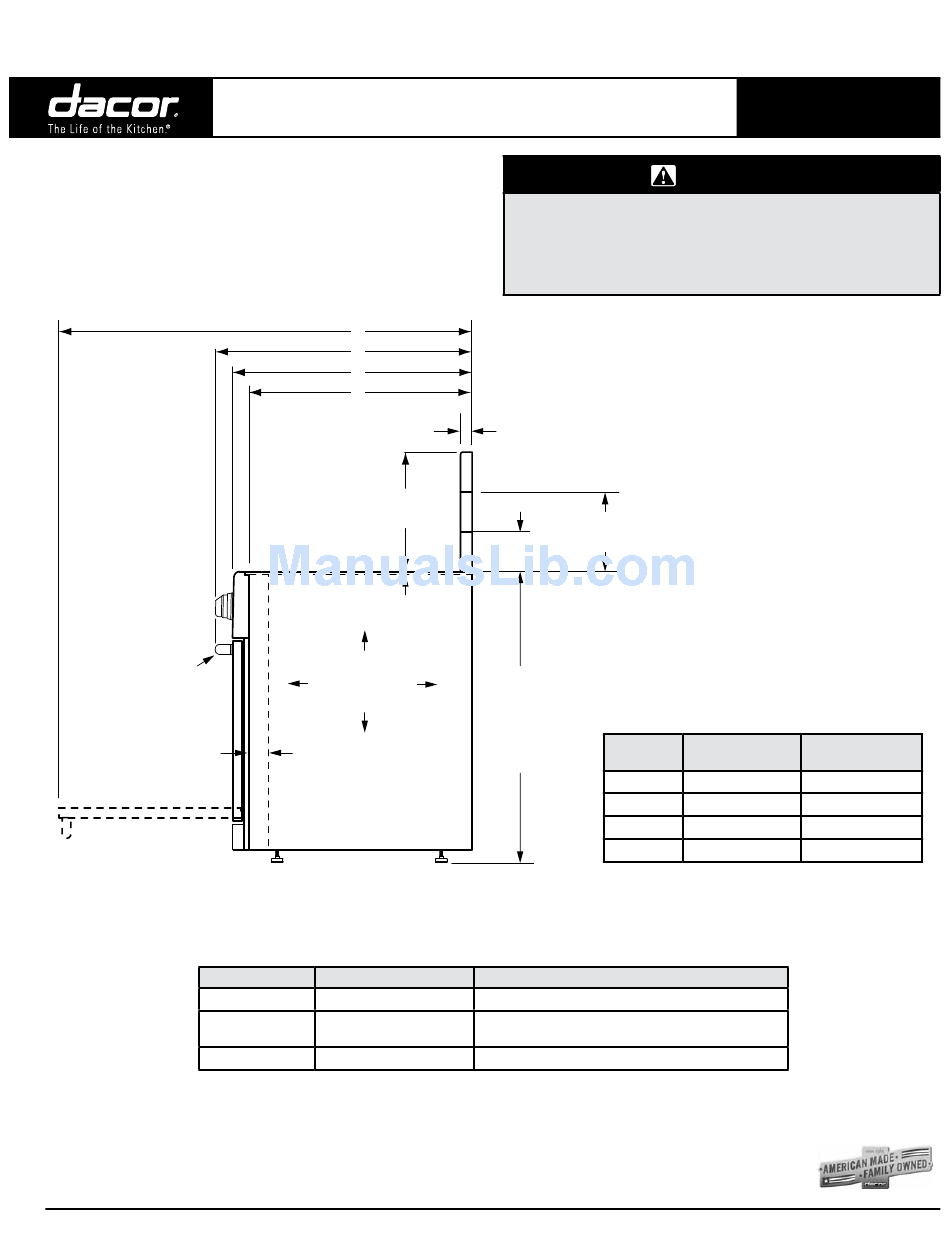

OvERALL DEPth DImENSIONS - SIDE vIEW
Part number Description
ADRB30E03 3 Inch
ADRB30E06 6 Inch
ADRB30E09 9 Inch
Models DR30EIS and DR30EIFS come equipped from the factory with flat stainless trim piece in place
of a backguard. A backguard may be purchased as an optional accessory.
The trim on models DR30ES and DR30EFS are not compatible with a raised vent.
Models DR30EIS and DR30EIFS are compatible with Dacor raised vent models ERV3015. Use only
theses specified raised vent models.
™ 30" Wide
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
Front of open door
Front of handle/knobs
Front panel
Rear of front panel
Backguard thickness
3" (7.6 cm)
backguard*
DR30EI[F]S:
3/8" (9.5 mm)
35"
(88.9 cm)
to
37"
(94.0 cm)
Optional on all models
Standard on models DR30ES, DR30EFS
Optional on models DR30EIS, DR30EIFS
Optional on all models

AvAILAbLE bAckGUARDS

www.dacor.com
warning
6" (15.2 cm)
backguard*
Dr30ES
Dimension
Dr30EiS
A 46 1/8" (117.2 cm)
B 27 3/4" (70.5 cm)
C 25 3/8" (64.5 cm)
D 23 1/4" (64.1 cm)
Compatibility
Phone: (800) 793-0093
Revised 10/30/12 Page 1/4
PLANNING
GUIDE
Dr30EFS
Dr30EiFS
46" (116.8 cm)
27 5/8" (70.2 cm)
25 1/4" (64.1 cm)
23 1/8" (58.7 cm)
