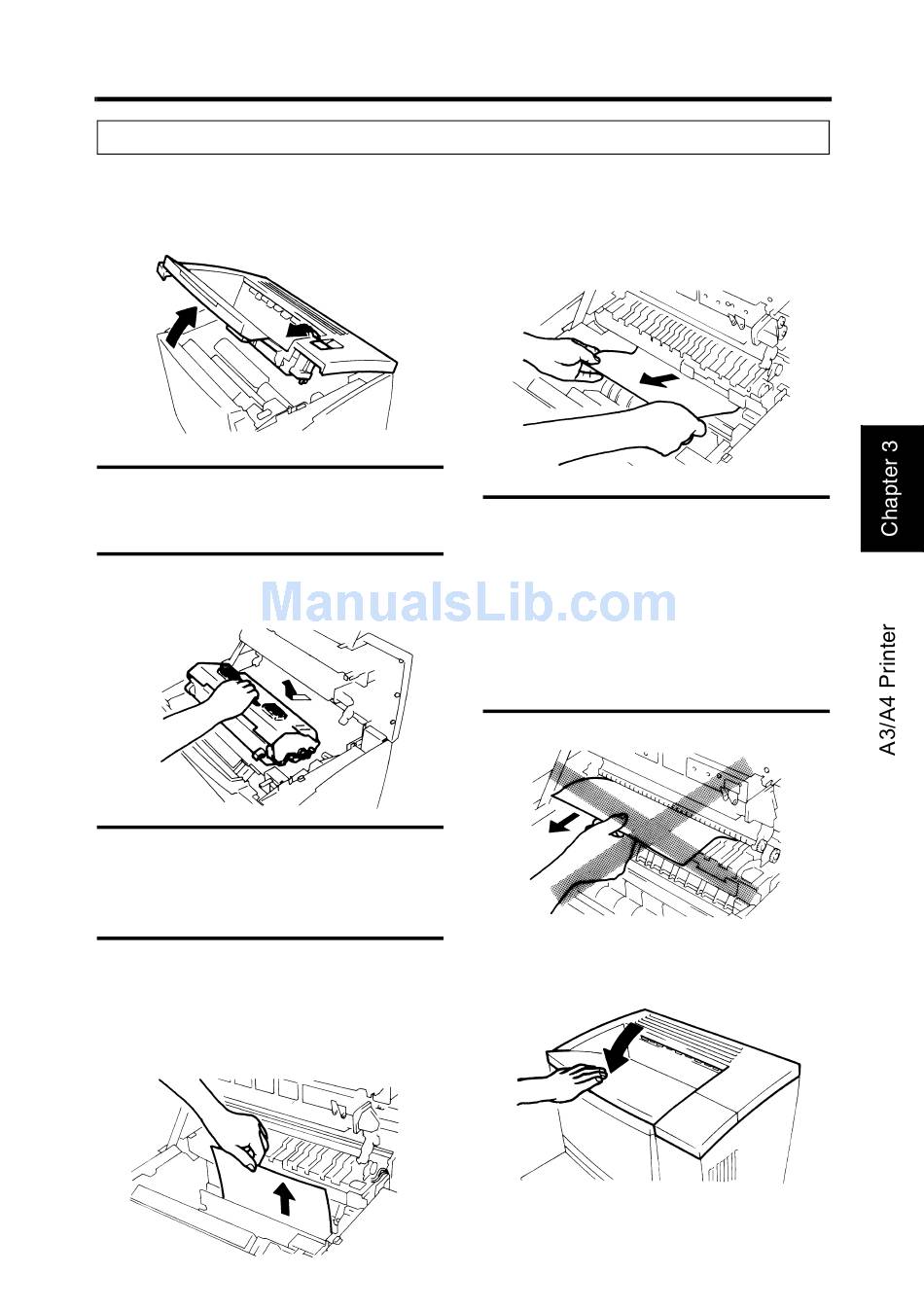

Clearing a Misfeed from inside the Printer
Open the Upper Unit by pulling the
1
Upper Unit Lock Release Lever
forward.
NOTE
Push the Print Tray in before opening the
Upper Unit.
Remove the Imaging Cartridge.
2
NOTE
Be sure to cover the Imaging Cartridge
with a heavy cloth to protect it from light
when it is removed from the Printer.
If the misfeed occurred before the
3
sheet of paper entered the Fusing
Unit, gently pull the misfed sheet up
and out as shown.
2. Troubleshooting and Maintenance
If the misfeed occurred after the sheet
4
of paper entered the Fusing Unit,
gently pull the misfed sheet toward
you and out as shown.
NOTE
• Since the toner has not yet been fixed
onto the sheet of paper, be careful not to
soil your hands or clothes when pulling
out the misfed sheet.
• Do not remove the misfeed by pulling on
the sheet of paper toward the output end
of the Fusing Unit as shown.
Reinstall the Imaging Unit and close
5
the Upper Unit.
3-11
