AGFA MATRIX DIVISION
SLIDE WRITER ™
Film Recorder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLIDEWRITER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGFA SLIDEWRITER

Summary of Contents for AGFA SLIDEWRITER

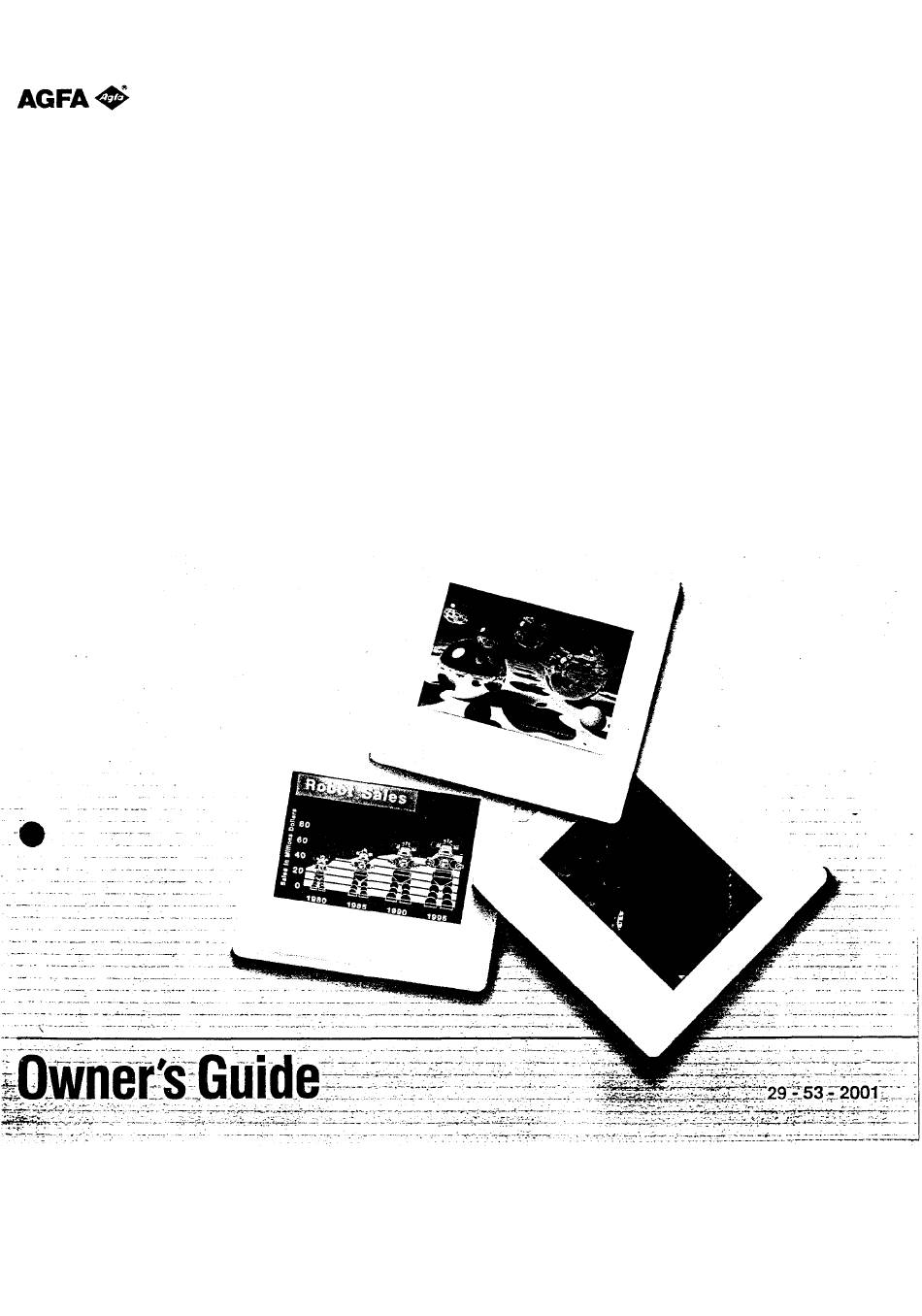

  • Page 1 AGFA MATRIX DIVISION SLIDE WRITER ™ Film Recorder...

  • Page 2: Table Of Contents

    Function Numbers ........The SlideWriter Beeper ....... . .
  • Page 3 Figure 3-4. SlideWriter Major Components ........
  • Page 4 SlideWriter. The first four chapters provide the information needed to produce slides. The fifth chapter will provide the basics of how the SlideWriter works. The following is an overview of each chapter in this manual: Chapter 1: Unpacking and Preparation - introduces the machine, its controls, and connectors.
  • Page 5 2048 x 1366 (2k) and 4096 x 2732 (4k) resolutions (software selectable). The SlideWriter is designed to be used with any computer that uses a SCSI (Small Computer System Interface) interface. The SlideWriter's functions may be controlled from the host computer.

  • Page 7: Power Requirements

    Power Requirements The SlideWriter requires either 110 VAC, 60 Hz or 220 VAC, 50 Hz depending on individual power specifications. The SlideWriter's power requirements are on the serial number identification label located on the rear of the unit. The SlideWriter draws approximately 1.5 Amps. Before installing it, ensure that adequate power is available.

  • Page 8: Figure 1-2. Slidewriter Dimensions And External Features

    Figure 1-2. SlideWriter Dimensions and External Features...

  • Page 9: Controls And Connectors

    Current Exposure Display. Press it repeatedly or hold it down to increase the displayed number to the function number desired. If the desired number is passed, the SlideWriter will repeat the numbers 1 to 11. A complete description of these functions can...
  • Page 10 Display • During normal operation, the displayed digits indicate the film frame the SlideWriter is currently exposing. A double dash ( - - ) means that the film has run out, that no film is present, or that the "film load" function has not been set.

  • Page 11: Rear Panel

    SlideWriter. Two connectors are provided to permit looping through from the SlideWriter to another device on the SCSI bus. The SCSI interface cable can be connected to either connector on the SlideWriter's Rear Panel.

  • Page 12: Installation

    Keep this manual handy for reference by you and others. To connect the SlideWriter's power line: • Ensure that the SlideWriter's POWER Switch is in the OFF position. • Connect the female end of the AC power cord supplied with the SlideWriter to the three-pronged socket on the rear panel.

  • Page 13: Connecting The Scsi Interface Cables

    Connecting the SCSI Interface Cable Figure 2-2. SCSI Interface Connectors and Cables This section provides you with instructions for connecting the SlideWriter onto the SCSI computer bus. Two cables and an in-line cable terminator are included in the SlideWriter accessory kit.
  • Page 14 The SCSI system cable (part number 01-06-054) is included for SCSI System Cable Apple Macintosh users. This short cable connects between the SCSI port on the Macintosh and the first device in the chain. The cable extender (part number 01-06-053) has a 50 pin plug Cable Extender connector at on end and a 50 pin socket connector at the other end.

  • Page 15: Some Rules To Follow When You Connect The Slidewriter

    SCSI bus. • The SlideWriter has internal SCSI bus termination. If you decide to install the SlideWriter in the middle of the device chain, as in Figure 2-6, then its terminators must be removed. Refer to page 39 of this manual for complete instructions.

  • Page 16: Slidewriter Installation Configurations

    SlideWriter Installation Configurations • Connect the SlideWriter on the SCSI Bus using one of the configurations shown in the following illustrations. Single Device Setups Figure 2-4. Single Device Setup, Both Host and SlideWriter Terminated Internally Figure 2-3. Single Device Setup, Unterminated Macintosh Plus with Cable Extender...

  • Page 17: Figure 2-5. Recommended Multiple Device Setup, Both Host And Slidewriter Terminated Internally

    Multiple Device Setups Figure 2-5. Recommended Multiple Device Setup, Both Host and SlideWriter Terminated Internally Figure 2-6. Alternate Multiple Device Setup with SlideWriter Unterminated and in the Middle of the Device Chain...

  • Page 18: Operator Instructions

    Figure 3-1. POWER Switch Location • Locate the POWER Switch on the rear panel. • Turn on the SlideWriter by pressing the right half of the POWER Switch The Display Panel is located on top of the SlideWriter. The Display Panel consists of eight indicator lights, three switches, and a two-digit LED display.
  • Page 19 EXPOSURE Display provided that no film was loaded or advanced since power-up. f the ERROR or FAULT lights flash and the SlideWriter beeps, locate the error code displayed in the CURRENT EXPOSURE Display and refer to page 30 for an error explanation. Although the...

  • Page 20: Loading Film

    Loading Film The Pentax Camera is the film receptacle for the SlideWriter. It allows you to take up to 36 high resolution images per roll. The SlideWriter is optimized for Kodak Ektachrome ASA 100 35mm film. However, other types with similar ASA settings may provide acceptable results.
  • Page 21 • Close the camera back using light pressure until it clicks shut. • Press the FUNCTION Switch on the SlideWriter until a '1' ap- pears in the Current Exposure Display. • Press the SELECT Switch. This activates the SlideWriter's load film function.

  • Page 22: Unloading Film

    Figure 3-4 until the exposure counter returns to 'S'. • Open the camera back by pulling up on the rewind knob; • Remove the film; • Press the FUNCTION Switch on the SlideWriter until a '2' appears; • Press the SELECT Switch to execute the unload film sequence.

  • Page 23: Slidewriter Maintenance

    Pentax Camera. Test Operations The SlideWriter operation can be tested at any time by running a test pattern without film (Functions 6 and 7) or with film (Functions 8 and 9) to test the unit's brightness calibration, focus, and other imaging characteristics.

  • Page 24: Running A Test Pattern Without Film

    If an ERROR or FAULT light remains on, check the error code in the Current Exposure Display and refer to page 34 to identify the problem. Then reset the SlideWriter and try the test image again. If this problem persists, contact your authorized Matrix service...

  • Page 25: Running A Test Pattern With Film

    Press the SELECT Switch to execute the function chosen. The process takes approximately 3 to 4 minutes for 2k patterns, a n d | up to 15 minutes for 4k patterns depending on the SlideWriter setting (2k default or software specified).

  • Page 26: Reference

    REFERENCE System Description Components of SlideWriter The SlideWriter receives files of rasterized image data from the host computer. The SlideWriter uses this data to produce high resolution 35mm slides. Figure 5-1. SlideWriter Major Components The SlideWriter film recorder consists of the following components: A Display Panel with Input Switches;...

  • Page 27: Figure 5-2. Slidewriter Imaging Process

    (red, green, and blue) has been recorded. The SlideWriter digital film recorder utilizes a time-modulated film recording process. This means that the light intensity of the CRT's electron beam remains constant for each pixel exposure while the amount of time spent on recording each pixel varies.

  • Page 28: Power-Up And System Reset

    • Rotates the filter wheel to the neutral filter position; • Sounds the alarm beeps for 1/2 second; • Turns the READY light on to indicate that the SlideWriter is operational; • Loads default image dimensions (2048 pixels/line x 1366 scan lines for 2k, 4096 pixels/ line x 2732 scan lines for 4k);...
  • Page 29 • Disables 180 degree rotation (if enabled); • Interrupts current command in progress; The SlideWriter requires several seconds to complete a system reset, due to the time it takes to rotate the filter wheel. Do not issue any commands until a reset has had time to complete. The...

  • Page 30: Function Numbers

    This causes the SlideWriter to activate a diagnostics rou- tine. At this time "dr" will appear in the Current Exposure Dis- play. Press the RESET Switch to return the SlideWriter to normal operation. D i a g n o s t i c routines are to be performed only by trained, qualified service personnel.
  • Page 31 Table 5-1. Numbered SlideWriter functions Choose the function number that corresponds to the function desired. The SlideWriter can perform the following functions: 1 - Load Film Select this function after loading film into the camera. It causes the SlideWriter to;...
  • Page 32 The function lets the operator set up the SlideWriter device address 5 - Set the SCSI Device on the SCSI interface to the host computer. On power up, the...
  • Page 33 Chapter 4.) Either pattern will take approximately three minutes to image in 2k mode, longer in 4k mode., The SlideWriter will beep four times when it is finished. The functions are as follows; The CRT will display test pattern 0 but the shutter will remain closed during imaging.

  • Page 34: The Slidewriter Beeper

    • A continuous repeating beep approximately once per second, the Current Exposure display flashing once per second, and a rod LED on the camera indicate that the SlideWriter is out of film. Refer to page 19 of this manual to unload the film.

  • Page 35: Programming Scsi Device Address

    The default settings may be altered in the following way: • Turn off the SlideWriter. Re-setting the DIP switches does not affect the SlideWriter until the next power-up, so the unit should be off when the settings are changed. • Lift up the left edge of the black plastic strip just beneath the Display Panel by carefully using a small screwdriver.
  • Page 36 SCSI DIP Switch SCSI ID SCSI Address 7 Is reserved for the host, and may not be used by the SlideWriter On the Device Address DIP Switch, 0 is the OFF position and 1 Is the ON position Table 5-2. Device Address Settings...

  • Page 37: Slidewriter Error Codes

    SlideWriter Error Codes Error codes are intended as a guide to the operator or programmer. Even though the SlideWriter has an extensive set of error codes, do not attempt a form of automatic error recovery. In most instances, and error code means that the SlideWriter has exposed incorrect information on film.
  • Page 38 SlideWriter can result in errors and faults. If Error Codes there is an error or fault due to SlideWriter malfunctioning, note the primary and secondary error codes and the values of all registers. Then call your Matrix service representative.
  • Page 39 Secondary Codes: 05, 06, 07 Primary Code: 84 (Continued) Reason for Error: The SlideWriter used the image parameter information it received and calculated an illegal vertical video address. • 05 indicates that the initial vertical address is greater than the allowed maximum.
  • Page 40 Problem: Memory Fault. Primary Code: 91 Solution: Turn off the SlideWriter and wait 30 seconds. Turn the SlideWriter back on and retry the image. If the error persists, there is a RAM failure. Secondary Code: 00, 01 Reason for Error: Prior to imaging, the SlideWriter verifies the checksums of various RAM data areas such as the color look-up tables (LUTs).
  • Page 41 Secondary Code: 00, 01 Reason for Error: Code "00" the CRT beam is too bright. Code "01" the CRT beam is too dim. If the SlideWriter is unable to maintain proper CRT intensity, contact your Matrix service representative. Problem: Filter Wheel Fault...

  • Page 42: Setting Slidewriter As An Unterminated Scsi Device

    This procedure is intended for qualified service personnel only. There are no user servicable parts or adjustments in the SlideWriter. If you intend to locate the SlideWriter in the middle of the SCSI bus as indicated in Chapter 2, Figure 2-6, then you must remove the SlideWriter's internal SCSI terminators.

  • Page 43: Figure 5-5. Low Voltage Power Supply Removal

    J1 on the Processor Board. Carefully remove both U1 and U2 using an IC extractor or a small flat tip screwdriver. • Save both terminator chips in case you decide to place the SlideWriter at the end of the device chain at some later date.
  • Page 44 • Position the cover, matching the velcro-like fasteners, and replace the slotted screw. • Turn the SlideWriter upright and connect the line cord and SCSI cables. Refer to page 12 for instructions on connecting the SlideWriter to the SCSI bus.

  • Page 45: Glossary Of Terms

    This glossary provides the meanings of terms for the purposes of using and programming the SlideWriter. These meanings may not coincide with other uses or with formal definitions. An imaging mode in which the CRT Beam skips over black pixels.
  • Page 46 Checking the CRT hardware to ensure it matches the intensity value Intensity Calibration - for each of the levels in the brightness table. The SlideWriter automatically adjusts this intensity value. Calibration may be performed either automatically or manually. Refer to page 29.
  • Page 47 • A sequence of operations the SlideWriter goes through when the Power-up Sequence - user turns the power on. The SlideWriter: • Jests its internal Systems; • Sets all SCSI functions to the idle state; • Performs memory diagnostics, causing a random flashing of the display lights;...

  • Page 48: Index

    ..calibrate to assigned intensities (function 4) . removing SlideWriter's internal termination . disable automatic calibration (function 3) ..enable automatic calibration function ..
  • Page 49 This page intentionally left blank Manual Number 29-53-2001 Version 2...
