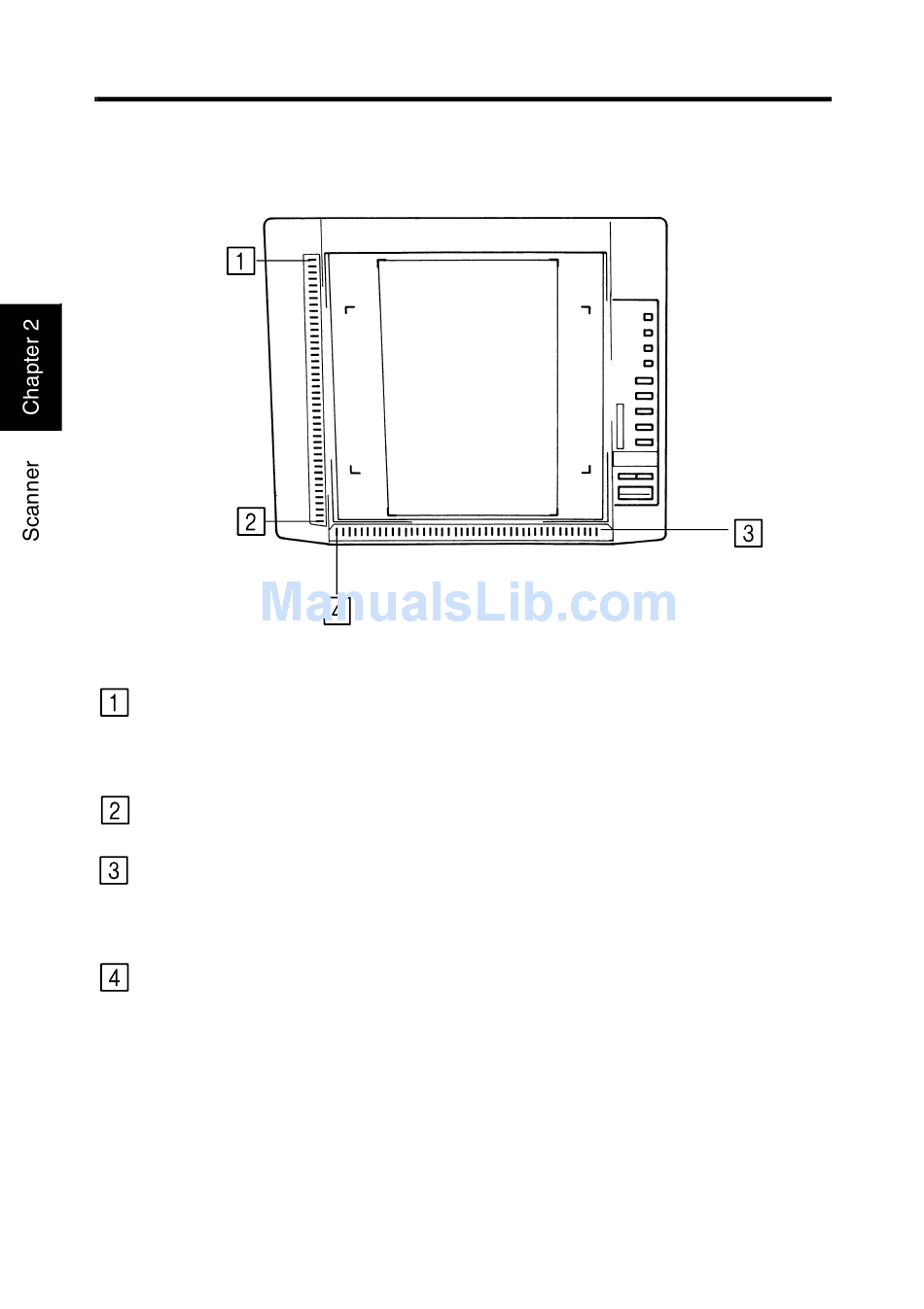

15. Manual Masking Panels (Optional)

Vertical Area Indication
Panel:
Vertical Area Clear Key: Press to clear a previously specified vertical print/scan
Horizontal Area Indica-
tion Panel:
Horizontal Area Clear
Key:
Use to specify the vertical print/scan area of the image on
the screen. There are 42 lights placed at 7mm intervals.
The lights create a pattern when lit specifying the area on
the screen that will be printed.
area.
Use to specify the horizontal print/scan area of the image
on the screen. There are 42 lights placed at 7mm intervals.
The lights create a pattern when lit specifying the area on
the screen that will be printed.
Press to clear a previously specified horizontal print/scan
area.
