HP rp2400 Series of Servers - Basic Cable Connections

Front Panel Controls and indicators

Front Panel Controls and indicators
The following section describes the controls and LED indicators at the front of the rp24xx Server as shown in
the following graphic:

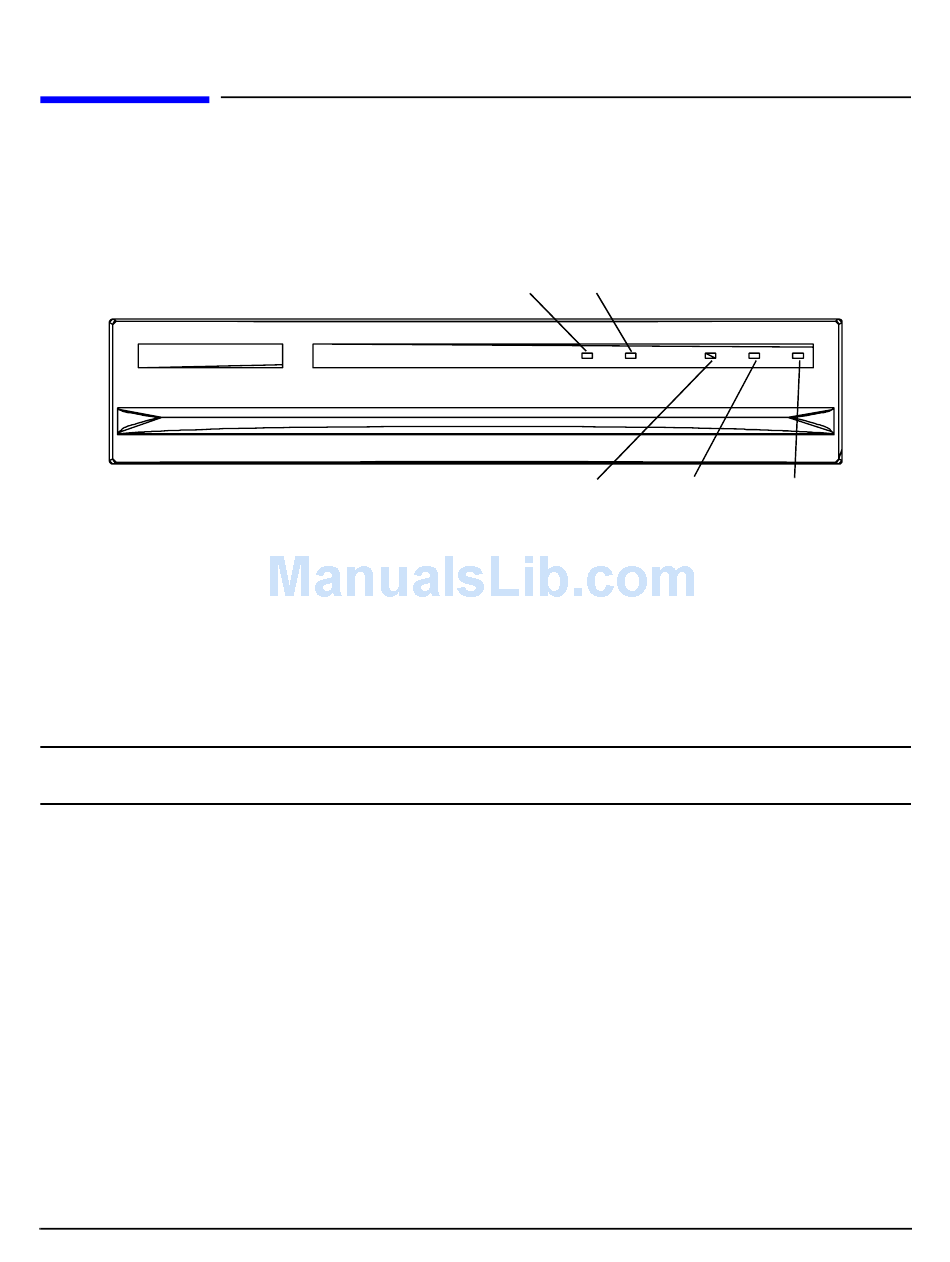

Figure 1-2 Controls and LED Indicators
ccrr018
1. (Green) RUN LED - When lit, indicates that the system is powered-up.
2. (Amber) Attention (ATTN) LED - When lit, indicates that a condition exists that requires operator
attention and assistance from HP Support.
3. (Red) Fault LED - When lit, indicates that a condition exists that requires immediate operator action.
4. (Amber) Remote LED - When lit, indicates that the remote ports are active.
5. (Green) Power LED - When lit, indicates that the system has DC power enabled.
NOTE For technical support please call your local support hotline or contact HP at
http://www.hp.com/support.

Server External Connections

External devices are interfaced with the server by means of specific connectors located on the rear bulkhead.
Exterior connections to the server include ports for:
• Small Computer System Interface (SCSI) devices
• System Console
• Local Area Network (LAN) Console
• LANs
• Power Cord
8
Run Attn.
Fault Remote Power
Chapter 1
