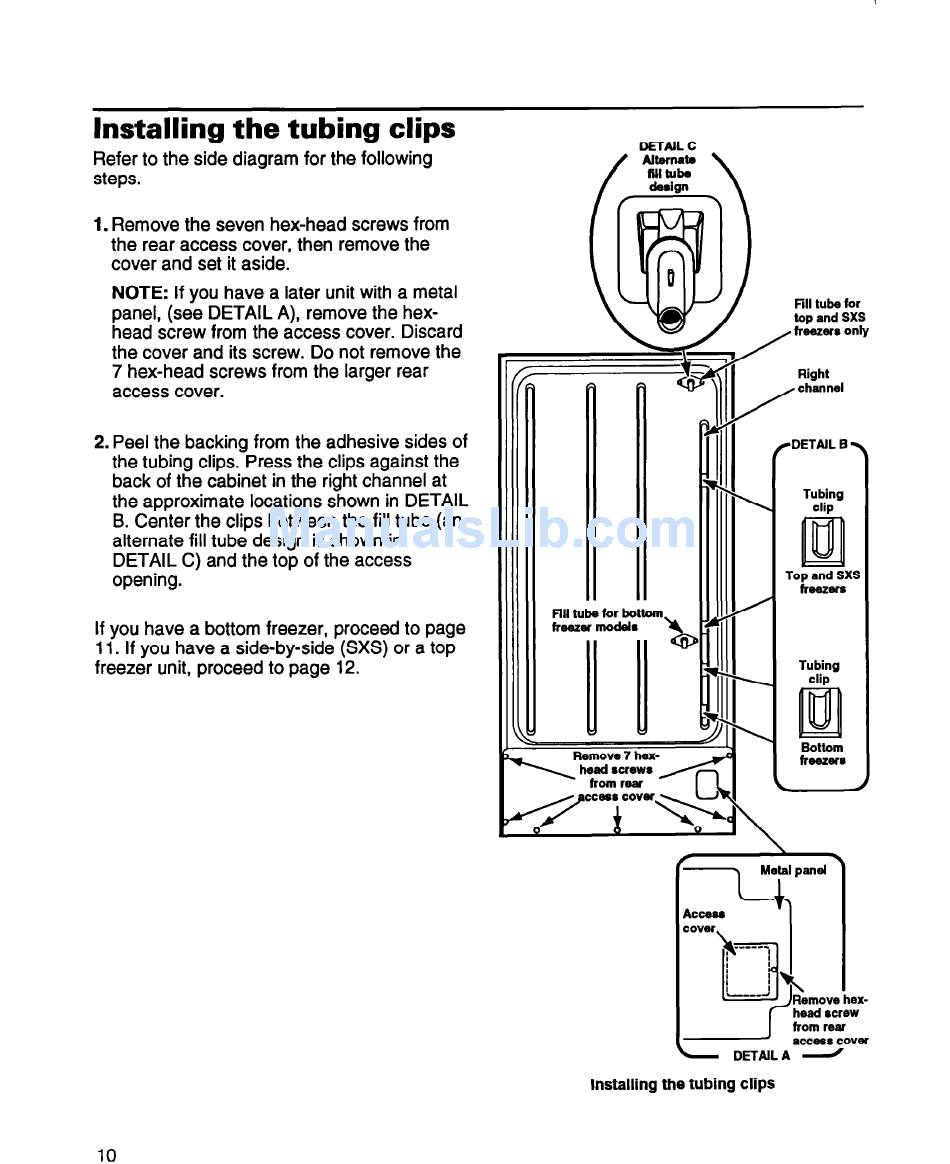

Installing the tubing clips
Refer to the side diagram for the following
steps.
1. Remove the seven hex-head screws from
the rear access cover, then remove the
cover and set it aside.
NOTE: If you have a later unit with a metal
panel, (see DETAIL A), remove the hex-
head screw from the access cover. Discard
the cover and its screw. Do not remove the
7 hex-head screws from the larger rear
access cover.
2. Peel the backing from the adhesive sides of
the tubing clips. Press the clips against the
back of the cabinet in the right channel at
the approximate locations shown in DETAIL
B. Center the clips between the fill tube (an
alternate fill tube design is shown in
DETAIL C) and the top of the access
opening.
If you have a bottom freezer, proceed to page
11. If you have a side-by-side (SXS) or a top
freezer unit, proceed to page 12.
DETAlL C
Fill tube for b
freezer mode
Fill tube for
top and SXS
freexerr only
Right
/
channel
rDETAlL B 9
Tubing
clio
Top and SXS
freezers
Tubing
CliD
Bottom
freexere
acces8 cover
DETAlLA -
Installing the tubing clips
18x-
10
