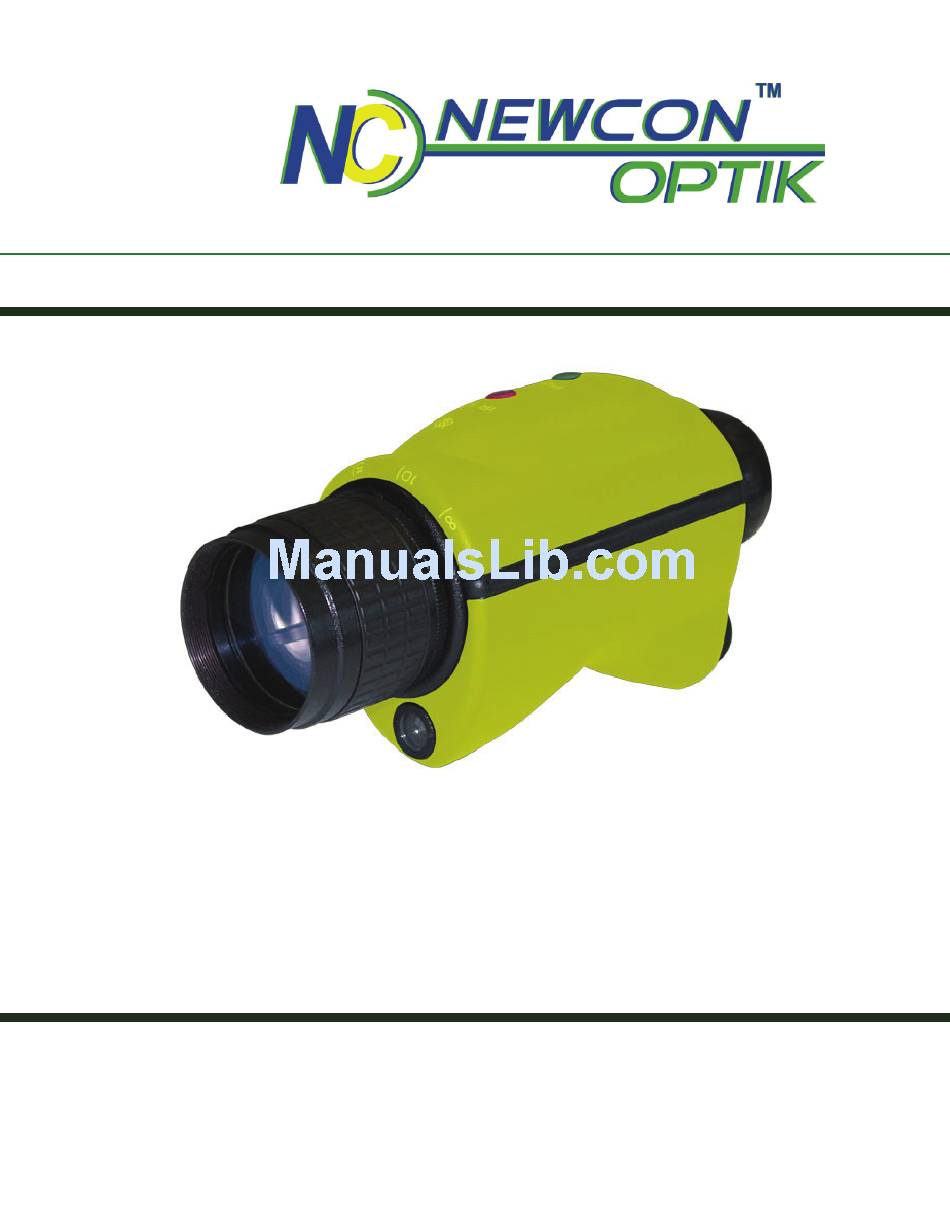

- Page 1 Operation Manual NIGHT VISION MONOCULAR PHANTOM 150 105 Sparks Ave., Toronto, ON, M2H 2S5, Canada...
-
Page 3: Important Information
IMPORTANT INFORMATION Read prior to activation You have just purchased a complicated electronic device. To operate it properly, please read this manual carefully. Here are some common Precautions that must be noted. • NEVER expose the opened objective lens of an active unit in daylight. -
Page 4: Table Of Contents
Table of contents Overview ............1 Delivery set .............4 Optional accessories ..........4 Specifications ..........5 Design..............6 Operation Instructions ........7 5.1. Prior to use..........7 5.2. Testing of operation........7 5.3. Operation at night ........7 5.4. Using the camera/video adapter....8 5.5. Using interchangeable lenses......8 TROUBLESHOOTING ........9 6.1. -
Page 5: Overview

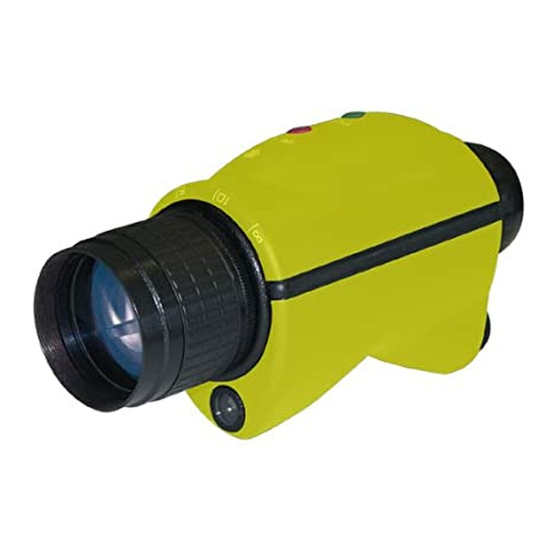

Thank you for purchasing Phantom 150. Please read all the instructions carefully prior to use. Failure to follow the instructions may void the warranty. 1. Overview Phantom 150 Night Vision monocular is a sophisticated optoelectronic observation device designed to allow observations of personnel and orientation in night time conditions. - Page 6 The eye piece allows dioptric adjustment Soft rubber eye cap blocks disturbing lateral light and protects from lens from occasional impacts Standard batteries power the device for at least 10 hours Two switch buttons separate switch the night vision device and the IR illuminator, thus saving batteries; Original compact design and ergonomic shape make the device handy and comfortable to hold with one hand Low battery indicator...
- Page 7 Do not take the cover off the lens unless necessary. Keep away from heating appliances and central heating. Do not apply excessive force to lens assembly, agile elements and thread connections. Due to considerable optical magnification of the eyepiece some small structures inside the tube coating in the form of dark and/or white points may be seen in the field of view;...
-
Page 8: Delivery Set
2. Delivery set Phantom 150 is supplied with the following components: Quantity Phantom 150 Carrying strap Case Lens cover Manual Warranty Card Optional accessories Camera/video adapter Additional lenses (85/1.5, 300/4.5, 500/5.6, 1000/10 ) -
Page 9: Specifications
3. Specifications Generation 2.3 ± 0.2 Magnification, x Field of view, degrees 1 - ∞ Focus range, m Objective lens diameter, mm Objective F number Eye relief, mm Eyepiece focal length, mm System resolution, mrad ± 4 Dioptric correction Tube resolution, standard 36-40 high definition, lp/mm... -
Page 10: Design
4. Design 1- Body 2- Lens focusing ring 3 - Eyepiece 4 - Power switch button 5 - IR illuminator switch 6 - IR Illuminator 7 - Battery compartment 8 - Lens cap cover 9 - Carrying strap 10 - Low battery indicator... -
Page 11: Operation Instructions
5. Operation Instructions WARNING! Never operate your night vision device at daylight without the lens cover on! Never direct the lens to bright light! 5.1. Prior to use Unpack the device. To install/replace battery unscrew battery compartment cover (7) and install/replace the battery observing the polarity;... -
Page 12: Using The Camera/Video Adapter
If ambient light is insufficient an IR illuminator can be activated by pressing switch (5). Note: After a while the Unit will shut itself off to prevent battery drain. 5.4. Using the camera/video adapter. Prior to installing the adapter, carefully remove the eye cup. The adapter consists of 2 rings: a) Camera adapter is 52x1 mm size. -
Page 13: Troubleshooting
6. TROUBLESHOOTING 6.1. The monocular does not work. Check that the battery is installed properly. Check the battery charge. Replace if it is weak. 6.2. The image does not appear in focus. Bring the inspected object to the center of the image. Turning the eyepiece focusing lever (3) adjust to achieve the clearest image on the screen. -
Page 14: Visibility Decreases And / Or Disappears
6.5. Visibility decreases and / or disappears. Bright light sources (moon, projectors or headlights) may result in visibility degradation or even complete disappearance. If this happens move the scope away from the light source immediately. The image should be restored in within 2 minutes. -
Page 15: Warranty
Type of Zone Size of black spots, Number of black spots spots Central Up to 0.073 Not limited (circle of diameter From 0.073 to 0.150 5.5 mm) From 0.150 to 0.294 Immovable Boundary From 0.073 to 0.150 (circle of diameter From 0.150 to 0.294 5.5-9.0 mm) From 0.294 to 0.400... - Page 16 Postage, insurance, and shipping costs incurred while presenting your NEWCON product for warranty service are your responsibility. If shipping from North America, please, include a cheque or money order payable to NEWCON OPTIK for the amount of $15.00 to cover handling and return shipping.
-
Page 17: Customer Support
Standard Time. At no time should equipment be sent back to Newcon without following the instructions of our technical support department. NEWCON OPTIK accepts no responsibility for unauthorized returns. To locate NEWCON Authorized Dealer call: Tel: (416) 663-6963 Fax: (416) 663-9065 Email: newconsales@newcon-optik.com... -
Page 18: Acceptance Certificate
9. ACCEPTANCE CERTIFICATE NIGHT VISION DEVICE PHANTOM 150 Serial number: _________________________________ Complies with all technical specifications and has passed the inspection. Date of production: _________________________________ Quality Inspector: __________________________________ Quality Assurance Seal... - Page 20 NEWCON OPTIK ™ 2010 Printed in Canada...
