Product Update: HP Netserver LXr 8500 Installation Guide: Gasket Installation (cont.)
7. Remove the (short) T-15 Torx
8. Push the PCI access panel back about ½ inch and lift the PCI access panel away from the top cover.
See Figure 3-10 below.
9. Turn the PCI access panel over so that you can see the gaskets.
10. Remove the existing gaskets on each side of the PCI access panel. The gasket on the end of the panel does not
require replacement.
11. Place the new 13-inch gasket flush against the hinges and even with the last hinge at the rear of the cover.
Repeat the process for each side of the access cover. See Figure 3-11 on the following page.
HP Part Number 5971-3021
Printed in April 2001
®
screws holding the access panel to the top cover.

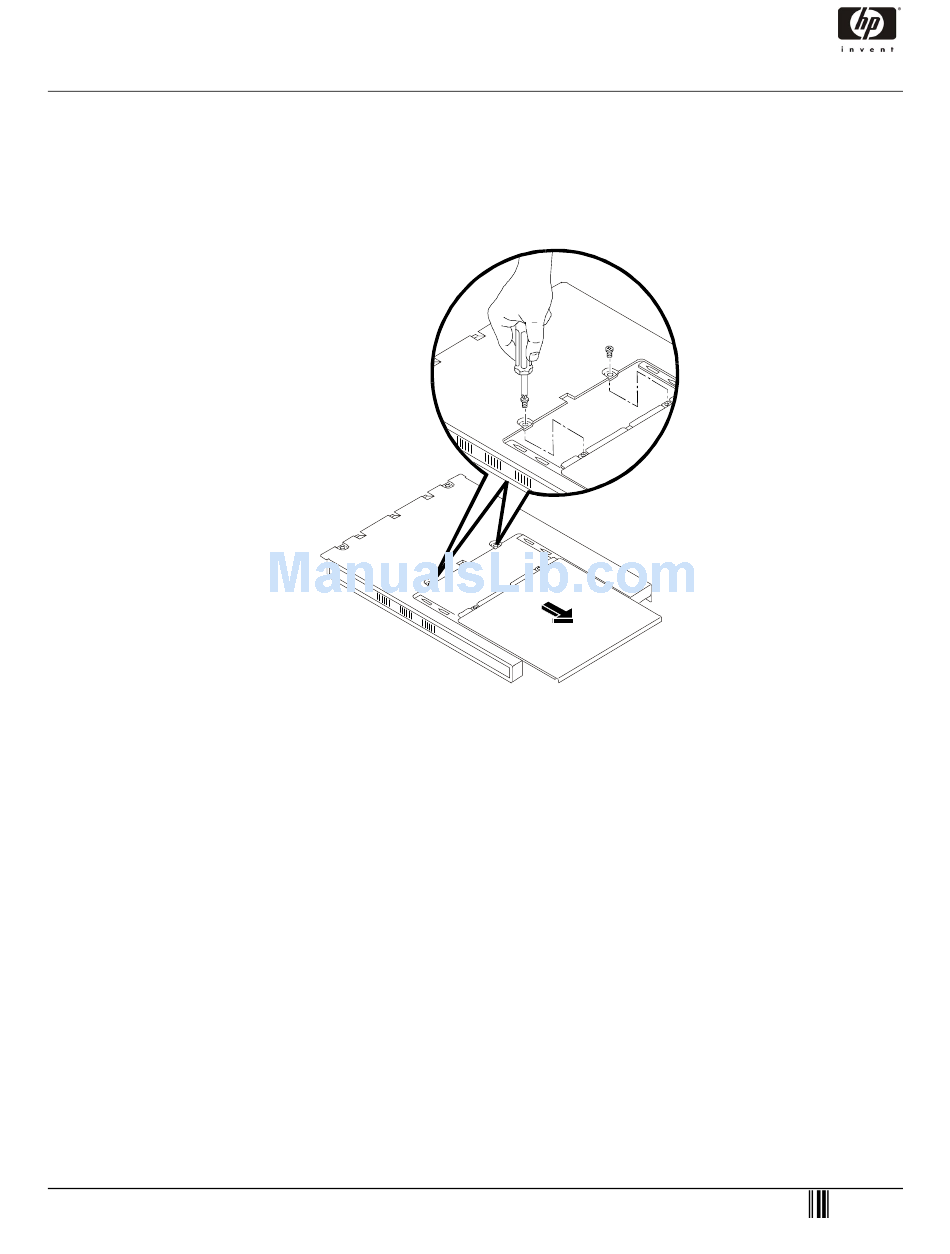

Figure 3-10. Removing the PCI Access Panel
'"&$ ( '
