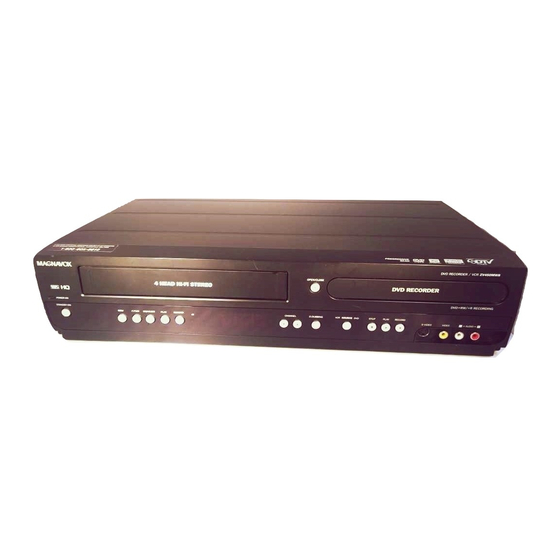

Magnavox ZV450MW8 - DVD Recorder And VCR Combo Owner's Manual

Owners manual
Hide thumbs

Advertisement

Owner's Manual
ZV450MW8
D
V
IGITAL
IDEO
R
EAD YOUR
© 2007 Funai Electric Co., Ltd.
D
R
ISC
ECORDER WITH
V
C
IDEO
ASSETTE
T
HANK YOU FOR CHOOSING
N
EED HELP FAST
Q
G
/
O
UICK
UIDE AND
OR
WNER
M
YOUR
AGNAVOX PRODUCT MORE ENJOYABLE
I
F YOU HAVE READ YOUR INSTRUCTIONS AND STILL NEED ASSISTANCE
YOU MAY ACCESS OUR ONLINE HELP AT HTTP
1-800-605-8610
OR CALL
INSTRUCCIONES EN ESPAÑOL INCLUIDAS.
R
ECORDER
M
AGNAVOX
?
'
M
S
ANUAL FIRST FOR QUICK TIPS THAT MAKE USING
.
://
.
-
WWW
FUNAI
CORP
WHILE WITH YOUR PRODUCT
.
,
.
COM
.

Advertisement

Table of Contents
loading

  Also See for Magnavox ZV450MW8 - DVD Recorder And VCR Combo

  Related Manuals for Magnavox ZV450MW8 - DVD Recorder And VCR Combo

  Summary of Contents for Magnavox ZV450MW8 - DVD Recorder And VCR Combo

  • Page 1 Owner's Manual ZV450MW8 IGITAL IDEO ECORDER WITH IDEO ASSETTE ECORDER HANK YOU FOR CHOOSING AGNAVOX EED HELP FAST EAD YOUR UICK UIDE AND WNER ANUAL FIRST FOR QUICK TIPS THAT MAKE USING YOUR AGNAVOX PRODUCT MORE ENJOYABLE F YOU HAVE READ YOUR INSTRUCTIONS AND STILL NEED ASSISTANCE YOU MAY ACCESS OUR ONLINE HELP AT HTTP FUNAI CORP...
  • Page 2: Precautions

    PRECAUTIONS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS WARNING: APPLIANCE TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol, within an CAUTION equilateral triangle, is intended to alert the user to the RISK OF ELECTRIC SHOCK presence of uninsulated “dangerous voltage”...
  • Page 3: Important Safeguards

    PRECAUTIONS Important Safeguards 1. Read Instructions - All the safety and operating instructions information with regard to proper grounding of the mast and should be read before the appliance is operated. supporting structure, grounding of the lead-in wire to an 2.
  • Page 4 PRECAUTIONS Installation Location Supplied Accessories For safety and optimum performance of this unit: remote control (NB555UD) with batteries (AAAx2) • Install the unit in a horizontal and stable position. Do not place anything directly on top of the unit. Do not place the unit directly on top of the TV. •...
  • Page 5: Maintenance

    PRECAUTIONS Maintenance 1. Please visit your local Audio/Video store and purchase a Servicing good quality VHS video head cleaner. • Please refer to relevant topics on “TROUBLESHOOTING” 2. If a video head cleaner does not solve the problem, on pages 90-94 before returning the product. please consult your dealer or an Authorized Service •...
  • Page 6: Table Of Contents

    CONTENTS Introduction SPECIAL PLAYBACK ......56 Resume Playback ........56 PRECAUTIONS .
  • Page 7: Features

    FEATURES This unit not only plays back DVD, CD and VCR but also offers features for you to record on DVD and edit them after that. The following features are offered with this unit. Setting pictures for thumbnails: Recording You can change pictures for thumbnails. DVD mode VCR mode Dividing titles (DVD+RW/DVD-RW only): You can divide a title into 2 or more.
  • Page 8: Functional Overview

    FUNCTIONAL OVERVIEW Front Panel 2019181716 1110 9 8* 7 6 5 4 ( * ) The unit can also be turned on by pressing these buttons or insert a cassette tape. 1. Cassette compartment (VCR) 14. CHANNEL L / K buttons (DVD/VCR) Insert a cassette tape here.
  • Page 9: Rear Panel

    FUNCTIONAL OVERVIEW Rear Panel DVD/VCR DIGITAL AUDIO S-VIDEO COMPONENT S-VIDEO IN --- AUDIO --- OUT VIDEO OUT AUDIO OUT ANTENNA COAXIAL IN --- VIDEO --- OUT 1. AC Power Cord (DVD/VCR) 10. S-VIDEO OUT jack (DVD only) Connect to a standard AC outlet to supply power to this Use to connect the S-video input of a TV monitor, AV unit.
  • Page 10: Remote Control

    FUNCTIONAL OVERVIEW Remote Control Installing the Batteries in the Remote Control Using a Remote Control Install the batteries (AAAx2) matching the polarity Keep in mind the following when using the remote control: indicated inside battery compartment of the remote • Make sure that there are no obstacles between the remote control.
  • Page 11 FUNCTIONAL OVERVIEW 1. DISPLAY button (DVD/VCR) 20. CLEAR button (DVD/VCR) Press to display the display menu on or off. DVD mode: 2. DTV/TV button (DVD/VCR) Press to clear the password once entered or to cancel Press to switch between digital TV mode (DTV) and the programming for CD or to clear the selecting analog TV mode.
  • Page 12: Front Panel Display

    FUNCTIONAL OVERVIEW Front Panel Display 1. Current status of the unit : Appears when a DVD is on 3. Recording mode the disc tray. : Appears when playback is : Indicates the recording speed of : Appears when the timer paused.
  • Page 13: Antenna Cable Connection

    ANTENNA CABLE CONNECTION This section describes how to connect your unit to an antenna, cable box, etc. Disconnect the power cord of your TV from the AC outlet. Disconnect RF coaxial cable from antenna input jack of your TV. VHF / UHF antenna rear of your TV RF coaxial cable...
  • Page 14: Rf Modulator Connection

    RF MODULATOR CONNECTION If your TV has antenna in jack only, it is still possible to connect this unit to your TV by using a stereo audio/video RF modulator. In this case, follow the instructions below. 1) Disconnect the power cords of the devices from the AC outlet. 2) Make the connection as illustrated below.
  • Page 15: Connection To A Cable / Satellite Box

    CONNECTION TO A CABLE / SATELLITE BOX 1) Disconnect the power cords of the devices from the AC outlet. 2) Make the connection as illustrated below. 3) Plug in the power cords of the devices to the AC outlet. e.g.) RCA video cable rear of this unit RCA audio...
  • Page 16: Connection To A Tv

    CONNECTION TO A TV Make one of the following connections, depending on the capabilities of your existing device. VCR and basic DVD connection RCA audio cable RCA video VIDEO cable AUDIO IN DVD/VCR this unit S-VIDEO IN --- AUDIO --- OUT DVD/VCR DIGITAL AUDIO...
  • Page 17: Connection To An Audio System

    CONNECTION TO AN AUDIO SYSTEM • When you change the connections, all devices should be turned off. • Refer to the operation manual accompanying external devices for more information. Playing Back 2 Channel Analog Audio Playing Back Multi Channel Digital Audio Dolby Digital decoder, stereo system audio...
  • Page 18: The Vcr / Dvd Recorder Switching

    THE VCR / DVD RECORDER SWITCHING Because this product is a combination of a VCR and a DVD recorder, you must select first which component you wish to operate with [SOURCE]. DVD mode STANDBY-ON Press [DVD] on the remote control. SOURCE DTV/TV DISPLAY OPEN/CLOSE...
  • Page 19: Guide To On-Screen Displays And Menus

    GUIDE TO ON-SCREEN DISPLAYS AND MENUS This unit uses the following on-screen displays and menus to guide you to the easy operations. The on-screen display give you the information on the loaded disc, the disc/file in playback, etc. The menus allow you to change the various kinds of settings for playing back, recording, or editing to suite your preference. On-Screen Display / Menu The on-screen display changes in the following order as you press [DISPLAY].
  • Page 20: Main Menu

    GUIDE TO ON-SCREEN DISPLAYS AND MENUS Main Menu Press [SETUP] to display the main menu. Then use 1. Required Settings: [K / L] to select a menu and press [OK] to display the To set up the required settings. menu. These menus provide entries to all main functions 2.
  • Page 21: Initial Setting

    INITIAL SETTING You need to follow these steps when you turn on this unit for the first time. Press [STANDBY-ON y y ]. Before: STANDBY-ON STANDBY-ON Turn the TV on. Select the input to SOURCE DTV/TV DISPLAY OPEN/CLOSE which the unit is connected. .@/: Use [K / L] to select your desired language, then press [OK] to set...
  • Page 22: Channel Setting

    CHANNEL SETTING If you have changed antenna connection, we recommend that you program available channels in your area with the following procedures. Auto Channel Scan Press [SETUP]. STANDBY-ON SOURCE DTV/TV DISPLAY OPEN/CLOSE Use [K / L] to select “Channel”, then .@/: .@/: press [OK].
  • Page 23: Adding / Deleting Channels

    CHANNEL SETTING Adding / Deleting Channels You may want to add or delete TV channels if your Press [DTV/TV] to select the mode channel lineup changes or if you no longer watch some channels. (DTV or TV) to/from which you want Adding channel is only available for the analog TV to add/delete channels.
  • Page 24 CHANNEL SETTING DIGITAL ANALOG Select the channel number to add or Select the channel number to delete. • Only the major channel is displayed in “Manual delete. Channel Preset” menu. (The channel number • Use [CHANNEL ] to cycle through only displayed in the parenthesis is a virtual channel the memorized channels.
  • Page 25: Setting The Clock

    SETTING THE CLOCK Set the clock before you try the timer programming. If a PBS (public broadcasting station) is available in your area, follow “Auto Clock Setting” below. If not, follow “Manual Clock Setting” on page 26. Auto Clock Setting This unit can set the time and date automatically by Press [SETUP].
  • Page 26: Manual Clock Setting

    SETTING THE CLOCK Manual Clock Setting Daylight Saving Time When “Daylight Saving Time” is “ON”, the unit clock will Press [SETUP]. automatically adjust the time in order to fit the daylight saving time. “ON (MAR - NOV)” has been selected as the default. Use [K / L] to select “Clock”, then Press [SETUP].
  • Page 27: Tuner Settings

    TUNER SETTINGS <Digital TV Channels> Switching Analog Mode / Enter the major and minor channel number with [the Digital Mode Number buttons] to select a channel you want to watch. For 1-digit number You can easily switch the analog TV (NTSC) and digital TV e.g.) 2-2 ch: (ATSC) with the remote control and enjoy viewing the major channel...
  • Page 28: Selecting Tv Audio

    TUNER SETTINGS This section describes how to switch the TV audio. When you record a TV program, only the audio selected here will be recorded. Selecting TV Audio Digital TV Press [AUDIO] to cycle through STANDBY-ON available audio languages. English 1/2 SOURCE DTV/TV DISPLAY OPEN/CLOSE...
  • Page 29 TUNER SETTINGS Selecting TV Audio (cont’d) Analog TV Press [SETUP]. STANDBY-ON SOURCE DTV/TV DISPLAY OPEN/CLOSE Use [K / L] to select “Required .@/: Settings”, then press [OK]. “Required Settings” menu will appear. Use [K / L] to select “TV Audio PQRS WXYZ Select”, then press [OK].
  • Page 30: Dtv Closed Caption

    TUNER SETTINGS DTV Closed Caption Digital TV Digital TV has its own closed captions called DTV CC. Use this menu to change the settings for DTV CC. Press [SETUP]. STANDBY-ON SOURCE DTV/TV DISPLAY OPEN/CLOSE Use [K / L] to select “Required .@/: Settings”, then press [OK].
  • Page 31: Closed Caption Style

    TUNER SETTINGS Closed Caption Style Digital TV Digital TV can also change the style of its closed caption such as font, color or size, etc. Press [SETUP]. STANDBY-ON Use [K / L] to select “Required SOURCE DTV/TV DISPLAY OPEN/CLOSE Settings”, then press [OK]. .@/: Use [K / L] to select “CC Style”, then press [OK].
  • Page 32 TUNER SETTINGS Use [K / L] to select the item and <Font Opacity> Font opacity of the displayed caption can be switch the setting for each item you switched as below. want to set, then press [OK]. • When “User Setting” is set to “ON”, you can set Font Opacity VCR DVD the following items.
  • Page 33: Information On Dvd Recording

    INFORMATION ON DVD RECORDING Before you make a recording, read the following information. Recordable Discs Recording Mode This unit can record to DVD+RW, DVD+R, DVD-RW and You can select a recording mode among 6 options, and DVD-R. the recording time will depend on the recording mode DVD+R/DVD-R can only be recorded to once.
  • Page 34: Before Recording

    BEFORE RECORDING Make Recording Compatible Setting for Auto Chapter You can set a specified time for chapter marks. Use this feature to make the unfinalized + VR mode discs 1) Press [SETUP]. recorded on other unit recordable on this unit. When you make an additional recording on this unit with “Replace 2) Use [K / L] to select “Recording”, then press [OK].
  • Page 35: Basic Recording & One-Touch Timer Recording

    BASIC RECORDING & ONE-TOUCH TIMER RECORDING Follow the steps to record TV programs. Press [STANDBY-ON y y ]. Turn on the TV and be sure to select the input to which the unit is connected. Press [DVD]. STANDBY-ON STANDBY-ON Press [OPEN/CLOSE A] to open the disc tray and insert your disc with its SOURCE DTV/TV...
  • Page 36 BASIC RECORDING & ONE-TOUCH TIMER RECORDING Press [REC I] to start recording. Press [STOP C] to stop recording. “I” will be displayed for 5 seconds. The recorded title will appear in the title list. (Refer to “Guide to a Title List” on page 65.) e.g.) DVD+R Press [PAUSE F] to pause recording.
  • Page 37: Timer Recording

    TIMER RECORDING You can program the unit to record up to 8 programs within a month in advance. Daily or weekly program STANDBY-ON recordings are also available. Before recording, make sure SOURCE DTV/TV DISPLAY OPEN/CLOSE OPEN/CLOSE • Set the clock before setting a timer programming. •...
  • Page 38 TIMER RECORDING Use [K / L] to select analog (“- - -”) / Use [K / L] to select a recording digital (“DTV”) mode or external mode. input (E1 / E2), then press [B]. Timer Programming VCR DVD Date Start Mode Timer Programming VCR DVD...
  • Page 39 TIMER RECORDING Checking, canceling, or correcting the timer If the timer program did not complete correctly, programming information the error number appears in the timer pro- gramming list. 1) Press [TIMER SET]. Timer Programming VCR DVD 2) Press [TIMER]. Date Start Mode JAN/01 12:57AM 1:57PM...
  • Page 40: Hints For Timer Recording

    TIMER RECORDING Hints for Timer Recording • If there is a power failure or this unit has been unplugged recording under such condition, cancel timer recording by for more than 30 seconds, the clock setting and all timer pressing [TIMER SET] during timer standby or stop programming will be lost.
  • Page 41: Overwriting Unnecessary Title

    OVERWRITING UNNECESSARY TITLE Overwriting from the Beginning of Overwriting in the Middle of the Title the Title You can overwrite the existing title from the selected You can overwrite the existing title from the beginning. position. 1) Press [STANDBY-ON y y ]. 1) Follow the steps 1 and 2 on the left.
  • Page 42: Hints For Overwriting

    OVERWRITING UNNECESSARY TITLE Hints for Overwriting When you overwrite on the unnecessary title, there were various circumstances such as follows. Please note that following cases only describe the overwriting without any recording mode discrepancy. To avoid accidental deletion, please check if there is no important title after the overwriting point. When overwriting title is shorter than the existing title: (overwriting from the beginning of the title) overwrite...
  • Page 43: Settings For An External Device

    SETTINGS FOR AN EXTERNAL DEVICE Connection to an External Device Connect the external device properly to the unit by using input jacks either E2 (front) or E1 (rear). When connecting an external device of monaural output to this unit, use AUDIO L jack of E2 (front). Use S-video or the RCA audio/video cables for this connection.
  • Page 44: Recording From An External Device

    SETTINGS FOR AN EXTERNAL DEVICE Recording from an External Device Before recording from an external device, refer to the Turn on the TV and press instructions for the connection on page 43. [STANDBY-ON y y ], and be sure to select the input of the TV to which the unit is connected.
  • Page 45: Setting A Disc To Protect

    SETTING A DISC TO PROTECT To prevent accidental recording, editing or erasing the titles, you can protect them from “Disc Edit” menu. Press [SETUP]. STANDBY-ON Use [K / ] to select “Disc Edit”, then press [OK]. SOURCE DTV/TV DISPLAY OPEN/CLOSE .@/: Use [K / L] to select “Disc Protect OFF ON”, then press [OK].
  • Page 46: Playing The Discs In Other Dvd Players

    PLAYING THE DISCS IN OTHER DVD PLAYERS Finalizing a Disc Press [SETUP]. You will need to finalize discs to play back in other DVD players. Finalizing may take several minutes up to an hour. A shorter recording period on the disc will require a Use [K / L] to select “Disc Edit”, then longer time period for finalization.
  • Page 47: Auto Finalizing

    PLAYING THE DISCS IN OTHER DVD PLAYERS Auto Finalizing Press [SETUP]. You can finalize discs automatically using this function. You can use this function to finalize discs after finishing all timer recordings and at the end of the disc space. Use [K / L] to select “Recording”, then press [OK].
  • Page 48: Dubbing Mode

    DUBBING MODE Press [SETUP]. You can copy a DVD to a cassette tape or copy a cassette tape to a DVD. This function will be possible only if the DVD or the cassette tape is not copy protected. Before starting this function, prepare for the recording on the Use [K / L] to select “Recording”, DVD+RW/+R, DVD-RW/-R or the cassette tape.
  • Page 49 DUBBING MODE VCR to DVD DVD to VCR Use [K / L] to select “VCR DVD”, Use [K / L] to select “DVD VCR”, then press [OK]. then press [OK]. Dubbing Mode VCR DVD Dubbing Mode VCR DVD DVD VCR DVD VCR Press [SETUP] to exit.
  • Page 50: Information On Playback

    INFORMATION ON PLAYBACK Before you play back DVD, read the following information. Playable Discs and Files Color Systems DVD are recorded in different color systems throughout the This unit is compatible to play back the following discs. world. The most common color system is NTSC (which is To play back a DVD, make sure that it meets the requirements used primarily in the United States and Canada).
  • Page 51: Basic Playback

    BASIC PLAYBACK Direct Playback Press [STANDBY-ON y y ]. Turn on the TV and be sure to select the input to which the unit is connected. STANDBY-ON STANDBY-ON Press [DVD]. SOURCE DTV/TV DISPLAY OPEN/CLOSE OPEN/CLOSE Press [OPEN/CLOSE A] to open the .@/: disc tray and insert your disc with its label facing up.
  • Page 52: Playback From The Title List

    BASIC PLAYBACK Playback from the Title List Press [STANDBY-ON y y ]. Turn on the TV and be sure to select the input to which the unit is connected. STANDBY-ON STANDBY-ON Press [DVD]. SOURCE DTV/TV DISPLAY OPEN/CLOSE OPEN/CLOSE Press [OPEN/CLOSE A] to open the disc tray and insert your disc with its .@/: .@/:...
  • Page 53 BASIC PLAYBACK Use [K / L] to select a desired title, Use [K / L] to select “Play”, then then press [OK]. press [OK]. SP (2Hr) SP (2Hr) P l a y E d i t NOV/21/07 11:00AM CH12 SP NOV/21/07 11:00AM CH12 SP O v e r w r i t e NOV/21/07...
  • Page 54: Playing Back A Cd-Rw/-R With Mp3 Files

    BASIC PLAYBACK Playing Back a CD-RW/-R with MP3 Files Follow steps 1 to 2 in “Direct Playback” on page 51. Press [OPEN/CLOSE A] to close the STANDBY-ON disc tray. It may take a while to load SOURCE DTV/TV DISPLAY OPEN/CLOSE OPEN/CLOSE the disc completely.
  • Page 55: Using The Title / Disc Menu

    BASIC PLAYBACK Using the Title / Disc Menu Pause Press [DVD] first. 1) During playback, press [PAUSE F]. DVD or video CD with PBC function may contain a title Playback will be paused and sound will be muted. list, which describes the contents of the disc, or a disc menu, which guides you through the available functions in the disc.
  • Page 56: Special Playback

    SPECIAL PLAYBACK Skipping TV Commercials During Resume Playback Playback You can play back from where you stopped playing back the disc last. Press [DVD] first. You can skip TV commercials to enjoy the recorded 1) During playback, press [STOP C]. programs without interrupting.
  • Page 57: Rapid Playback

    SPECIAL PLAYBACK Rapid Playback Slow Forward / Slow Reverse Playback Rapid playback function is available only during Press [DVD] first. playback. 1) During playback, press [PAUSE F]. Then press This function is available only on discs recorded in the [FFW D] or [REW E]. Dolby Digital format, and plays back in a slightly faster/ Every time you press [FFW D] or [REW E], slower speed while keeping the sound quality just as...
  • Page 58: Zoom

    SPECIAL PLAYBACK Zoom Marker Setting Press [DVD] first. 1) During playback, press [DISPLAY]. This feature allows you to assign a specific point on a disc to be called back later. 2) Use [{ / B] to select , then press [OK]. Press [DVD] first.
  • Page 59: Search

    SEARCH Title / Chapter Search Track Search Using [PREV H] / [NEXT G] Using [PREV H] / [NEXT G] Press [DVD] first. Press [DVD] first. 1) During playback, press [NEXT G] to skip the 1) During playback, press [NEXT G] to skip the current track/file and move to the next.
  • Page 60: Time Search

    SEARCH Time Search Press [DVD] first. 1) During playback, press [DISPLAY]. 2) Use [{ / B] to select , then press [OK]. e.g.) DVD-video 0:00:00 DVD-Video e.g.) audio CD 0:00:00 Audio CD The number next to will be highlighted. To move to the number next to , press [B].
  • Page 61: Repeat / Random / Program Playback

    REPEAT / RANDOM / PROGRAM PLAYBACK Repeat Playback Random Playback Available repeat function may vary depending the discs. Press [DVD] first. You can play back a disc randomly instead of playing 1) During playback, press [DISPLAY]. back in the original order. Press [DVD] first.
  • Page 62: Program Playback

    REPEAT / RANDOM / PROGRAM PLAYBACK Program Playback You can program the disc to play back in your desired order. Press [DVD] first. 1) Press [SETUP]. 2) Use [K / L] to select “CD Playback Mode”, then press [OK]. “CD Playback Mode” menu will appear. 3) Use [K / L] to select “Program Play”, then press [OK].
  • Page 63: Selecting The Format Of Audio And Video

    SELECTING THE FORMAT OF AUDIO AND VIDEO You can select the format of audio and video as you prefer depending on the contents of the disc you are playing back. Switching Subtitles Switching Audio Soundtrack DVD-video may have subtitles in 1 or more languages. When playing back a DVD-video recorded with 2 or more Available subtitle languages can be found on the disc soundtracks (these are often in different languages), you...
  • Page 64: Switching Virtual Surround System

    SELECTING THE FORMAT OF AUDIO AND VIDEO Switching Virtual Surround System Switching Camera Angles Some DVD-video have scenes shot from 2 or more angles. Angle information should be on the disc case if You can enjoy stereophonic virtual space through your the disc contains multi-angle scenes.
  • Page 65: Information On Disc Editing

    INFORMATION ON DISC EDITING Guide to a Title List Editing Discs Title list allows you to check the titles recorded on the You can edit discs for the following items. Be sure that disc easily. You can choose a title to play back from this once you edit titles, they will not remain as original.
  • Page 66: Editing Discs

    EDITING DISCS Deleting Titles You can delete titles which you do not need anymore. Use [K / L] to select “Edit”, then Please be advised that the titles once deleted cannot be press [OK]. brought back to the disc. For DVD+RW/DVD-RW, when the last recorded title in the title list is deleted, the available disc space to record on SP (2Hr) P l a y...
  • Page 67: Putting Names On Titles

    EDITING DISCS Putting Names on Titles You can put title names on the titles and change the names from this menu. Use [K / L] to select “Yes”, then press [OK]. STANDBY-ON Edit Title Name SOURCE DTV/TV DISPLAY OPEN/CLOSE .@/: .@/: MY FAVORITE 0:00:59...
  • Page 68: Setting Chapter Marks

    EDITING DISCS Setting Chapter Marks You can put chapter marks in each title. Once a chapter is Follow steps 1 to 3 in “Deleting marked, you can use it for the chapter search feature. Titles” on page 66 to display “Edit” menu.
  • Page 69: Clearing Chapter Marks

    EDITING DISCS Clearing Chapter Marks Follow steps 1 to 3 in “Deleting Titles” on page 66 to display “Edit” STANDBY-ON menu. SOURCE DTV/TV DISPLAY OPEN/CLOSE Use [K / L] to select “Chapter Mark”, then press [OK]. .@/: Submenu will appear. Use [PREV H] / [NEXT G] to select PQRS WXYZ...
  • Page 70 EDITING DISCS Clearing Chapter Marks (cont’d) To delete all chapter marks: Follow steps 1 to 3 in “Deleting STANDBY-ON Titles” on page 66 to display “Edit” menu. SOURCE DTV/TV DISPLAY OPEN/CLOSE Use [K / L] to select “Chapter Mark”, .@/: then press [OK].
  • Page 71: Hiding Chapters

    EDITING DISCS Hiding Chapters You can hide chapters from the title list. Follow steps 1 to 3 in “Deleting Hidden chapters are skipped during playback. Titles” on page 66 to display “Edit” menu. STANDBY-ON Use [K / L] to select “Current Chapter”, then press [OK].
  • Page 72: Setting Pictures For Thumbnails

    EDITING DISCS Setting Pictures for Thumbnails You can set your desired scene as a thumbnail for each Follow steps 1 to 3 in “Deleting title. Titles” on page 66 to display “Edit” menu. Use [PREV H], [NEXT G], [E], STANDBY-ON [D], [PAUSE F] and [PLAY B] to decide the picture you want to select SOURCE...
  • Page 73: Dividing A Title

    EDITING DISCS Dividing a Title Follow steps 1 to 3 in “Deleting You can divide one title into 2 new titles. Titles” on page 66 to display “Edit” menu. Use [PREV H], [NEXT G], [E], STANDBY-ON [D], [PAUSE F] and [PLAY B] to decide the point at which you will SOURCE DTV/TV...
  • Page 74: Putting Name On Disc

    EDITING DISCS Putting Name on Disc You can put a name on the disc and change it from this Press [STOP C] if you are playing back a disc. menu. Press [DVD] first. Press [SETUP]. STANDBY-ON SOURCE DTV/TV DISPLAY OPEN/CLOSE Use [K / L] to select “Disc Edit”, then press [OK].
  • Page 75: Setting Or Releasing Disc Protect

    EDITING DISCS Setting or Releasing Disc Protect To prevent accidental editing, or erasing the titles, you Follow steps 1 to 2 in “Putting Name can protect them. on Disc” on page 74 to display “Disc Edit” menu. Use [K / L] to select “Disc Protect STANDBY-ON OFF ON”, then press [OK].
  • Page 76 EDITING DISCS Setting or Releasing Disc Protect (cont’d) Releasing disc from protect: STANDBY-ON Follow steps 1 to 2 in “Putting Name SOURCE DTV/TV DISPLAY OPEN/CLOSE on Disc” on page 74 to display “Disc Edit” menu. .@/: Use [K / L] to select “Disc Protect ON OFF”, then press [OK].
  • Page 77: Erasing Disc

    EDITING DISCS Erasing Disc Press [STOP C] if you are playing back a disc. You can erase all titles on a disc. Follow steps 1 to 2 in “Putting Name STANDBY-ON on Disc” on page 74 to display “Disc Edit” menu. SOURCE DTV/TV DISPLAY OPEN/CLOSE...
  • Page 78: Making Edits Compatible

    EDITING DISCS Making Edits Compatible Press [STOP C] if you are playing back a disc. If you have added or deleted chapters, or made chapters hidden, you must perform “Make Edits Compatible” to see those effects on other unit. Follow steps 1 to 2 in “Putting Name on Disc”...
  • Page 79: List Of Setting

    LIST OF SETTING The following table is the contents which you can set and the default setting. Refer to the following table for useful operation. Setup Items (highlight is the default) Contents Video Input E1 (Rear) Set the video input type for the external input. Video In Page 43 S-Video In...
  • Page 80 LIST OF SETTING Setup Items (highlight is the default) Contents Language Disc Menu Set the language for disc menu. English Page 84 French Spanish Other Audio Set the language for audio. Original Page 84 English French Subtitle Set the language for subtitles. Page 84 English French...
  • Page 81: Setups

    SETUPS Required Setting Press [STOP C] if you are playing back a disc. V-Chip You can set the viewing limitation for the digital TV Press [SETUP]. programs to prevent your children from watching inappropriate programs. This feature is available only after the digital TV ratings have been downloaded.
  • Page 82: Playback

    SETUPS Playback Press [STOP C] if you are playing back a disc. STANDBY-ON Press [SETUP]. SOURCE DTV/TV DISPLAY OPEN/CLOSE OPEN/CLOSE .@/: .@/: Use [K / L] to select “Playback”, then press [OK]. PQRS PQRS WXYZ WXYZ Setup Required Settings SPACE SPACE CLEAR CLEAR...
  • Page 83 SETUPS Playback (cont’d) Dynamic Range Control (Default : ON) Disc Audio (Default: Digital Out) Set to “ON” to compress the range between soft and loud sounds. Choose the appropriate audio setting for your external device. Use [K / L] to select a setting, then press [OK]. It will only affect a disc playback.
  • Page 84 SETUPS Playback (cont’d) Still Mode (Default : Auto) Subtitle (Default : OFF) Set the subtitle language. Select “Auto” usually. Use [K / L] to select a setting, then press [OK]. Use [K / L] to select a setting, then press [OK]. Language - Subtitle Video - Still Mode Auto...
  • Page 85 SETUPS Playback (cont’d) Parental Lock (Default: OFF) A password has not been set yet. Some DVD-video feature a parental lock level. Playback Use [K / L] to select “Yes”. Use [the Number buttons] will stop if the ratings exceed the levels you set, it will to enter a new password except for 4737, then press require you to enter a password before the disc will [OK].
  • Page 86: Display

    SETUPS Display Use [K / L] to select a desired item, then press [OK]. STANDBY-ON Display VCR DVD SOURCE DTV/TV DISPLAY OPEN/CLOSE OSD Language English Angle Icon Screen Saver 10 minutes .@/: FL Dimmer Bright PQRS WXYZ Selection menu will appear. SPACE CLEAR OSD Language (Default : English)
  • Page 87: Vcr Functions

    VCR FUNCTIONS Playback Recording Press [VCR] first. 1) Press [STANDBY-ON y] on the remote control or the front panel of the unit. Before recording, make sure: When you are playing back a cassette tape, turn the TV • The desired channel is selected by pressing on and be sure to select the input to which the unit is [the Number buttons] or [CHANNEL ] on the...
  • Page 88: One-Touch Timer Recording (Otr)

    VCR FUNCTIONS One-touch Timer Recording (OTR) Index Search This feature allows you to set the recording length simply An index mark will be assigned at the beginning of each by pressing [REC I] on the remote control. recording you make. You may skip to a specific marked point by following the steps below.
  • Page 89: Time Search

    VCR FUNCTIONS Time Search Other Operations This feature allows you to go to a specific point on a Press [VCR] first. cassette tape by entering the exact amount of time you wish to skip in order to reach the point. Fast forward: When the unit is in stop mode, press [D] to fast forward Press [VCR] first.
  • Page 90: Troubleshooting

    TROUBLESHOOTING Before requesting service for this unit, check the table below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation. Symptom Remedy The power does not turn on.
  • Page 91 TROUBLESHOOTING Symptom Remedy There is no picture. • If the main menu appears on the TV screen, press [RETURN] to exit. • Check if the progressive scan mode is set correctly according to your TV (page 83). Picture noise appears. •...
  • Page 92 TROUBLESHOOTING Symptom Remedy “Repairing” appears on the TV screen. • If there is a power failure or unplugging during recording, finalizing, formatting or editing (even after “Repairing” disappears), a repairing process will begin automatically just after turning the unit on again. Repairing It may take several minutes up to about several hours.
  • Page 93 TROUBLESHOOTING Error message Cause Solution Disc Error • Unplayable disc is inserted in the unit. • Insert the standardized disc which bear — Please eject the disc. — • The disc is upside down. the marks on page 50. Playback feature may not be available on •...
  • Page 94: Frequently Asked Questions

    TROUBLESHOOTING Frequently Asked Questions – Can I record to CD-RW/-R? No, this unit records only DVD. – Can I play back DVD-video that is bought in another Possible when the region code of the disc is 1 and All. country? –...
  • Page 95: Language Code

    LANGUAGE CODE Language Code Language Code Language Code Abkhazian 4748 Hungarian 5467 Russian 6467 Afar 4747 Icelandic 5565 Samoan 6559 Afrikaans 4752 Indonesian 5560 Sangho 6553 Albanian 6563 Interlingua 5547 Sanskrit 6547 Amharic 4759 Interlingue 5551 Scots Gaelic 5350 Arabic 4764 Inupiak 5557...
  • Page 96: Glossary

    GLOSSARY Analog Audio PCM (pulse code modulation) An electrical signal that directly represents sound. The most common system of encoding digital audio, Compare this to digital audio which can be an electrical found on CD and DAT. Excellent quality, but requires a signal, but is an indirect representation of sound.
  • Page 97: Specifications

    SPECIFICATIONS General DVD+RW/+R, DVD-RW/-R, DVD-video, CD-DA, Video CD, CD-RW/-R System VHS cassette tape VCR video heads Four heads Power requirements 120V AC +/-10%, 60Hz +/-5% Power consumption 30W (standby: 3.3W) Dimensions (width x height x depth) x 10 inches (435 x 99.5 x 260mm) Weight 9.5 lbs.
  • Page 98: Español

    ESPAÑOL Discos Reproducibles Disco Grabable Este aparato es compatible con la reproducción de los Este aparato puede grabar a DVD+RW, DVD+R, DVD-RW siguientes discos y archivos. y DVD-R. Los discos DVD+R/DVD-R pueden ser grabados sólo una Discos reproducibles Logotipos vez. Los discos DVD+RW/DVD-RW pueden ser grabados y borrados muchas veces.
  • Page 99 ESPAÑOL Conexión Básica 1) Desconecte el cable de alimentación de su televisor del tomacorriente de CA. 2) Efectúe la conexión básica ilustrada más abajo. parte trasera de este aparato DVD/VCR DVD/VCR DIGITAL AUDIO S-VIDEO COMPONENT S-VIDEO IN --- AUDIO --- OUT VIDEO OUT AUDIO OUT S-VIDEO...
  • Page 100 ESPAÑOL Grabación Básica Configuración Inicial Cuando usted encienda este aparato por primera vez Presione [OPEN/CLOSE A] para abrir necesita seguir estos pasos. la bandeja de discos e insertar su Presione [STANDBY-ON y y ]. disco con el rótulo aupntando hacia arriba.
  • Page 101 ESPAÑOL Grabación con Temporizador Usted puede programar el equipo para que grabe hasta 8 programas, con un mes de anticipación. También hay disponibles grabaciones de programas diarias o semanales. Antes de grabar, asegúrese de que • Antes de establecer una programación del temporizador configure el reloj. •...
  • Page 102: Limited Warranty

    LIMITED WARRANTY FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows: DURATION: PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase.
