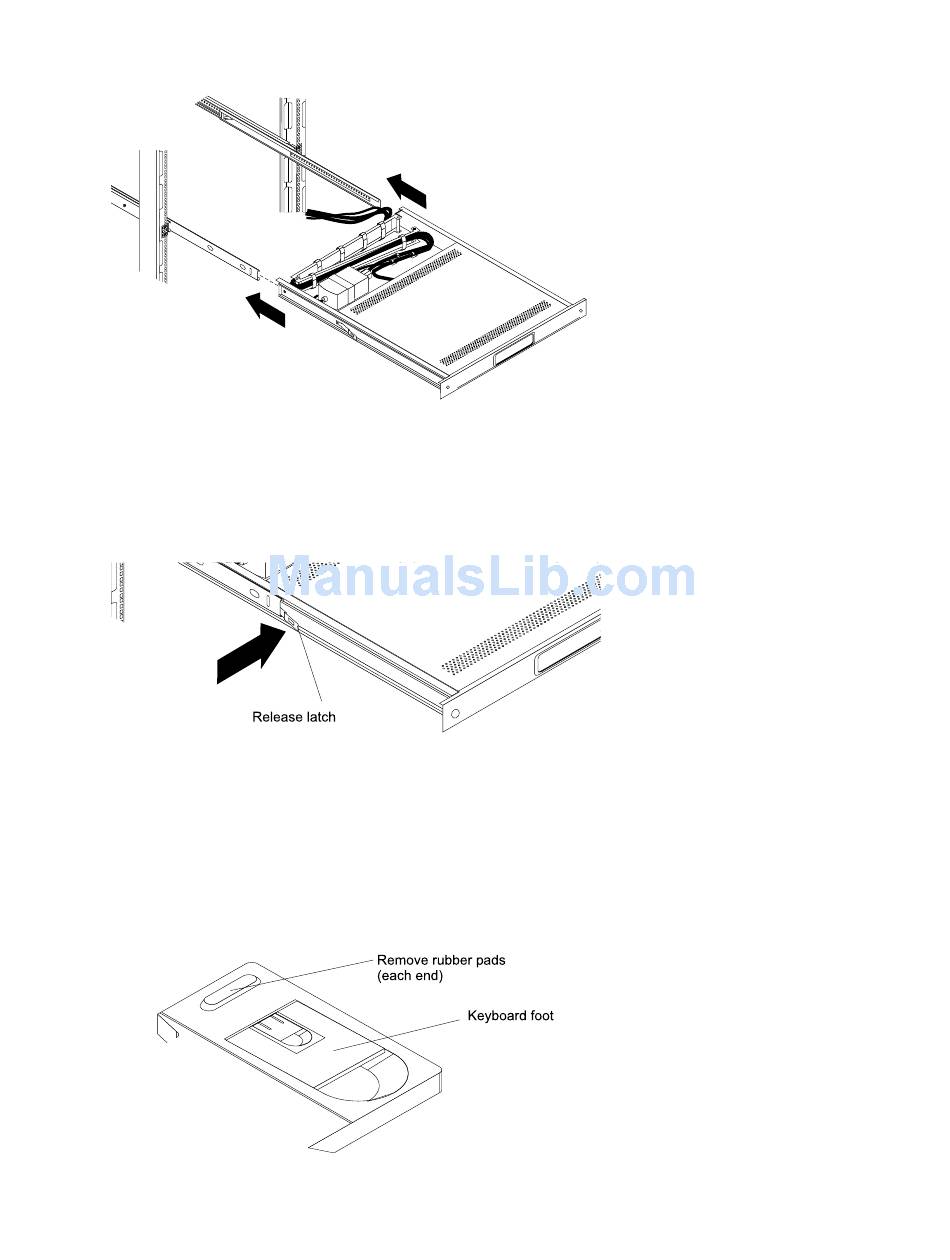

9. Carefully slide the flat-panel monitor and keyboard tray into the ball-bearing assemblies in the rails.
10. Press the release latches and push the flat-panel monitor and keyboard tray completely into the rack.
There will be resistance initially as the ball-bearing assemblies align between the inner and outer
rails. Pull the tray out halfway, then push it back in to seat the tray in the rails. Do this a few times
until the tray moves smoothly in the rails.
Attention:
The video cable is connected to the flat-panel monitor. When you install the tray in the
rack cabinet, make sure you do not pinch or cut the video cable.
11. Push the tray into the rack and tighten the four rear slide-rail bracket screws.
12. Place the keyboard on a stable flat surface and remove the two adhesive rubber pads at each end of
the bottom of the new keyboard. (If you leave the rubber pads on the keyboard, they will extend into
the space below the tray.)
Attention:
Do not extend the keyboard feet. The flat-panel monitor screen might be damaged if the
feet are extended when the monitor is closed.
Chapter 2. Installing the 7316-TF3 17-Inch Flat Panel Rack-Mounted Monitor and Keyboard
7
