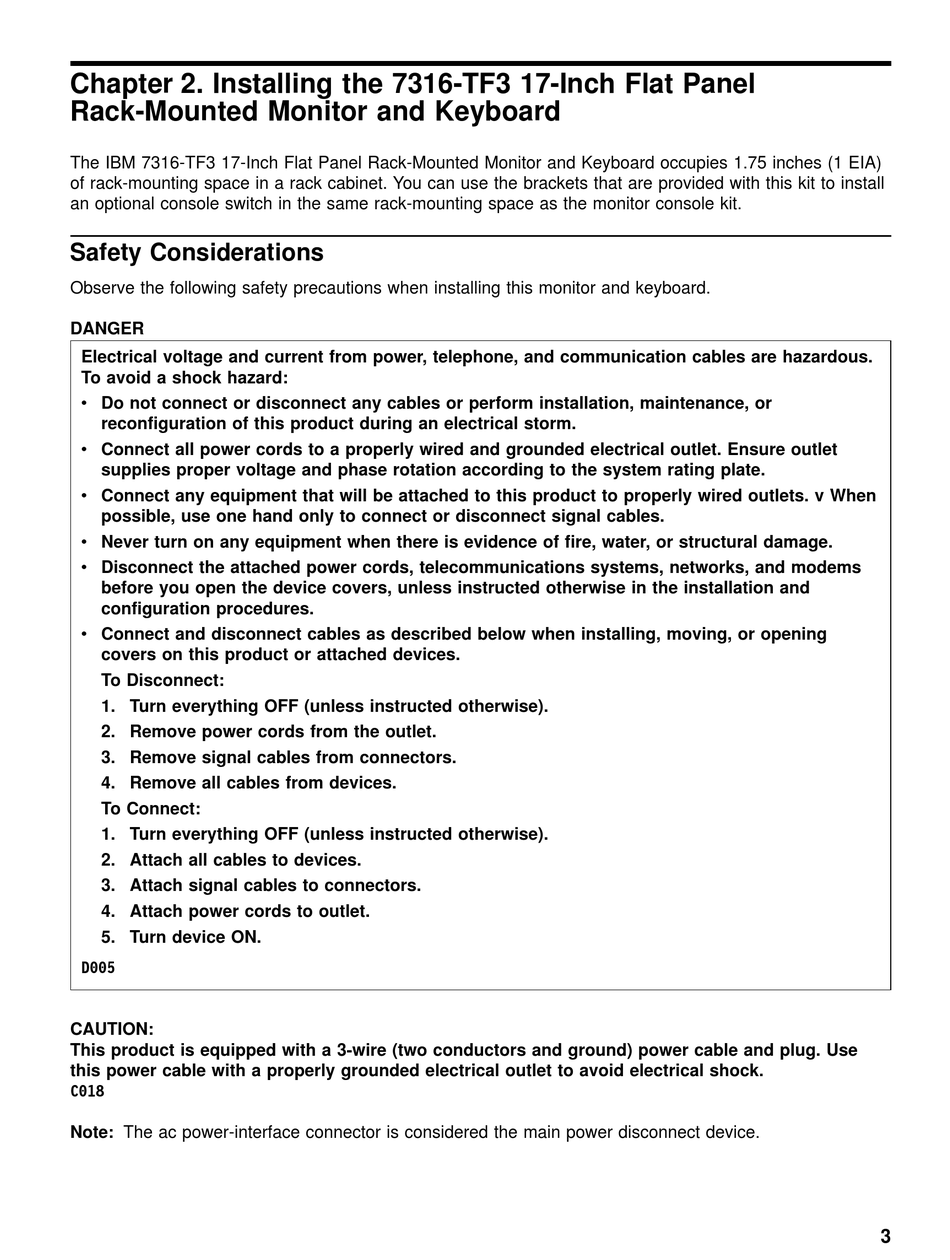

Chapter 2. Installing the 7316-TF3 17-Inch Flat Panel
Rack-Mounted Monitor and Keyboard
The IBM 7316-TF3 17-Inch Flat Panel Rack-Mounted Monitor and Keyboard occupies 1.75 inches (1 EIA)
of rack-mounting space in a rack cabinet. You can use the brackets that are provided with this kit to install
an optional console switch in the same rack-mounting space as the monitor console kit.

Safety Considerations

Observe the following safety precautions when installing this monitor and keyboard.
DANGER
Electrical voltage and current from power, telephone, and communication cables are hazardous.
To avoid a shock hazard:
v Do not connect or disconnect any cables or perform installation, maintenance, or
reconfiguration of this product during an electrical storm.
v Connect all power cords to a properly wired and grounded electrical outlet. Ensure outlet
supplies proper voltage and phase rotation according to the system rating plate.
v Connect any equipment that will be attached to this product to properly wired outlets. v When
possible, use one hand only to connect or disconnect signal cables.
v Never turn on any equipment when there is evidence of fire, water, or structural damage.
v Disconnect the attached power cords, telecommunications systems, networks, and modems
before you open the device covers, unless instructed otherwise in the installation and
configuration procedures.
v Connect and disconnect cables as described below when installing, moving, or opening
covers on this product or attached devices.
To Disconnect:
1. Turn everything OFF (unless instructed otherwise).
2. Remove power cords from the outlet.
3. Remove signal cables from connectors.
4. Remove all cables from devices.
To Connect:
1. Turn everything OFF (unless instructed otherwise).
2. Attach all cables to devices.
3. Attach signal cables to connectors.
4. Attach power cords to outlet.
5. Turn device ON.
D005
CAUTION:
This product is equipped with a 3-wire (two conductors and ground) power cable and plug. Use
this power cable with a properly grounded electrical outlet to avoid electrical shock.
C018
Note: The ac power-interface connector is considered the main power disconnect device.
