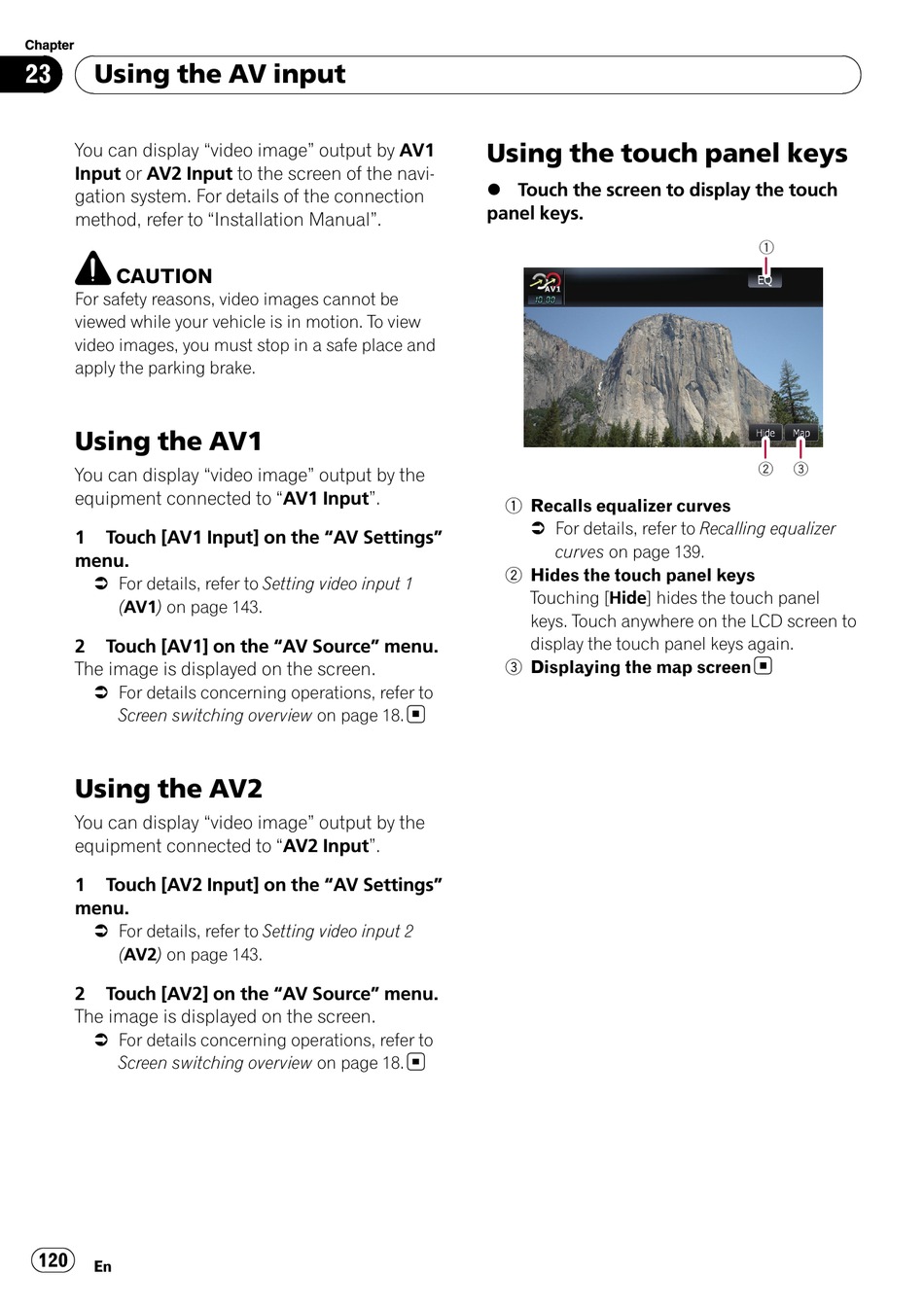

Using the AV input

You can display "video image" output by AV1
Input or AV2 Input to the screen of the navi-
gation system. For details of the connection
method, refer to "Installation Manual".
CAUTION
For safety reasons, video images cannot be
viewed while your vehicle is in motion. To view
video images, you must stop in a safe place and
apply the parking brake.

Using the AV1

You can display "video image" output by the
equipment connected to "AV1 Input".
Touch [AV1 Input] on the "AV Settings"
1
menu.
= For details, refer to Setting video input 1
(AV1) on page 143.
Touch [AV1] on the "AV Source" menu.
2
The image is displayed on the screen.
= For details concerning operations, refer to
Screen switching overview on page 18.

Using the AV2

You can display "video image" output by the
equipment connected to "AV2 Input".
Touch [AV2 Input] on the "AV Settings"
1
menu.
= For details, refer to Setting video input 2
(AV2) on page 143.
Touch [AV2] on the "AV Source" menu.
2
The image is displayed on the screen.
= For details concerning operations, refer to
Screen switching overview on page 18.
120
En

Using the touch panel keys

% Touch the screen to display the touch
panel keys.
1 Recalls equalizer curves
= For details, refer to Recalling equalizer
curves on page 139.
2 Hides the touch panel keys
Touching [Hide] hides the touch panel
keys. Touch anywhere on the LCD screen to
display the touch panel keys again.
3 Displaying the map screen
1
2 3
