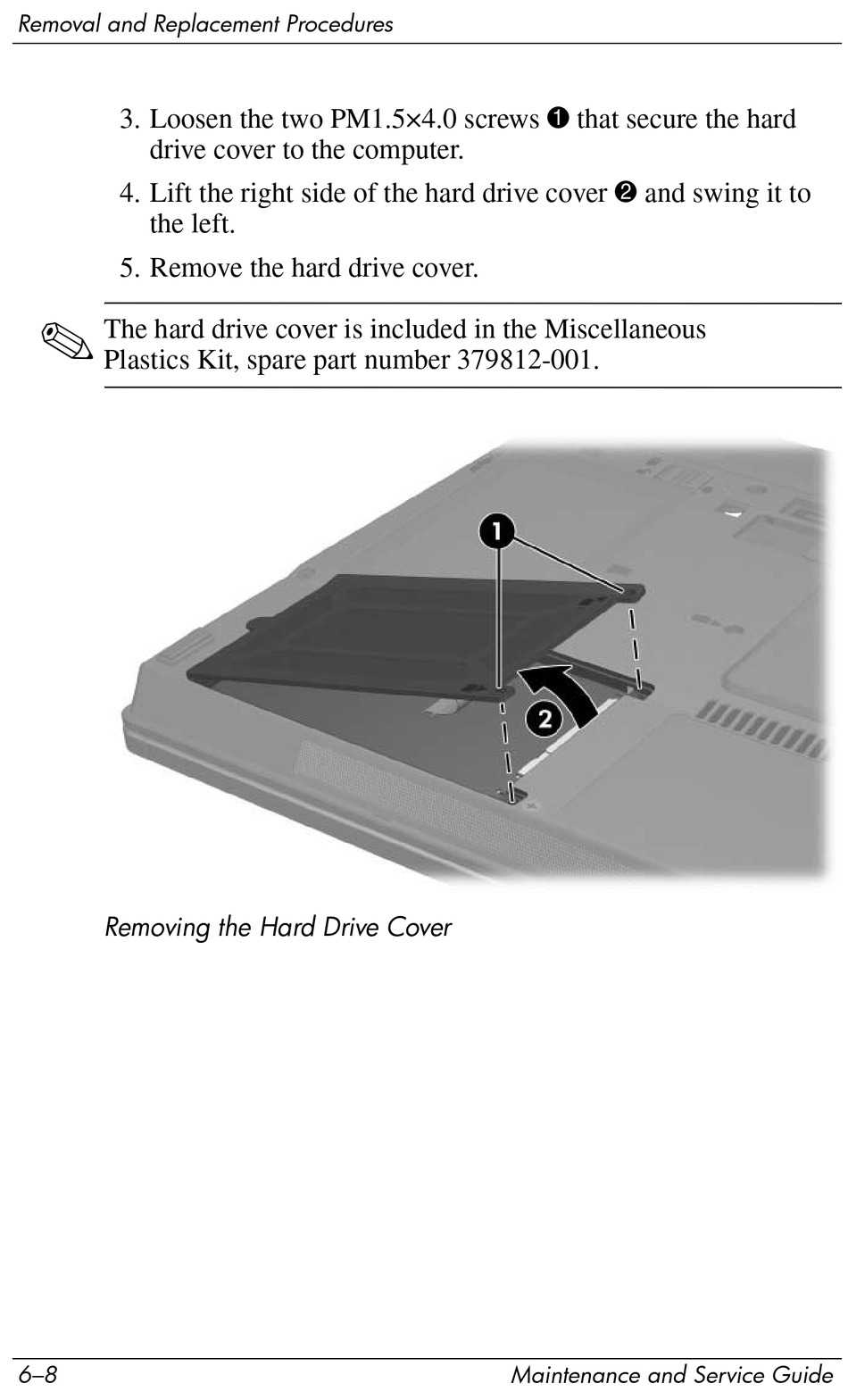

Removal and Replacement Procedures
3. Loosen the two PM1.5×4.0 screws 1 that secure the hard
drive cover to the computer.
4. Lift the right side of the hard drive cover 2 and swing it to
the left.
5. Remove the hard drive cover.
✎
The hard drive cover is included in the Miscellaneous
Plastics Kit, spare part number 379812-001.
Removing the Hard Drive Cover
6–8 Maintenance and Service Guide
