3. Insert the riser card with the attached PCI card into the PCI slot on the server board.
Press firmly on the riser card until it is fully seated. Press down on the riser card—
do not press down on the PCI card.
Caution: Press the riser card straight down into the slot. Tipping the riser card while installing it
into the slot may damage the riser card or slot on the server board.
4. Use the screw removed in Step 1 to secure the riser card assembly to the chassis.
®
Intel Server Board S5500BC User's Guide

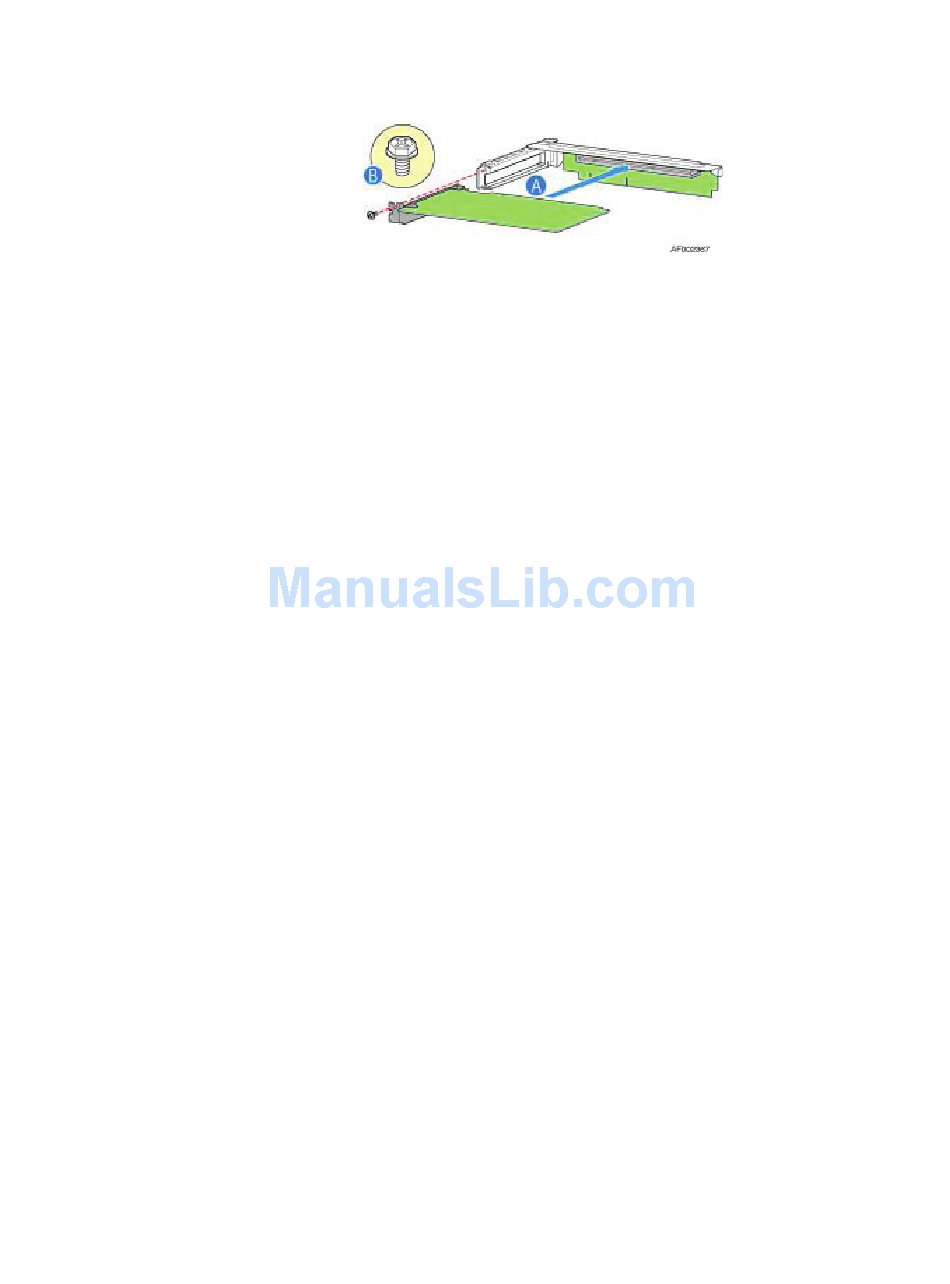

Figure 16. Installing a PCI Card in a Riser Card

21
