Configuration Jumpers

J8C1: BMC Force Update
J2D1: Password Clear
J2D2: CMOS Clear
®
Intel Server Board S5500BC User's Guide

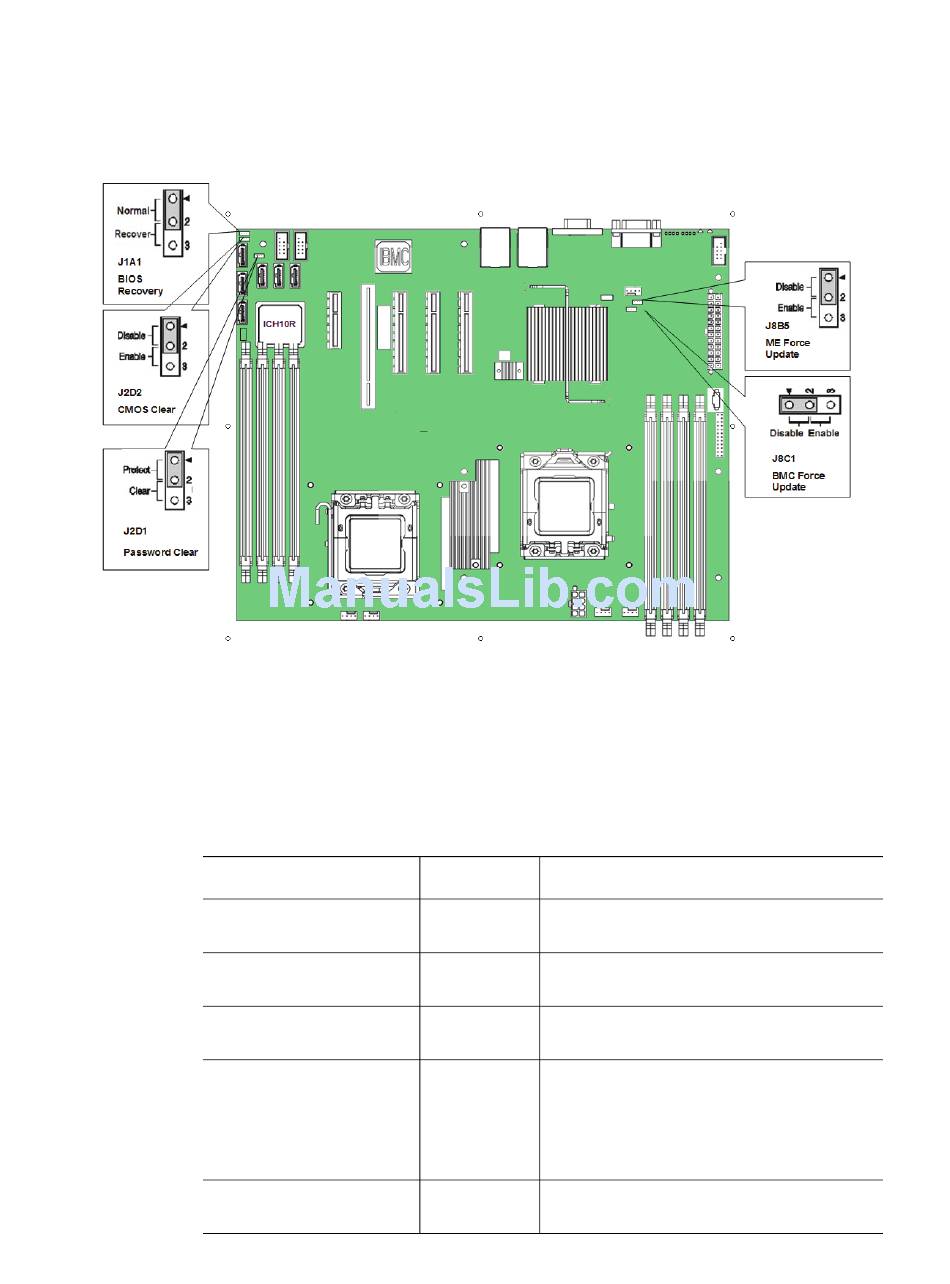

Figure 3. Configuration Jumper Location
Table 2. Configuration Jumper [J4A1]
Jumper Name
1-2
2-3
1-2
2-3
1-2
Pins What happens at system reset...
BMC Firmware Force Update Mode -
Disabled (Default)
BMC Firmware Force Update Mode -
Enabled
These pins should have a jumper in place
for normal system operation. (Default)
If these pins are jumpered, the
administrator and user passwords are
cleared on the next reset.
NOTE: These pins should not be jumpered
for normal operation.
These pins should have a jumper in place
for normal system operation. (Default)
5
