Remove the Bezel Assembly

The bezel assembly consists of two parts, an inner bezel door and an outer bezel door. Both parts
comprise the bezel assembly in the pedestal configuration. In the rack configuration, only the inner
bezel door is used.
NOTE
For a rack configuration or chassis on its side, position the chassis hanging over
the edge of a table or workbench before removing the bezel.
To remove the bezel assembly:
1. Release the two plastic tabs (letter "A") on the left side of the bezel assembly to disengage the
tabs.
2. Rotate the bezel assembly (letter "B") no more than 40 degrees outward.
3. At a 40-degree angle, push the bezel assembly away from the chassis (letter "C"). If the bezel
assembly does not immediately disconnect from the chassis, then tap the left-hand side of the
bezel assembly to disengage the bezel hooks on the right-hand side of the chassis.
CAUTION
Do not rotate the bezel assembly more than 40 degrees or you will damage the
bezel hooks on the right-hand side of the bezel assembly.
6

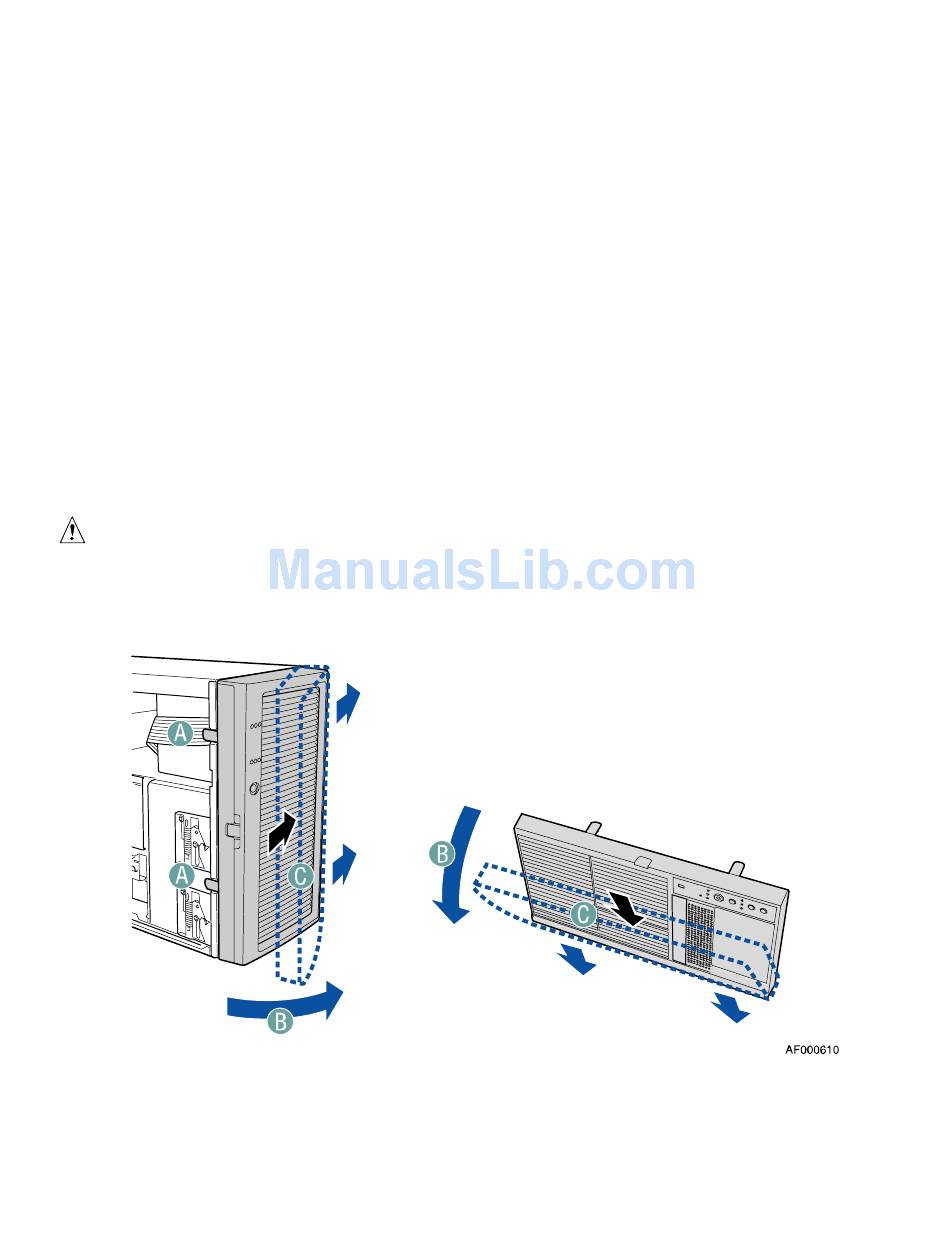

Figure 2. Removing Bezel Assembly
