Step 3—Installing rails to the rack

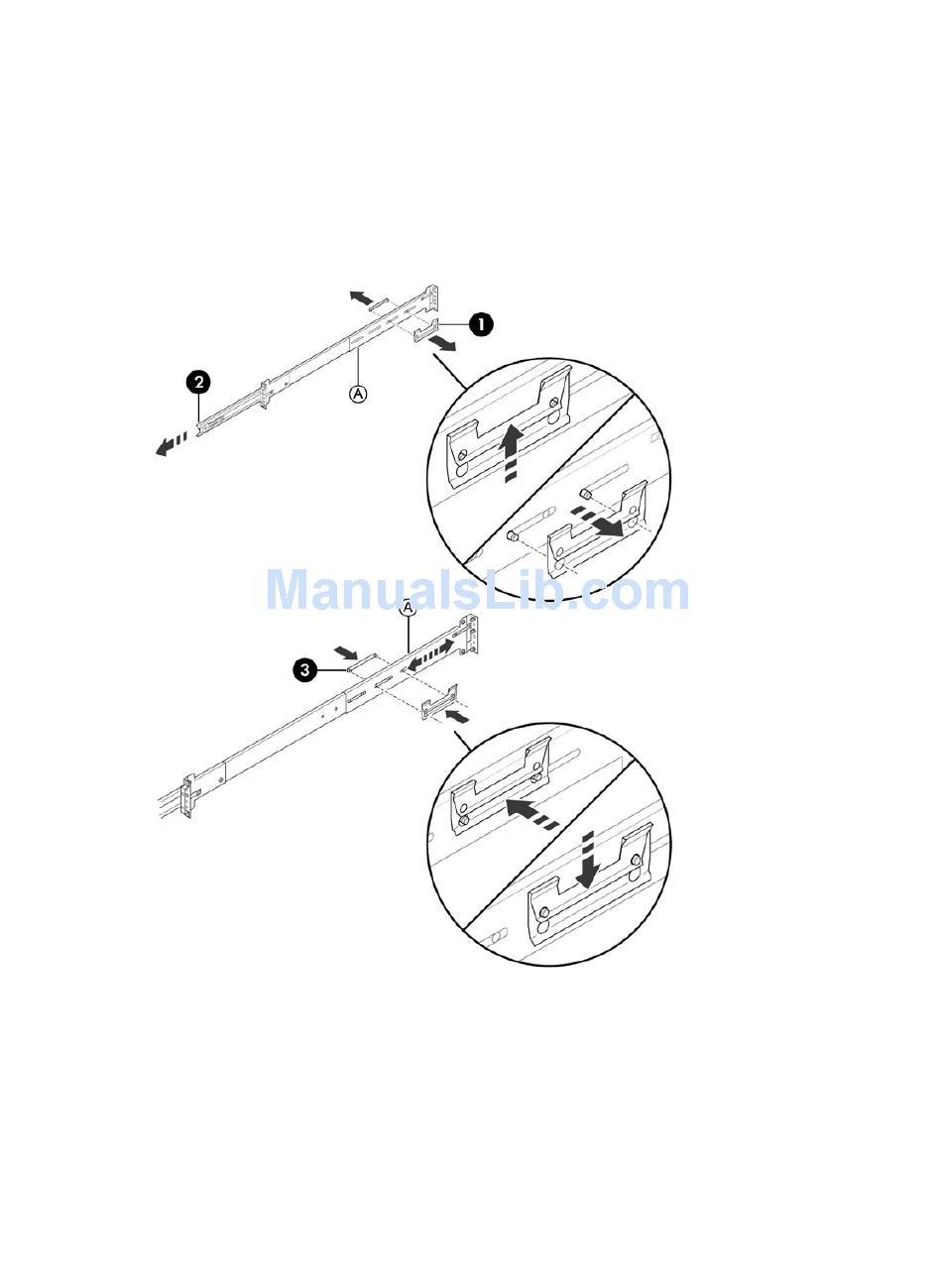

(Optional) Adjusting slides to fit shallower or deeper third-party racks
1.
Remove the slide adjustment attachment (1).
2.
Adjust the rail to the desired length (2).
3.
Insert the slide adjustment attachment (3).
Figure 5
6
Sliding rack-mount kit installation
Adjusting slides
ENWW
