User's Manual

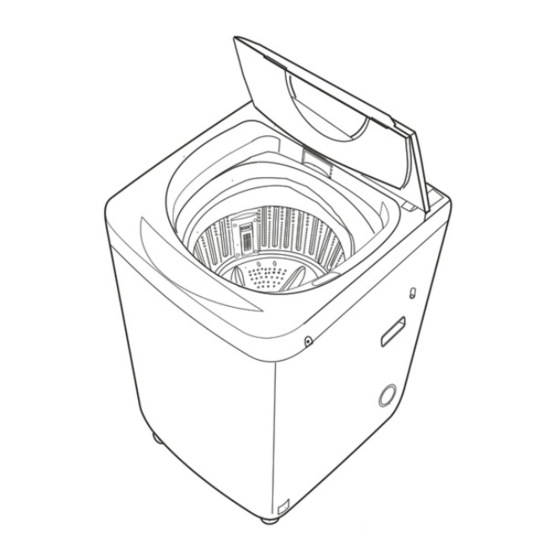

Fully Automatic Washing Machine
This manual is for
HWM60-728
HWM65-728
Please read this manual carefully before using.
Retain it for future reference.
Index
Safety precautions ...............2
Packing list ...........................4
Names of the parts ...............4
adjustment............................5
washing ................................9
Use the operation buttons .... 11
Disposal after washing .......
to question..........................
Spec cation .......................
13
15
16
0030808120
Advertisement
Table of Contents
Related Manuals for Haier HWM65-728
Summary of Contents for Haier HWM65-728
-
Page 1: Table Of Contents
Preparation before washing ........9 Use the operation buttons ..11 Disposal after washing ..Trouble-shooting Answer to question......Spec cation ....... This manual is for HWM60-728 HWM65-728 Please read this manual carefully before using. Retain it for future reference. 0030808120... -
Page 2: Safety Precautions
Safety precautions Meaning and description of the symbols Contents marked with that symbol are related to the safety of the product and the personal safety of the users. Please operate in strict conformity to the contents, otherwise it may cause damage of the machine or injure the personal safety Warning sign of the user. - Page 3 In case the washing machine is installed on ground with carpet, do not block the ventilation hole with carpet. Do not put the machine at damp place like the bathroom. Never wash it with water. Do not put wet laundries on the control panel. Do not wash water-proof laundries like the raincoat, bike covers etc.
-
Page 4: Packing List
Packing list Fully automatic Water inlet hose Bottom plate Tapping screws User’s manual washing machine (One Package) Warranty card Names of the parts Top lid component Detergent box Control panel seat Outer tub cover Lint filter(2 pieces) Balance ring Liquid whitener inlet Inner tub Hanging hole Filter cover(2 pieces) -
Page 5: Installation And Adjustment
Installation and adjustment Please install and adjust the machine according to the requirement of the manual. It is very important to your security and correct operating the machine. After opening the package, please lean the washing machine gently down on soft items (like towel cloth,blanket, etc.). - Page 6 Confirm the water faucet It is required that the front end shall be longer than 10mm. The exit end face of the faucet shall be flat and smooth.If not please file it to avoid leakage. water faucet, suitable water faucet, not suitable The exit end face of the faucet Connection between the water inlet hose jointer and the water faucet...
-
Page 7: Connection Between The Water Inlet Hose And The Washer
Connection between the water inlet hose and the washer 1.Do not take off the water absorption cushion. Please check if the cushion is dropped or damaged before nut of the water each usage. If it happens please contact our inlet hose after-sale department immediately. -
Page 8: How To Change The Direction Of The Drain Hose
How to change the direction of the drain hose 1.Dismantle the back cover of the washing machine. 2.Take off the drain hose frame. Put down the drain hose , put the drain hose into the cabinet, take off the drain hose bushing(As indicated in Figure 1). Drain hose Drain outlet Drain hose... -
Page 9: Preparation Before Washing
Preparation before washing Connect the water inlet hose. Open the water faucet. Con rm that the washing machine is earthed reliably. Then insert the power plug into the receptacle. The earth terminal shall not link to gas pipeline and faucet water pipeline. Put down the drain hose. - Page 10 Figure 2(HWM65-728) Please pay attention to cleaning the detergent box in time. How to use the softener (only applicable for HWM65-728) The usage and dose of the softener as per the speci cations of softener. Figure 1 Turn the inner tub,you will find a softener inlet as the figure 1,open the cover,put the softener into the inlet as the figure 2.Before washing,close...
-
Page 11: Use The Operation Buttons
Use the operation buttons Push the “POWER ON/OFF” button to switch on the power. On: indicate the program about to run,or indicate the selected mode or indicate the water level When the power is on, push it again to switch off the power. Flashing: indicate the running program Push the “POWER ON/OFF”... - Page 12 Push the “ ” button to switch on the power It has the special power resume function. In the case of power failure or the power plug is loose during running, the machine can save the running program, and resume the program after the power supply is recovered.
-
Page 13: Disposal After Washing
Clean the detergent box and set it on the control panel seat( applicable for the model HWM65-728): The method of dismantle: Push it up The method of install : install it upwards and aslant and gently. - Page 14 Dismantle Detergent box Cleaning the lint lter A(applicable for the model HWM65-728) and the lint filter B(applicable for the model HWM60-728): Push down the spring piece at the top of the lint lter to make the claws out of the lter cover, and then pull out the lint lter to get it down.(figure 1)
-
Page 15: Trouble-Shooting Answer To Question
Trouble-shooting Answer to question (If there’s breakdown, please pull off the power plug before checking) The following phenomena are not breakdowns sometimes. Please con rm again before sending it to repair. If there are real breakdowns, please come to the special maintenance department or after-sale service department of our company. -
Page 16: Spec Cation
Speci cation EXTRA LOW/16L, LOW/24L, MEDIUM/32L, HWM60-728 HIGH/40L, MAXIMUM/46L Water level / Water quantity (about) EXTRA LOW/21L, LOW/29L, MEDIUM/37L, HWM65-728 HIGH/44L, MAXIMUM/51L Injection pressure 0.03 MPa ~ 1.0 MPa 6.0kg/6.0kg HWM60-728 Washing/spinning capacity 6.5kg/6.5kg...
