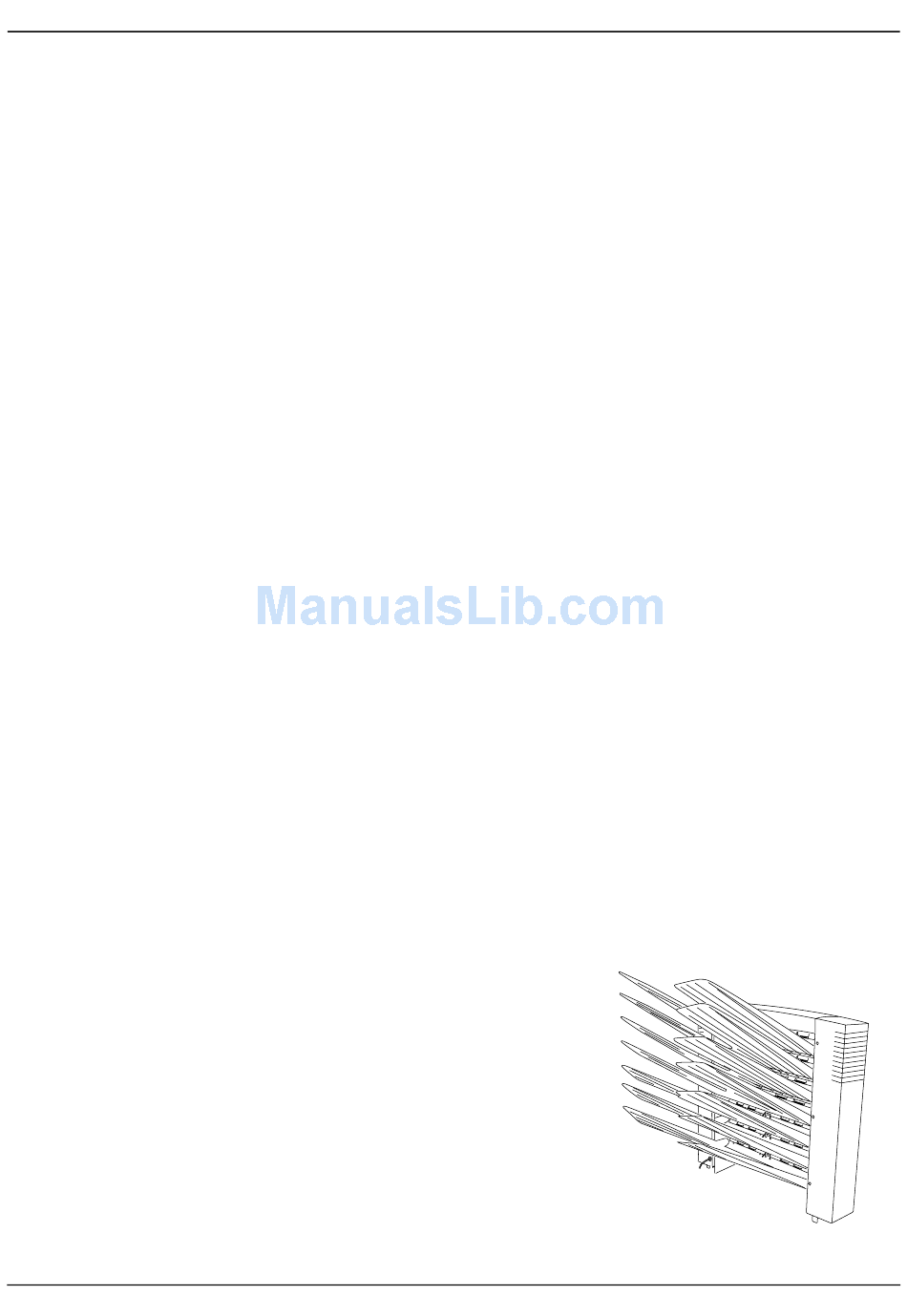

- Page 1 INSTALLATION GUIDE FOR MAILBOX GUIDE D’INSTALLATION DE LA BOÎTE À LETTRES GUÍA DE INSTALACIÓN PARA EL BUZÓN DE CORREO INSTALLATIONSANLEITUNG FÜR MAILBOX GUIDA ALL’INSTALLAZIONE DELLA CASELLA POSTALE 邮箱安装手册 メールボックス設置手順書 MT-710...
-
Page 3: Supplied Parts
F Taptite S binding screw M4 × 25 ....1 When installing the mailbox to a monochrome English G TP screw M3 × 10 .........6 machine, four pieces of (G) are not used. H Tray name label ..........1 I Plate foot F (for monochrome machines)..1 Supplied parts J Taptite S binding screw M4 ×... - Page 4 [Installation procedure] [Carry out steps 1 to 3 when installing 2. Fit the two plate feet V (K) and secure them the mailbox to a full-color machine.] Be sure to turn the MFP main switch off and using two TP screws M3 × 10 (G) for each. disconnect the MFP power plug from the wall Before installing the finisher, carry out the 3.
- Page 5 [Carry out steps 1 to 3 when installing 2. Engage the hook portion (5) of the plate foot 3. Refit the lower front cover (4) to its original the mailbox to a monochrome F (I) in the notch (6) in the finisher frame and position, secure it using the screw (3), and machine.] secure the plate foot using the Taptite S...
- Page 6 4. Remove the front top cover (8) and rear top 5. Fit the pins (10) located at the front and rear of the bottom of the mailbox (A) into the notches (11) cover (9) at the top of the finisher (7) using a located at the front and rear of the top of the finisher (7) as shown in the illustration and attach the flat-blade screwdriver or the like.
- Page 7 6. Secure the front connection portion of the 7. Fit the seven copy eject bins (C) to the ejection section of the mailbox (A) from the lowest bin to mailbox (A) and the finisher (7) with the the highest. mounting plate cover (B) using a TP Taptite While pressing both ends of each copy eject bin (C) to bend it a little, fit the bin at a nearly upright S screw M4 ×...
- Page 8 8. Remove the two screws (15) located as 9. Attach the reinforcing plate (D) to the 10. Connect the signal lines (17) of the mailbox shown in the illustration that secure the side mailbox (A) and the finisher (7) using the two (A) to the connector (18) at the rear part of cover (14) of the mailbox (A), and remove TP screws M3 ×...
- Page 9 11. Insert the MFP power plug to the outlet and turn the MFP main switch on to check the operation. 11. Insérer la fiche d’alimentation du MFP dans la prise et mettre l’interrupteur principal du MFP sur la position de marche pour vérifier le fonctionnement.
- Page 10 English NOTICE This accessory is for use only with the following Applicant's Listed Machine. Refer to the supplied guide to install the accessory in the field. Model ： DF-710 Français AVIS Cet accessoire est utilisable uniquement avec le copieur figurant dans la liste du demandeur suivant. Se reporter au guide fourni pour installer l'accessoire dans le champ.
- Page 12 2005. 12 303J256710 Rev.1.0...
