Eizo FlexScan M1700 User Manual

Eizo FlexScan M1700 User Manual

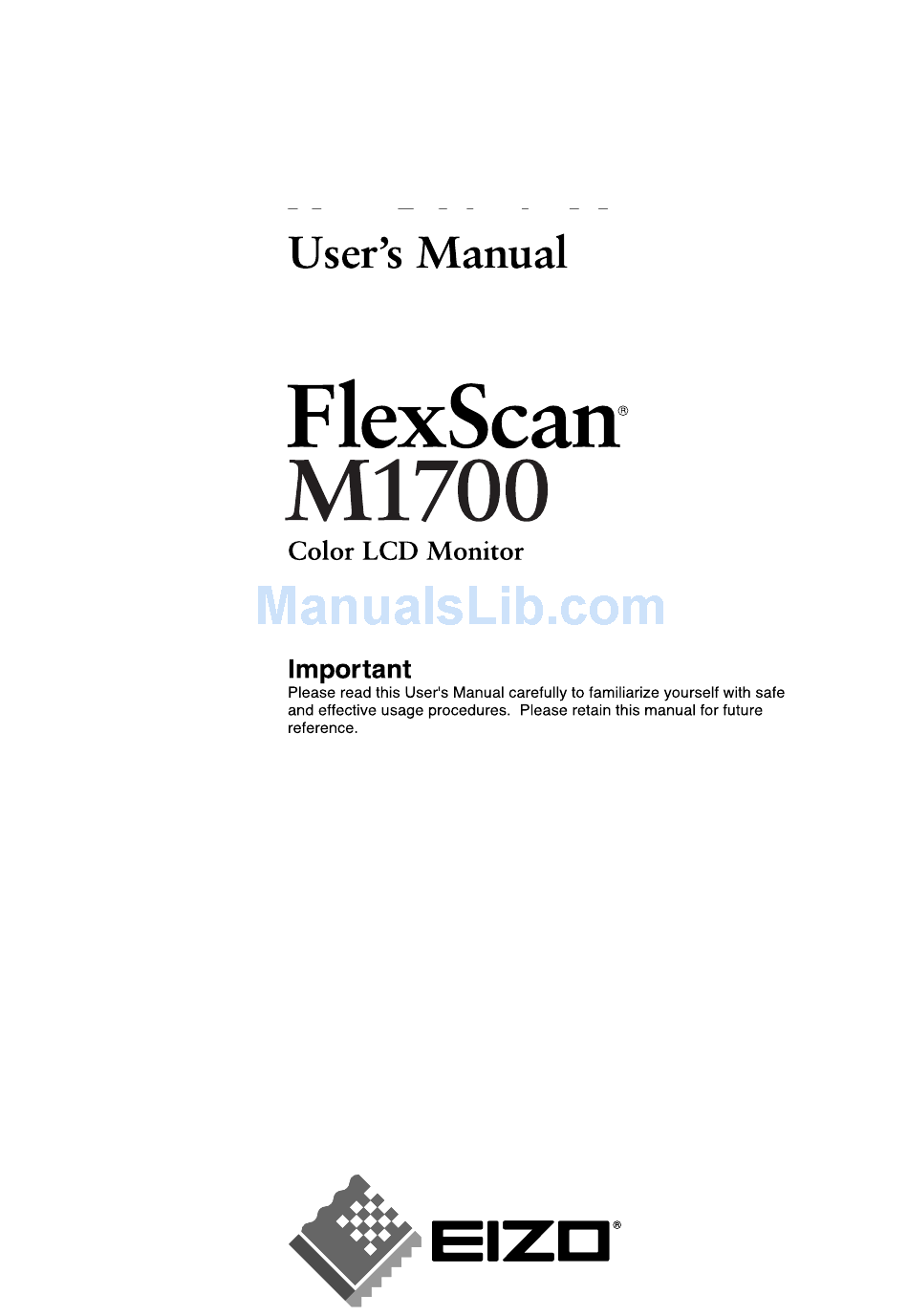

Eizo nanao user's manual color monitor flexscan m1700
Hide thumbs Also See for FlexScan M1700:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Setup Manual
/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlexScan M1700 and is the answer not in the manual?

Questions and answers

Related Manuals for Eizo FlexScan M1700

Summary of Contents for Eizo FlexScan M1700

  • Page 2: Safety Symbols

    EIZO NANAO CORPORATION. EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO NANAO...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PRECAUTIONS ..........4 1.

  • Page 4: Precautions

    English PRECAUTIONS IMPORTANT! This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. To ensure personal safety and proper maintenance, please read this section and the caution statements on the unit (refer to the figure below).
  • Page 5 WARNING Keep small objects or liquids away from the unit. Small objects accidentally falling through the ventilation slots into the cabinet or spillage into the cabinet may result in fire, electric shock, or equipment damage. If an object or liquid falls/spills into the cabinet, unplug the unit immediately.
  • Page 6 English WARNING The equipment must be connected to a grounded main outlet. Not doing so may result in fire or electric shock. Use the correct voltage. The unit is designed for use with a specific voltage only. Connection to another voltage than specified in this User’s Manual may cause fire, electric shock, or equipment damage.
  • Page 7 CAUTION Handle with care when carrying the unit. Disconnect the power cord and cables when moving the unit. Moving the unit with the cord attached is dangerous. It may result in injury. When handling the unit, grip the bottom of the unit firmly with both hands ensuring the panel faces outward before lifting.

  • Page 8: Lcd Panel

    English LCD Panel In order to suppress the luminosity change by long-term use and to maintain the stable luminosity, use of a monitor in lower brightness is recommended. The screen may have defective pixels. These pixels may appear as slightly light or dark area on the screen. This is due to the characteristics of the panel itself, and not the product.

  • Page 9: Introduction

    Auto Adjustment compliant FineContrast modes, to select the most suitable mode for screen display (p. 19) The EIZO LCD Utility Disk enclosed (See readme.txt in the CD-ROM for details.) The height adjustable stand incorporated Support to sRGB (p. 38) standard Built-in speaker system 1-2.

  • Page 10: Controls & Connectors

    English 1-3. Controls & Connectors Front ScreenManager Speaker Headphone Jack (Stereo Mini-jack) Input Signal Selection Button Auto Adjustment Button Control Buttons (Up, Down, Left, Right) Enter Button FineContrast Button Power Button (10) Power Indicator 1. INTRODUCTION FineContrast Menu Control Panel (4) (5) (6) (8) (9) ®...
  • Page 11 Rear (11) (11) Power Connector (12) External Line In (Stereo Mini-jack) (13) DVI-D Input Connector (14) D-Sub mini 15 pin Input Connector (15) 4 Holes for Mounting an Arm-Stand (16) Security Lock Slot (17) Stand (Detachable) (15) (16) (17) (14) (12) (13) Connect the power cord.

  • Page 12: Cable Connection

    English CABLE CONNECTION 2-1. Before Connecting Before connecting your monitor to the PC, change the display screen settings (resolution (p. 38) and frequency) in accordance with the charts below. NOTE The lower display modes like 640 × 480, automatically enlarge to the maximum display mode (1280 ×...

  • Page 13: Connecting The Signal Cable

    2-2. Connecting the Signal Cable NOTE Before connecting the product, set up the monitor after unfolding the base of the stand. Be sure that the power switches of both the PC and the monitor are OFF. How to Adjust the Monitor or Angle Grip both side of the monitor firmly with both hands and adjust the monitor height or angle as desired.

  • Page 14: Digital Input

    English Digital Input Power Cord Signal Cable FD-C39 (enclosed) NOTE The monitor is not compatible with a Power Mac G4/G4 Cube ADC (Apple Display Connector). Plug the power cord into the power connector on the rear of the monitor. Then, plug the other end of the cord into a power outlet. WARNING Use the enclosed power cord and connect to the standard power outlet of your country.

  • Page 15: Connecting Two Pcs To The Monitor

    Turn on the monitor’s main power and then switch on the PC’s power. The monitor’s power indicator will light up (blue). If an image does not appear, refer to the “6. TROUBLESHOOTING” (p. 30) for advice. Whenever finished, turn off the PC and the monitor. NOTE Adjust brightness of the screen depending on the brightness of your environment.

  • Page 16: Volume Control

    English Connect the other side of stereo mini-jack cable to the line out of audio devices. Sound Control Audio performance is available by connecting the headphone to the Headphone jack (When headphones are connected, no sound can be heard from the speakers). Adjust the sound as below.

  • Page 17: Screenmanager

    SCREENMANAGER 3-1. How to use the ScreenManager ScreenManager allows you to adjust screen performance though the main menu and select a FineContrast mode easily. [Ex.] Custom FineContrast Menu NOTE Main Menu and FineContrast Menu cannot be activated at the same time. Entering the ScreenManager Push the Enter button once to display the main menu of the ScreenManager.

  • Page 18: Screenmanager Adjustments And Settings

    English 3-2. ScreenManager Adjustments and Settings The following table shows all the ScreenManager’s adjustment and setting menus. “*” indicates adjustments of analog input only and “**” indicates digital input only. Main menu Screen Clock Phase Position Range Adjustment Smoothing Color Brightness (Custom)* Temperature...

  • Page 19: Finecontrast

    3-3. FineContrast This function allows you to select the best suited mode for screen display. To select the Mode Directly pressing the FineContrast button allows you to select the best suited mode for screen display from 5 FineContrast modes; Custom, sRGB, Text, Picture and Movie. Exit Push the Enter button to exit the menu.

  • Page 20: Useful Functions

    English 3-4. Useful Functions Adjustment Lock Use the “Adjustment Lock” function to prevent any accidental changes. Locked function Unlocked function [To lock] Switch off the monitor’s power by the Power button. Press on the Auto adjustment button while switching on the monitor’s power. [To unlock] Switch off the monitor’s power by the Power button, then hold down the Auto adjustment button once again and turn the power back on.

  • Page 21: Automatically Selecting The Input Signal Function

    EIZO Logo Disappearing Function When switching on the power button on the front panel, the EIZO logo is displyed for a while. If you desire to display or undisplay this logo, use this function. (Default is logo appearing.)

  • Page 22: Adjustment

    English ADJUSTMENT The monitor displays the digital input image correctly based on its pre-setting data. 4-1. Screen Adjustment Screen adjustments for the LCD monitor should be used in suppressing screen flickering and also for adjusting the screen to its proper position. There is only one correct position for each display mode.
  • Page 23 Run the “Screen adjustment program”. Having read the “Readme.txt” file, run the “Screen adjustment program” in the enclosed EIZO LCD Utility Disk. Step by step, adjustment is provided by the wizard guide. (If using the Windows, the program can be directly run from the menu screen of the CD-ROM.)
  • Page 24 English Horizontal bars appear on the screen. → Use the <Phase> (p. 38) adjustment. Select the <Phase> and eliminate the horizontal flickering, blurring or bars by using the Right and Left buttons. NOTE Horizontal bars may not completely disappear from the screen depending on the PC.

  • Page 25: Color Adjustment

    To smooth the blurred texts of the enlarged screen of the lower resolutions. → Switch the <Smoothing> setting. Select the suitable level from 1 - 5 (Soft - Sharp). Select <Smoothing> in the <Screen> menu and adjust by using the Right and Left buttons.
  • Page 26 English Menu Function Descriptions Brightness To set the brightness of the screen NOTE Directly pressing the up or down buttons also can adjust the brightness. Temperature To set the color temperature (p. 37) NOTE The values shown in the Kelvin are available only as a reference tool. Setting the temperature under 4,000 K or over 10,000 K invalidates the color temperature setting.

  • Page 27: Power-Save Setup

    4-3. Power-save Setup The <PowerManager> menu in the ScreenManager enables to set the power-save setup. NOTE Do your part to conserve energy, turn off the monitor when you are finished using it. Disconnecting the monitor from the power supply is recommended to save energy completely.
  • Page 28 English Power-save for Speaker When the monitor is in the power-saving mode, sound of speaker also erases simultaneously can be performed. [Procedure] Set the PC’s power saving settings. Select <Sound>. Select “Disable”. (“Enable” is selected to leave sound.) 4. ADJUSTMENT...

  • Page 29: Attaching An Arm Stand

    ATTACHING AN ARM STAND The LCD monitor can be used with an arm stand by removing the tilt stand and attaching the arm stand to the LCD monitor. Using our optional arm or stand is recommended. (Ask your local dealer for information.) NOTE If you will use the arm or stand of other companies, confirm the followings to the...

  • Page 30: Troubleshooting

    English TROUBLESHOOTING If a problem persists even after applying the suggested remedies, contact an EIZO dealer. No picture problems : See No.1 ~ No.2 Imaging problems : See No.3 ~ No.11 Other problems : See No.12 ~ No.14 Problems No picture...
  • Page 31 Problems Display position is incorrect. Vertical bars of distortion appear. Horizontal bars of distortion appear. Letters and lines appear blurred. The screen is too bright or too dark. Afterimages appear. The screen has defective pixels (e.g. slightly light or dark). 10.

  • Page 32: 32 6. Troubleshooting

    English Problems 12. The ScreenManager cannot be activated. 13. The Auto adjustment button does not operate. 14. No Sound 6. TROUBLESHOOTING Points to check with Possible Solutions The adjustment lock is probably on. To unlock (p. 20): switch the LCD monitor off. Then, while pressing the Auto adjustment button switch, the power on.

  • Page 33: Cleaning

    CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. NOTE Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or LCD panel.

  • Page 34: Specifications

    English SPECIFICATIONS LCD Panel Dot Pitch Horizontal Scan Frequency Vertical Scan Frequency Resolution Dot Clock (max.) Display Colors Display Area Power Supply Power Consumption Input Connector Analog Input Signal (Sync) Analog Input Signal (Video) Input Signal (Digital) Signal registration Plug & Play Amplifier Output (max.) Line input Headphone output level...

  • Page 35: Default Settings

    Temperature Certifications and Standards 100-120 VAC Certifications and Standards 200-240 VAC *1 Applicable to gray color version only. *2 Applicable to black color version only. Default settings Brightness Smoothing FineContrast Mode PowerManager Input Signal Off Timer Language Dimensions 368 (1 4.5) 33 9.8 (1 3.4) 62 ( 2.4) 180 (7.1)

  • Page 36: Pin Assignment

    English Pin Assignment D-Sub mini 15 pin connector Signal Red video Green video Blue video Ground No pin DVI-D Connector 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Signal TMDS Data 2-...

  • Page 37: Glossary

    GLOSSARY Clock With the analog input signal display, the analog signal is converted to a digital signal by the LCD circuitry. To convert the signal correctly, the LCD monitor needs to produce the same number clock pulse as the dot clock of the graphics system. When the clock pulse is not correctly set, some vertical bars of distortion are displayed on the screen.
  • Page 38 English Phase The phase adjustment decides the sampling timing point for converting the analog input signal to a digital signal. Adjusting the phase after the clock adjustment will produce a clear screen. Range Adjustment The Range Adjustment controls the level of output signal range to display the whole color gradation.

  • Page 39: Appendix/Anhang/Annexe

    APPENDIX/ANHANG/ANNEXE Preset Timing Chart for Analog input Timing-Übersichten für Analog Eingang Synchronisation des Signaux pour Analog numerique Based on the signal diagram shown below 20 factory presets have been registered in the monitor’s microprocessor. Der integrierte Mikroprozessor des Monitors unterstützt 20 werkseitige Standardeinstellungen (siehe hierzu die nachfolgenden Diagramme).
  • Page 40 Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the Impact on our natural environment.
  • Page 41 Congratulations! You have just purchased a TCO’99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 42 Environmental Requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs.

  • Page 43: Fcc Declaration Of Conformity

    Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord...
  • Page 44 Hinweis zur Ergonomie : Dieser Monitor erfüllt die Anforderungen an die Ergonomie nach EK1-ITB 2000 mit dem Videosignal, 1280 Punkte × 1024 Zeilen, RGB analog, 0,7 Vp-p und mindestens 75,0 Hz Bildwiederholfrequenz, non interlaced. Weiterhin wird aus ergonomischen Gründen empfohlen, die Grundfarbe Blau nicht auf dunklem Untergrund zu verwenden (schlechte Erkennbarkeit, Augenbelastung bei zu geringem Zeichenkontrast.) Hinweise zur Auswahl des richtigen Schwenkarms für Ihren Monitor Dieser Monitor ist für Bildschirmarbeitsplätze vorgesehen.
  • Page 45 DE BRAN CHE SWICO. http://www.swico.ch Recycling Information for customers in USA: All recycling information is placed in the EIZO Nanao Technologies, Inc’s website. http://www.eizo.com/ Återvinnings information för kunder i Sverige: All information om återvinning finns på Eizo Europe AB:s hemsida:...
