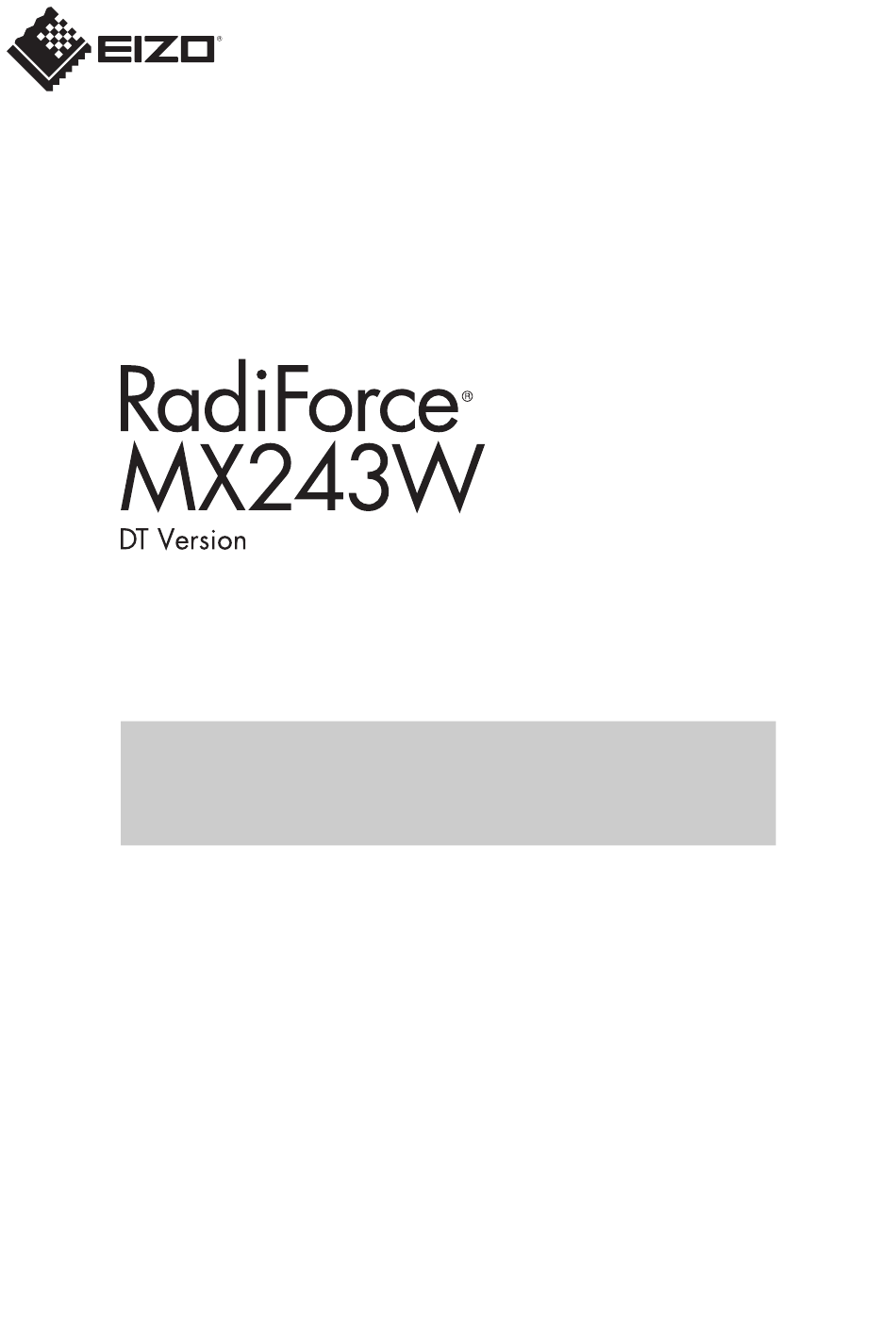

Instructions for Use
Color LCD Monitor
Important
Please make sure you read the Instructions for Use and Installation
Manual before use.
Please retain this manual for future reference.
• See the Installation Manual for monitor settings and adjustments.
• The latest product information, including the Instructions for Use, is
available on our web site.
www.eizoglobal.com
Advertisement
Table of Contents
Related Manuals for Eizo RadiForce MX243W-DT
Summary of Contents for Eizo RadiForce MX243W-DT
- Page 1 Instructions for Use Color LCD Monitor Important Please make sure you read the Instructions for Use and Installation Manual before use. Please retain this manual for future reference. • See the Installation Manual for monitor settings and adjustments. • The latest product information, including the Instructions for Use, is available on our web site.
- Page 2 EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information.
-
Page 3: Precautions
PRECAUTIONS PRECAUTIONS Important This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside this region, the product may not perform as stated in the specifications. To personal safety and proper maintenance, please read carefully the "PRECAUTIONS" section and the caution statements on the monitor. - Page 4 PRECAUTIONS Symbol This symbol indicates Importer in the EU Mark signifying compliance with UK regulations UK Responsible Person Authorised representative in Switzerland Authorised representative in the European Community...
- Page 5 A unit placed on an inadequate surface may fall and result in injury. If the unit falls, disconnect the power immediately and ask your local EIZO representative for advice. Do not continue using a damaged unit. Using a damaged unit may result in fire or electrical shock.
- Page 6 PRECAUTIONS WARNING Use the unit in an appropriate location. Otherwise, fire, electrical shock, or equipment damage may result. • Do not place outdoors. • Do not place in any form of transportation (ships, aircraft, trains, automobiles, etc.). • Do not place in dusty or humid environments. •...
- Page 7 Before installation, make sure that desks, walls, or any other installation surface has adequate mechanical strength. If the unit falls, disconnect the power immediately and ask your local EIZO representative for advice. Do not continue using a damaged unit. Using a damaged unit may result in fire or electrical shock.
- Page 8 PRECAUTIONS CAUTION CAUTION Check the operational state before use. Begin use after ensuring that there are no problems with the displayed image. When using multiple units, begin use after ensuring that the images are displayed appropriately. CAUTION Securely fix cables / cords that have a fixing feature. If they are not fixed securely, cables / cords may disconnect, and subsequently images may be cut off and your operations may be disrupted.
- Page 9 PRECAUTIONS CAUTION Do not touch the power plug with wet hands. Touching them may result in electrical shock. CAUTION Do not place any objects around the power plug. This is to facilitate disconnecting the power plug in case of a problem to avoid fire or electrical shock.
-
Page 10: Notice For This Monitor
• The specifications noted in this manual are only applicable when using the power cords provided together with the product and EIZO-specified signal cables. • Only use EIZO accessories products specified by EIZO with this product. Precautions for Use • Parts (such as the LCD panel and the fan) may deteriorate over extended periods of time. -
Page 11: To Use The Monitor For A Long Time
Notice for this monitor To Use the Monitor for a Long Time Quality control • The display quality of monitors is affected by the quality level of input signals and the degradation of the product. Perform visual checks and periodic constancy tests (including grayscale check) to comply with medical standards / guidelines according to your application, and carry out calibration as necessary. -
Page 12: Cybersecurity Warnings And Responsibilities
Notice for this monitor Cybersecurity Warnings and Responsibilities • Firmware update should be performed through EIZO Corporation or its distributor. • If EIZO Corporation or its distributor instructs to update the firmware, update it immediately. -
Page 13: Table Of Contents
CONTENTS CONTENTS PRECAUTIONS ......................Important ......................Location of Caution Statement..............Symbols on the unit ................Notice for this monitor....................10 Indications for Use ....................10 Precautions for Use..................... 10 To Use the Monitor for a Long Time ..............11 Quality control ..................11 Cleaning.................... - Page 14 CONTENTS 4.1.5 Physical Specifications ................25 4.1.6 Operating Environmental Requirements..........25 4.1.7 Transport / Storage Conditions ............... 25 Compatible Resolutions ..................25 Accessories......................25 Appendix ........................27 Medical Standard ....................27 Classification of Equipment..............27 EMC Information ....................28 Environments of Intended Use..............28 Technical Descriptions................
-
Page 15: Introduction
Introduction | 1 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1.1 Features 1.1.1 Hybrid monochrome and color display When the Hybrid Gamma PXL function is enabled, this product automatically differentiates between monochrome and color parts of the same image at a pixel level and displays them respectively in optimal gradients. -
Page 16: Quality Control
1 | Introduction • Power cord • Digital signal cable (DisplayPort - DisplayPort): PP300 x 1 • USB cable: UU300 x 1 • Instructions for Use Note • The Installation Manual is available for download from our web site: (www.eizoglobal.com) 1.3 Quality Control 1.3.1 RadiCS LE RadiCS LE enables you to perform the following quality control and monitor operations. -
Page 17: Controls And Functions
Introduction | 1 1.4 Controls and Functions 1.4.1 Front 1. Operation switches Displays the operation guide. Set menus according to the operation guide. Turns the power on or off. switch The switch indicator is lit when you turn the power on. The indicator color differs depending on the monitor's operation status. -
Page 18: Rear
1 | Introduction 1.4.2 Rear 1. Handle This handle is used for transportation. Attention • Firmly hold the monitor by the handle and the bottom while carrying it, and do not put pressure on the LCD panel or drop the monitor. 2. Stand Adjusts the height and angle (tilt, swive and rotation) of the monitor. -
Page 19: Installation / Connection
Installation / Connection | 2 2 Installation / Connection 2.1 Before installation Carefully read PRECAUTIONS [} 3] and always follow the instructions. If you place this product on a lacquer-coated desk, the color may adhere to the bottom of the stand due to the composition of the rubber. Check the desk surface before use. 2.1.1 Installation conditions When installing the monitor in a rack, ensure that there is adequate space around the sides, back and top of the monitor. - Page 20 When connecting other monitors using a daisy-chain connection The signal input to is output to another monitor. Attention • Visit the EIZO web site for information about monitors and graphics boards that can be used for the daisy-chain connection: (www.eizoglobal.com) • Remove the cap before connecting the signal cable.
-
Page 21: Turning On The Power
Installation / Connection | 2 2.3 Turning On the Power 1. Touch to turn on the power to the monitor. The power switch indicator of the monitor lights up green. If the indicator does not light up, see 3 No-Picture Problem [} 22]. Note •... -
Page 22: Picture Problem
• Turn off the main power, and then turn it on again. Power switch indicator blinks: Orange, Green • Connect using a signal cable specified by EIZO. Then turn off the main power switch on the back of the monitor, and then turn it on again a few minutes later. - Page 23 No-Picture Problem | 3 The message "Signal Error" appears on the screen The message "Signal Error" appears in the screen. Example: • Check whether the PC is configured to meet the resolution and vertical scan frequency requirements of the monitor (see 4.2 Compatible Resolutions [} 25]).
-
Page 24: Specifications
4 | Specifications 4 Specifications 4.1 List of Specifications 4.1.1 LCD Panel Type IPS (Anti-Glare) Backlight Size 24.1" (61 cm) Resolution 1920 dots x 1200 lines Display Size (H x V) 518.4 mm x 324.0 mm Pixel Pitch 0.270 mm x 0.270 mm Display Colors 10-bit color (DisplayPort): Up to 1.07 billion colors (from a palette of approx. -
Page 25: Physical Specifications
Specifications | 4 4.1.5 Physical Specifications Dimensions (W x H x D) 552.0 mm x 430.8 mm – 520.8 mm x 200.0 mm (Tilt: 0˚) 552.0 mm x 459.2 mm – 549.2 mm x 229.9 mm (Tilt: 30˚) Dimensions (W x H x D) (Without Stand) 552.0 mm x 361.6 mm x 64.5 mm Net Weight Approx. - Page 26 4 | Specifications Calibration Kit RadiCS UX2 Ver.5.1.3 or later RadiCS Version Up Kit Ver.5.1.3 or later Network QC Management Software RadiNET Pro Ver.5.1.3 or later Cleaning Kit ScreenCleaner Comfort Light for Reading Rooms RadiLight AAH-02B3W LA-011-W Signal Cable (DVI-D - DVI-D) DD200...
-
Page 27: Appendix
Appendix Appendix Medical Standard • It shall be assured that the final system is in compliance to IEC60601-1 requirement. • Power supplied equipment can emit electromagnetic waves, that could influence, limit or result in malfunction of the monitor. Install the equipment in a controlled environment, where such effects are avoided. -
Page 28: Emc Information
Appendix EMC Information The RadiForce series has the capability to properly display medical images. Environments of Intended Use The RadiForce series is intended for use in the following environments • Professional healthcare facility environments such as clinics and hospitals The following environments are not suitable for the RadiForce series to be used: •... -
Page 29: Technical Descriptions
Appendix WARNING • Be sure to use the cables attached to the product, or cables recommended by EIZO. Use of cables other than those recommended by EIZO for this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and improper operation. - Page 30 Appendix Electromagnetic immunity The RadiForce series has been tested at the following compliance levels (C) according to the testing requirements (T) for professional healthcare facility environments specified in IEC60601-1-2. The customer or the user of the RadiForce series should ensure that it is used in such an environment.
- Page 31 Appendix Immunity test Test level (T) Compliance level Electromagnetic environment - Guidance Portable and mobile RF communications equipment should be used no closer to any part of the RadiForce series, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.
- Page 32 Appendix abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the RadiForce series. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
- Page 33 Appendix Recommended separation distances between portable or mobile RF communication equipment and the RadiForce series The RadiForce series is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the RadiForce series can suppress electromagnetic interference by maintaining a minimum distance (30 cm) between portable and mobile RF communications equipment (transmitters) and the RadiForce series.
- Page 34 Appendix The customer or the user of the RadiForce series suppress interference caused by proximity magnetic fields by maintaining a minimum distance (15 cm) between RF transmitters and the RadiForce series. The RadiForce series has been tested at the following compliance levels (C) for the requirements of the proximity magnetic field immunity test levels (T).
- Page 35 Carl-Benz-Straße 3, 76761 Rülzheim, Germany 中国苏州市苏州工业园区展业路8号中新科技工业坊5B 1 Queens Square, Ascot Business Park, Lyndhurst Road, Ascot, Berkshire, SL5 9FE, UK Moosacherstrasse 6, Au, CH-8820 Wädenswil, Switzerland 00N0N454A1 www.eizoglobal.com IFU-MX243W-DT Copyright © 2023 EIZO Corporation. All rights reserved. 1st Edition – October 31st, 2023...
