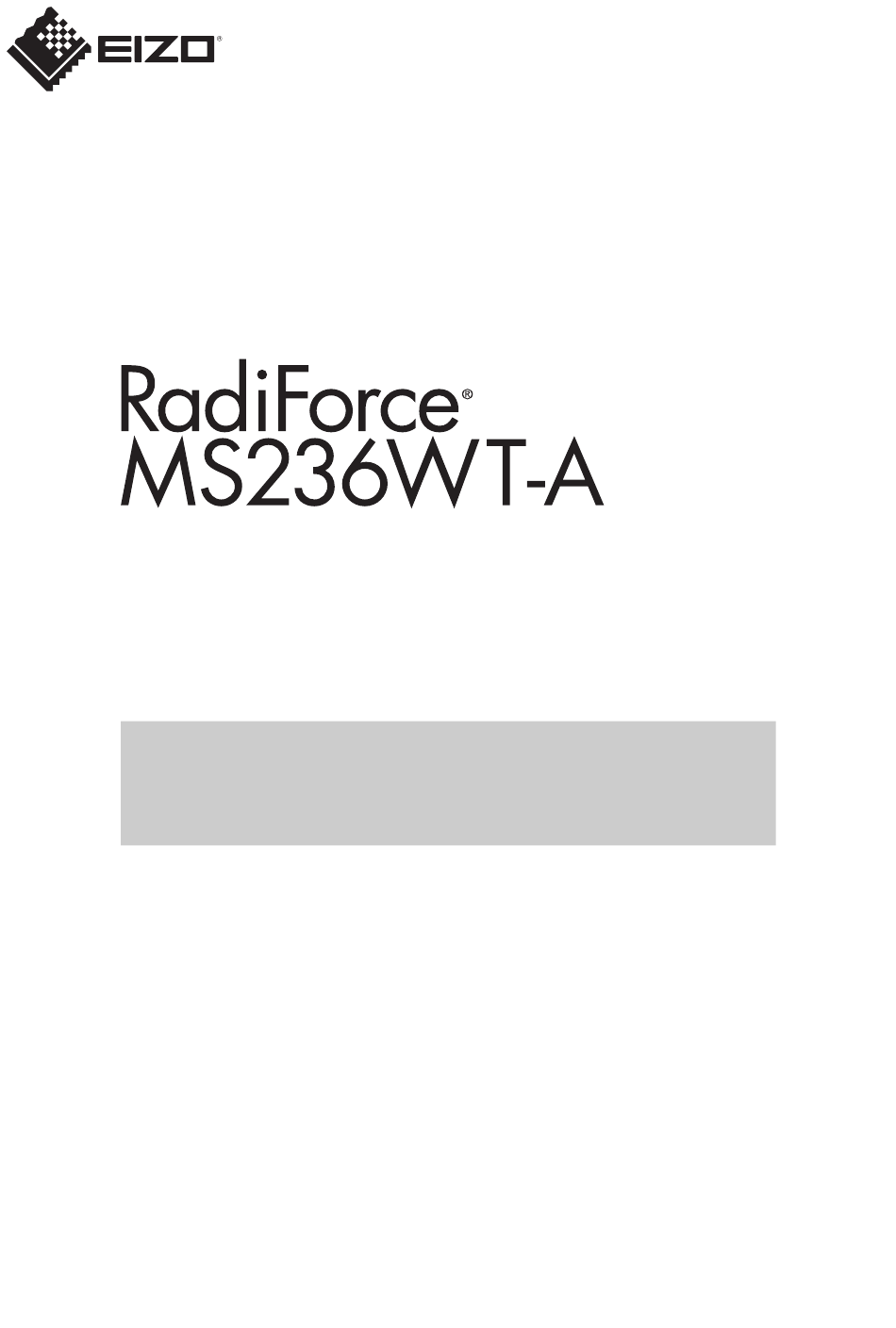

Instructions for Use
Color LCD Monitor with Touch Panel
Important
Please make sure you read the Instructions for Use and Installation
Manual before use.
Please retain this manual for future reference.
• See the Installation Manual for monitor settings and adjustments.
• The latest product information, including the Instructions for Use, is
available on our web site.
www.eizoglobal.com
Advertisement
Table of Contents
Related Manuals for Eizo RediForce MS236WT-A
Summary of Contents for Eizo RediForce MS236WT-A
- Page 1 Instructions for Use Color LCD Monitor with Touch Panel Important Please make sure you read the Instructions for Use and Installation Manual before use. Please retain this manual for future reference. • See the Installation Manual for monitor settings and adjustments. •...
- Page 2 EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information.
-
Page 3: Precautions
PRECAUTIONS PRECAUTIONS Important This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside this region, the product may not perform as stated in the specifications. To personal safety and proper maintenance, please read carefully the "PRECAUTIONS" section and the caution statements on the monitor. - Page 4 PRECAUTIONS Symbol This symbol indicates Mark signifying compliance with UK regulations UK Responsible Person Authorised representative in Switzerland...
- Page 5 A unit placed on an inadequate surface may fall and result in injury. If the unit falls, disconnect the power immediately and ask your local EIZO representative for advice. Do not continue using a damaged unit. Using a damaged unit may result in fire or electrical shock.
- Page 6 PRECAUTIONS WARNING Use the unit in an appropriate location. Otherwise, fire, electrical shock, or equipment damage may result. • Do not place outdoors. • Do not place in any form of transportation (ships, aircraft, trains, automobiles, etc.). • Do not place in dusty or humid environments. •...
- Page 7 Before installation, make sure that desks, walls, or any other installation surface has adequate mechanical strength. If the unit falls, disconnect the power immediately and ask your local EIZO representative for advice. Do not continue using a damaged unit. Using a damaged unit may result in fire or electrical shock.
- Page 8 PRECAUTIONS CAUTION CAUTION Check the operational state before use. Begin use after ensuring that there are no problems with the displayed image. When using multiple units, begin use after ensuring that the images are displayed appropriately. CAUTION Securely fix cables / cords that have a fixing feature. If they are not fixed securely, cables / cords may disconnect, and subsequently images may be cut off and your operations may be disrupted.
- Page 9 PRECAUTIONS CAUTION Do not touch the power plug with wet hands. Touching them may result in electrical shock. CAUTION Do not place any objects around the power plug. This is to facilitate disconnecting the power plug in case of a problem to avoid fire or electrical shock.
-
Page 10: Notice For This Monitor
• The specifications noted in this manual are only applicable when using the power cords provided together with the product and EIZO-specified signal cables. • Only use EIZO accessories products specified by EIZO with this product. Precautions for Use • Parts (such as the LCD panel and the fan) may deteriorate if used over extended periods of time. -
Page 11: To Use The Monitor For A Long Time
• Look at the screen from a proper distance and from a proper angle. Cybersecurity Warnings and Responsibilities • Firmware update should be performed through EIZO Corporation or its distributor. • If EIZO Corporation or its distributor instructs to update the firmware, update it immediately. -
Page 12: Table Of Contents
1.1.2 Easy-to-touch Stand Mechanism ............14 1.1.3 10-point Multi-touch Support..............14 Package Contents....................15 1.2.1 Contents Included in the EIZO LCD Utility Disk........15 Controls and Functions ..................16 1.3.1 Front......................16 1.3.2 Rear ......................17 2 Installation / Connection.................... 18 Before installation.................... - Page 13 CONTENTS 4.1.5 Audio....................... 26 4.1.6 Power...................... 26 4.1.7 Physical Specifications ................26 4.1.8 Operating Environment Requirements............ 26 4.1.9 Transport / Storage Conditions ............... 26 Compatible Resolutions ..................27 Accessories......................27 Appendix ........................28 Medical Standard ....................28 Classification of Equipment..............28 EMC Information ....................
-
Page 14: Introduction
1 | Introduction 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1.1 Features 1.1.1 Full-Flat Design A full-flat design with a flat bezel is adopted. You can properly touch right to the edge of the screen. 1.1.2 Easy-to-touch Stand Mechanism The tilt angle can be adjusted steplessly. -
Page 15: Package Contents
Introduction | 1 1.2 Package Contents Check that all of the following items are contained in the package. If any of these are missing or damaged, contact your dealer or local EIZO representative listed on the attached sheet. Note • It is recommended that the box and packing materials be stored so that they can be used to move or transport this product. -
Page 16: Controls And Functions
1 | Introduction 1.3 Controls and Functions 1.3.1 Front 1. Power Indicator Indicates the monitor’s operation status. Blue: Screen display Orange: Power saving mode Off: Main power / power off button Enables/disables and adjusts the sensitivity of the touch panel. button Switches the input signals to be displayed. button Selects items displayed in the Setting menu, adjusts or sets the functions, and displays the brightness adjustment screen. -
Page 17: Rear
Introduction | 1 1.3.2 Rear 1. Main power switch Turns the main power on or off. ｜: On, ○: Off 2. Power connector Connects the power cord. 3. Touch pen holder For mounting the touch pen holder. (see Mounting the Touch Pen mounting hole Holder [} 21]) -
Page 18: Installation / Connection
2 | Installation / Connection 2 Installation / Connection 2.1 Before installation Carefully read PRECAUTIONS [} 3] and always follow the instructions. If you place this product on a lacquer-coated desk, the color may adhere to the bottom of the stand due to the composition of the rubber. Check the desk surface before use. 2.1.1 Installation conditions When installing the monitor in a rack, ensure that there is adequate space around the sides, back and top of the monitor. - Page 19 Installation / Connection | 2 1. Connect signal cables. Check the shapes of the connectors, and connect the cables. When connecting an HDMI cable, fasten the cable with the supplied cable tie. When connecting a D-Sub mini 15-pin cable, tighten the fasteners down to secure the connector. Connect the USB cable when using the monitor as a touch panel monitor.
-
Page 20: Turning On The Power
2 | Installation / Connection 2. Plug the power cord into a power outlet and the power connector on the monitor. Insert the power cord fully into the monitor. 2.4 Turning On the Power 1. Check if the main power switch is on. 2. -
Page 21: Adjusting The Screen Angle
Installation / Connection | 2 2.5 Adjusting the Screen Angle Hold the left and right edges of the monitor with both hands, and adjust the screen tilt to the optimum position for performing tasks. 15° 70° 216.3 mm 401.3 mm Attention • After the adjustment is finished, make sure that the cables are correctly connected. 2.6 Mounting the Touch Pen Holder Mount the touch pen holder in either of the holes to the left and right on the rear side of the monitor. - Page 22 2 | Installation / Connection TPOffset is included in the EIZO LCD Utility Disk (CD-ROM). Note • TPOffset can also be downloaded from our website. (www.eizoglobal.com) • Run TPOffset as necessary in the following cases: – The usage environment has changed significantly –...
-
Page 23: Picture Problem
No-Picture Problem | 3 3 No-Picture Problem Power switch indicator does not light up. • Check whether the power cord is connected properly. • Turn the main power switch on. • Press • Turn off the main power, and then turn it on again a few minutes later. Power switch indicator lights up: Blue •... - Page 24 3 | No-Picture Problem The message "Signal Error" appears on the screen. Example: • Check whether the PC is configured to meet the resolution and vertical scan frequency requirements of the monitor (see Compatible Resolutions [} 27]). • Reboot the PC. • Select an appropriate setting using the graphics board’s utility. Refer to the User’s Manual of the graphics board for details.
-
Page 25: Specifications
Microsoft Windows 10 (32 bit / 64 bit) Microsoft Windows 8.1 (32 bit / 64 bit) Number of simultaneous touch points Max. 10 points EIZO support will end when OS vendor support ends. 4.1.3 Video Signals Input Terminals DisplayPort (HDCP 1.3 compatible) x 1, HDMI (HDCP 1.4 compatible) -
Page 26: Usb
4 | Specifications 4.1.4 USB Port Upstream USB-B x 1 Downstream USB-A x 2 Standard USB Specification Rev. 3.1 Gen 1 Communication Speed 5 Gbps (super), 480 Mbps (high), 12 Mbps (full), 1.5 Mbps (low) Supply Current Downstream (USB-A) Max. 900 mA per port 4.1.5 Audio Audio Input Format DisplayPort... -
Page 27: Compatible Resolutions
Specifications | 4 4.2 Compatible Resolutions The monitor supports the following resolutions: ✓: Supported, -: Not supported Resolution Vertical scan DisplayPort HDMI D-Sub frequency (Hz) 640 x 480 59.940 ✓ ✓ ✓ 640 x 480 60.000 ✓ ✓ 640 x 480 72.809 ✓... -
Page 28: Appendix
Appendix Appendix Medical Standard • It shall be assured that the final system is in compliance to IEC60601-1-1 requirement. • Power supplied equipment can emit electromagnetic waves, that could influence, limit or result in malfunction of the monitor. Install the equipment in a controlled environment, where such effects are avoided. -
Page 29: Emc Information
Appendix EMC Information The RadiForce series has a performance that appropriately displays images. Environments of Intended Use The RadiForce series is intended to be used in Professional healthcare facility environments such as clinics and hospitals. The following environments are not suitable for the RadiForce series to be used: •... -
Page 30: Technical Descriptions
• Be sure to use the cables attached to the product, or cables specified by EIZO. Use of cables other than those specified or provided by EIZO of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and improper operation. - Page 31 Appendix Electromagnetic immunity The RadiForce series has been tested at the following compliance levels according to the testing requirements for professional healthcare facility environments specified in IEC / EN60601-1-2. The customer or the user of the RadiForce series should assure that it is used in such an environment.
- Page 32 Appendix Immunity test Test level for Compliance level Electromagnetic environment - professional Guidance healthcare facility environments Portable and mobile RF communications equipment should be used no closer to any part of the RadiForce series, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.
- Page 33 Appendix abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the RadiForce series. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
- Page 34 Appendix Recommended separation distances between portable or mobile RF communication equipment and the RadiForce series The RadiForce series is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the RadiForce series can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the RadiForce series.
- Page 35 Appendix The RadiForce series is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. For other portable and mobile RF communication equipments (transmitters), minimum distance between portable and mobile RF communications equipment (transmitters) and the RadiForce series as recommended below, according to the maximum output power of the communications equipment.
-
Page 36: Information For Radio Interference
Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. • AC Cord •... -
Page 37: Declaration Of Compliance With India Rohs
Appendix Declaration of compliance with India RoHS We, EIZO Corporation, hereby declare and guarantee that this product has been designed and manufactured in compliance with the E-Waste management rule 2016 which prohibit the inclusion of the following substances except for the exemptions listed in schedule II. - Page 38 Carl-Benz-Straße 3, 76761 Rülzheim, Germany 中国苏州市苏州工业园区展业路8号中新科技工业坊5B 1 Queens Square, Ascot Business Park, Lyndhurst Road, Ascot, Berkshire, SL5 9FE, UK Moosacherstrasse 6, Au, CH-8820 Wädenswil, Switzerland 00N0N310A1 www.eizoglobal.com IFU-MS236WT-A Copyright © 2022 EIZO Corporation. All rights reserved. 1st Edition – May 10th, 2022...
