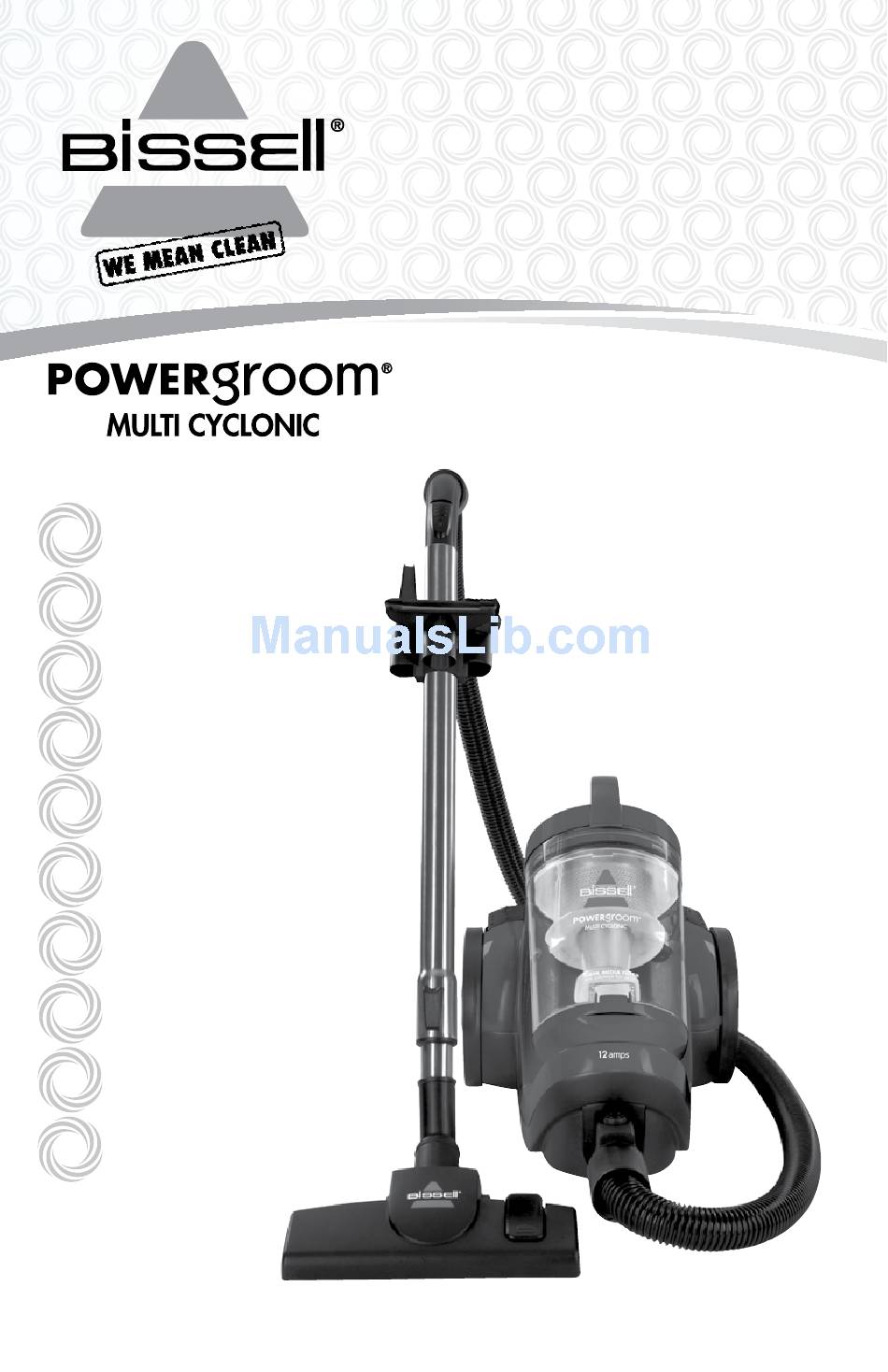

USER'S GUIDE
80Q2 SERIES
Thank You
2
Safety Instructions
3
Product View
4
Assembly
5
Operations
6-8
Maintenance and Care
9-12
Troubleshooting
13
Replacement Parts
14
Warranty
15
16
Consumer Services

Advertisement

   Also See for Bissell PowerGroom Multi Cyclonic Canister

   Summary of Contents for Bissell PowerGroom Multi Cyclonic Canister

  • Page 1

    USER'S GUIDE 80Q2 SERIES Thank You Safety Instructions Product View Assembly Operations Maintenance and Care 9-12 Troubleshooting Replacement Parts Warranty Consumer Services...

  • Page 2

    My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a global leader in the design, manufacture, and service of high quality homecare products like your BISSELL PowerGroom Multi Cyclonic canister vacuum.

  • Page 3

    MPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, Young children should be supervised to ensure ■ basic precautions should be observed, that they do not play with the appliance. including the following: Remove plug from electrical outlet before ■ cleaning or maintaining the appliance. REAd ALL If the supply cord is damaged, it must be ■...

  • Page 4

    roduct view Handle Air Flow Regulator Flex Hose Tool Storage Caddy Telescoping Extension Wand Power Switch Easy Empty™ Dirt Container Multi-Surface Hose Connector Floor Nozzle Brush Switch CAUTION: Do not plug in your vacuum until you are familiar with all instructions and Upholstery Tool Crevice Tool...

  • Page 5

    ssembly Connect the hose to the vacuum by WARNING: inserting the hose connector into the suction opening on the bottom front Plastic film can be of the vacuum. Push in until it clicks dangerous. To avoid danger into the locked position. of suffocation, keep away Connect the telescoping extension from babies and children.

  • Page 6: Power Cord

    perations Power cord The power cord is located at the rear of the vacuum. Gently pull out the power cord, watching for the yellow line. Stop pulling the power cord once the yellow line is visible. There is also a red line, which indicates the end of Automatic Cord the usable cord.

  • Page 7

    perations Power Power button Button Turn the power ON or OFF by pressing lightly downward on the power button Variable suction power control The variable suction power control is located on the back of the vacuum. Turn the control toward the larger dots for maximum suction.

  • Page 8

    Special tools Your BISSELL PowerGroom Multi Cyclonic is not only a powerful Brush Up carpet and rug vacuum cleaner, it’s also a versatile bare floor and above floor vacuum cleaner when you select one of the special tools. Floor nozzle: Use to vacuum carpets, rugs and bare floors.

  • Page 9: Emptying The Dirt Container

    aintenance and care Emptying the dirt container WARNING: Empty the dirt container as soon as the dirt reached the “FULL” lines on To reduce the risk of electric shock, the sides of the dirt container. turn power switch OFF and 1.

  • Page 10

    Cleaning the inner cyclone & screen Filters protect the motor from dirt and dust particles. Use only BISSELL replacement filters in your PowerGroom Multi Cyclonic 1. Unplug the vacuum from the electrical outlet. 2. Remove the dirt container from the vacuum and make sure it is empty.

  • Page 11: Cleaning The Pre-motor Filter

    The pre-motor filter protects the This product is intended for household motor from dirt and dust particles. use only and not for commercial or Use only BISSELL replacement filters industrial use. Vacuuming of dust in your PowerGroom Multi Cyclonic. from products like plaster, concrete or ashes will damage the motor and 1.

  • Page 12: Thermal Protector

    3. The thermal protector automatically resets after approximately 2 hours. If the thermal protector does not reset, call BISSELL Consumer Services or visit the website. w w w . b i s s e l l . c o m...

  • Page 13: Please Do Not Return This Product To The Store

    Thank you for selecting a BISSELL product. Please do not return this product to the store. For any questions or concerns, BISSELL is happy to be of service. Contact us directly at 1-800-237-7691. w w w . b i s s e l l . c o m...

  • Page 14

    - BISSELL vacuum Item Part No. Part Name 203-1578 Hose 203-1579 Telescoping Extension Wand 203-1536 Multi-Surface Floor Nozzle 203-1583 Tool Holder 203-1581 Upholstery Tool 203-1580 Crevice Tool 203-1582 Dusting Brush 203-1575 Inner Cyclonic Assembly 203-1569 Pre-Motor Filter 203-1557 Post-Motor HEPA Media Filter* * The filter media, not the vacuum as a whole, complies with the IEST-RP-CC001.5...

  • Page 15

    Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product BISSELL will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for one year any defective or malfunctioning part.

  • Page 16

    Grand Rapids MI 49501 ATTN: Consumer Services Or visit the BISSELL website - www.bissell.com When contacting BISSELL, have model number of cleaner available. Please record your Model Number: ___________________ Please record your Purchase Date: ___________________ NOTE: Please keep your original sales receipt.
