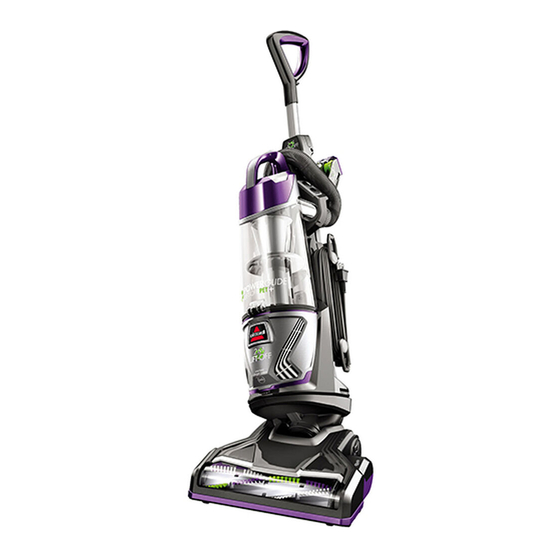

Bissell POWERGLIDE LIFT-OFF PET Quick Start Manual

QUICK START GUIDE
POWERGLIDE
UPRIGHT VACUUM

Assembly Instructions

1. Slide handle into vacuum
base and attach with the
screw that is taped to the
handle.
PARTS INCLUDED
Upper
Handle
161-1026 11/16 RevA
2. Attach hose by lining
the tabs on the cuff with
the notches on the back of
vacuum. Twist clockwise to
lock hose into place.
Hose
PetTurboEraser®
Base Unit
Tool Holder
LIFT-OFF PET
®
3. Push handle end into 4. Slide the Pet TurboEraser®
base of vacuum on Tool holder down on the top
opposite side. back of the base.
Pet Hair Eraser®
Pet TurboEraser®
Tool (only available
Tool
select models)
WARNING
Refer to the enclosed user guide for complete
instructions and important safety notices.
5. Slide the Crevice Tool/
Extension Wand holder
down onto the middle of
the back of base. Store
both tools in the holder.
Combination
Crevice Tool/
Dusting/Crevice
Extension Wand
Tool
Holder
2043 SERIES
Extension
Wand
