SpectraLink Link 3000 Install Manual

Hide thumbs Also See for Link 3000:

Advertisement

Quick Links

Download this manual See also: Setup & Installation, Installation Manual
Comdial DXP/DX/FX System
LinkPlus Interface Guide
Link Wireless Telephone System
NetLink Wireless Telephone
Part Number: 72-0171-03
Issue C

Advertisement

loading
Need help?

Need help?

Do you have a question about the Link 3000 and is the answer not in the manual?

Questions and answers

Related Manuals for SpectraLink Link 3000

Summary of Contents for SpectraLink Link 3000

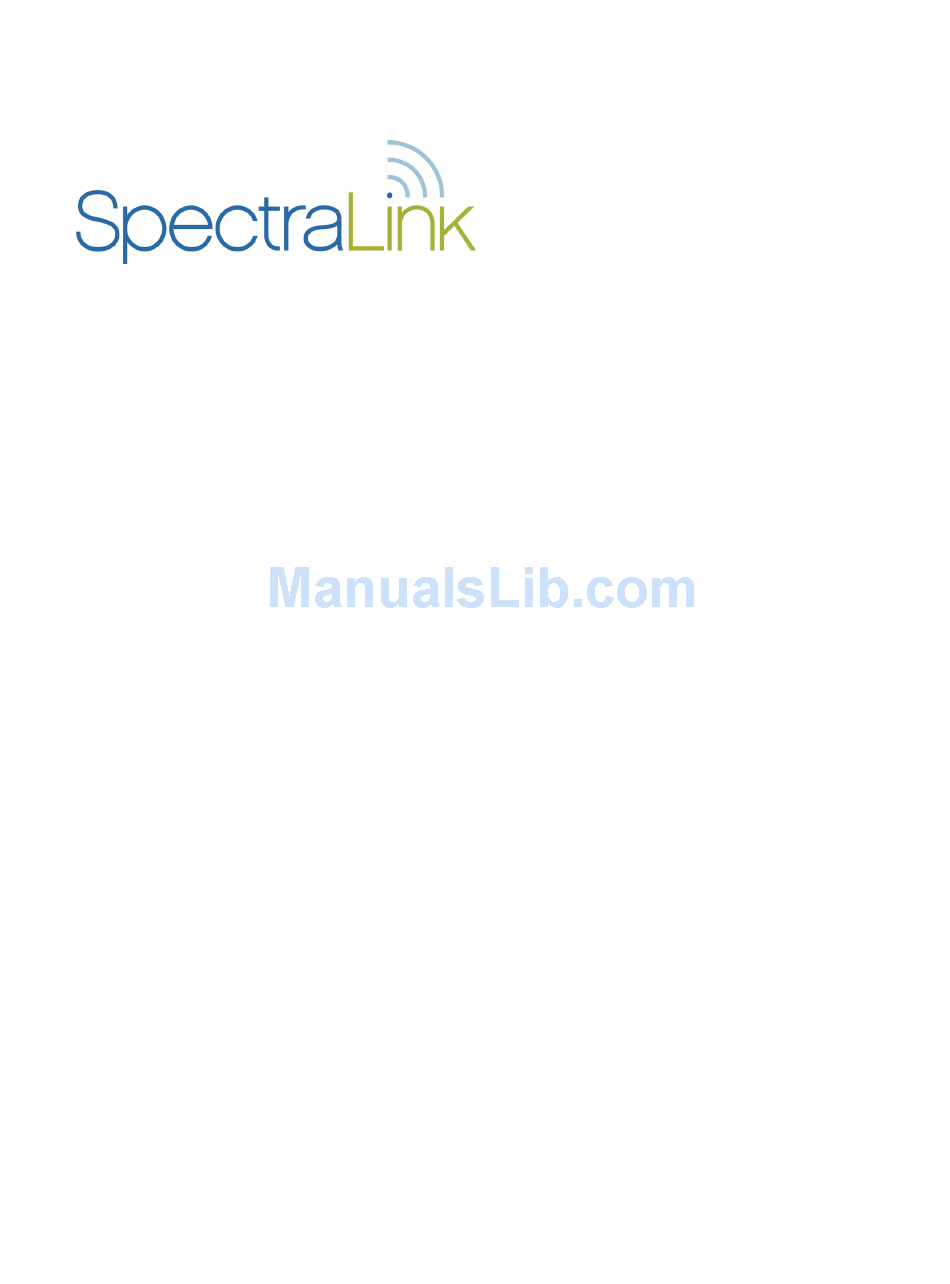

  • Page 1 Comdial DXP/DX/FX System LinkPlus Interface Guide Link Wireless Telephone System NetLink Wireless Telephone Part Number: 72-0171-03 Issue C...

  • Page 2: Trademark Information

    No representation or other affirmation of fact contained in this document including but not limited to statements regarding capacity, response-time performance, suitability for use, or performance of products described herein shall be deemed to be a warranty by SpectraLink for any purpose, or give rise to any liability of SpectraLink whatsoever.
  • Page 3 Available at http://www.spectralink.com/consumer/resources/interface_guides.jsp. Contacting SpectraLink SpectraLink wants you to have a successful installation. If you have questions please contact our Customer Support Hotline at (800) 775-5330. The hotline is open Monday through Friday, 6 a.m. to 6 p.m. Mountain time.
  • Page 4 Icons and Conventions This manual uses the following icons and conventions. Caution! Follow these instructions carefully to avoid danger. Note these instructions carefully. NORM This typeface indicates a key, label, or button on SpectraLink hardware. Part Number: 72-0171-03-C.doc Page 4...
  • Page 5 See Link 3000 MCU: Operator’s Console, Link 150 M3 MCU: Installation and Operation, or NetLink Telephony Gateway: Installation, Configuration, and Administration. The following information will help the system administrator set up the SpectraLink Wireless Telephones to operate in a way that feels familiar and comfortable to users. Plan Programming...

  • Page 6: Key Mapping

    SpectraLink Corporation LinkPlus Interface Guide Comdial DXP/DX/FX System Key-mapping The handset supports programmable buttons for telephone system features. Determine which button features, if any, should be programmed on the handsets. Miscellaneous Features Note the settings for these station features so the handsets can be programmed the same way.

  • Page 7: Handset Icons

    SpectraLink Corporation LinkPlus Interface Guide Comdial DXP/DX/FX System The SpectraLink Wireless Telephone Display The handset has a two-line, 16-character alphanumeric display. Certain characters may be used by the system that are not implemented in the handset. Flashing characters are not implemented on the handset, nor is rolling or scrolling of text.
  • Page 8 Link 3000 MCU Note that the function menu defaults set for the handsets associated with the Link 3000 MCU can be changed via the SpectraLink Operator’s Console. If the system uses softkeys, to minimize unwanted interaction between system display and the handset function menu display, configure the handset menu to include a delay of one function key.
  • Page 9 SpectraLink Corporation LinkPlus Interface Guide Comdial DXP/DX/FX System there is an option to use Delay (same as the Link 3000 MCU). See the NetLink Telephony Gateway: Installation, Configuration, and Administration document for further details. Also refer to the same document for details on configuring the...
  • Page 10 Interface Implementation This section describes the recommended programming in order to use the SpectraLink Wireless Telephone System or NetLink components with a Comdial Digital Telephone System. The procedures assume the following: • The Comdial system system is installed and operational in an approved configuration.
  • Page 11 SpectraLink Corporation LinkPlus Interface Guide Comdial DXP/DX/FX System Key-mapping the handset to Emulate 8012S Functionality LINE 1 FCN 2/FWD LINE 2 FCN 3/PICK LINE 3 FCN 4/PAGE LINE 4 FCN 5 LINE 5 FCN 6 LINE 6 FCN 7 FCN 8/Exit...

  • Page 12: Copy Programming

    Comdial DXP/DX/FX System Program Comdial Program the Comdial for use with the SpectraLink Wireless Telephone System using a PC Terminal Emulator (VDT) or 8012S. Software versions may vary. As you program, be sure to read the menus and prompts to see that the commands correspond to the instructions.
  • Page 13 SpectraLink Corporation LinkPlus Interface Guide Comdial DXP/DX/FX System Extension Assignments Worksheet Shelf: _______ Interface Module: _______ Handset # Ext. # Name Interface Comment Wireless Module Circuit Handset Serial # Handset 1 Handset 2 Handset 3 Handset 4 Handset 5 Handset 6...
