6. Using the #2 Phillips screwdriver, remove the screws that hold the robotic rack
assembly to the chassis: first the top, then the bottom (Figure 7).
7. From the front of the library, carefully slide the robotic rack assembly outward
about six inches (15.24 cm) (Figure 8).
Spectra® 20K Library Transport Tray Assembly Replacement Guide

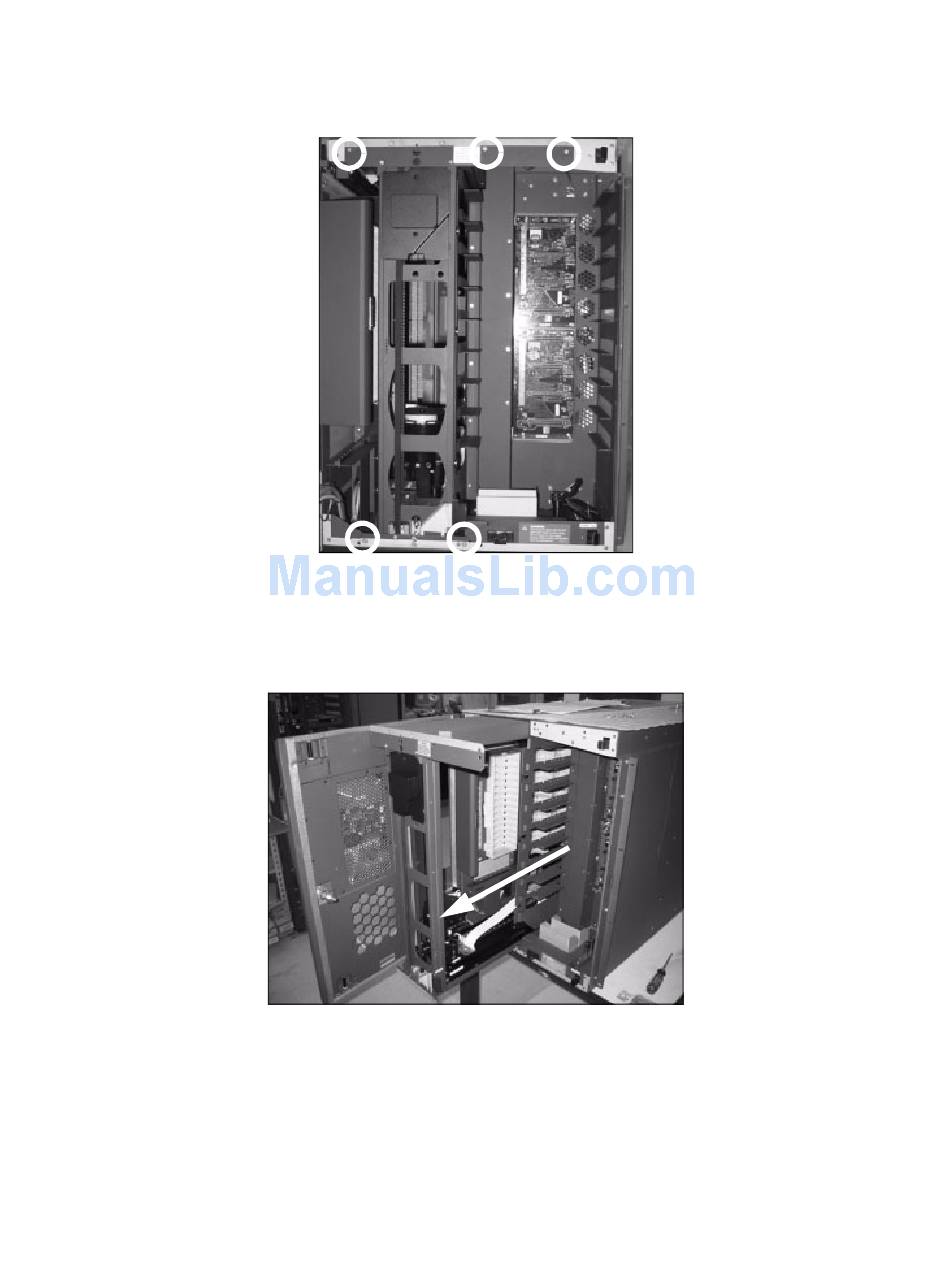

Figure 7 The robotic rack screws.
Figure 8 The robotic rack assembly is moved outward.
10
