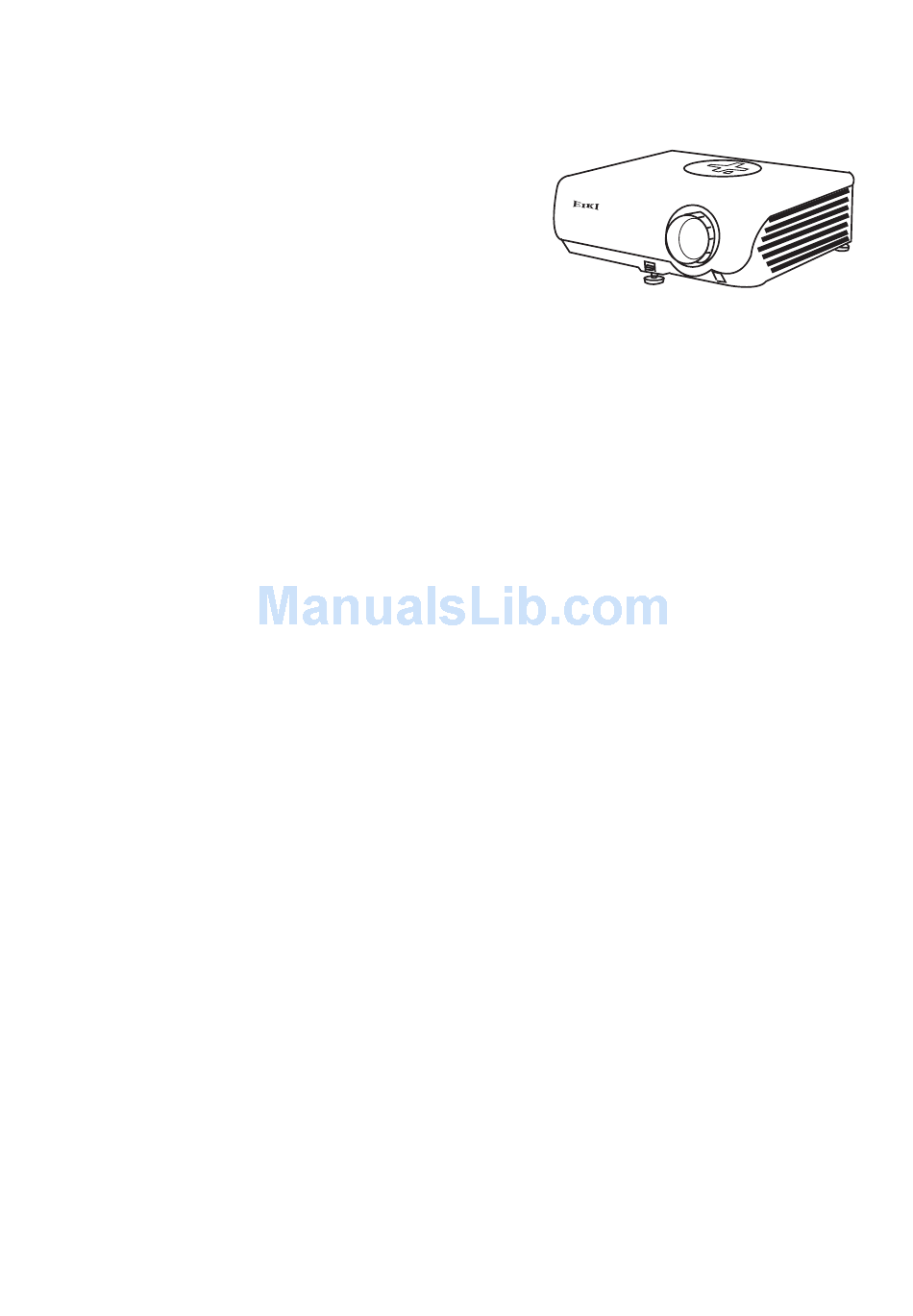

Eiki EIP-2500 Specifications

A
KEY FEATURES: Model EIP-2500
2500 ANSI Lumens, 85% uniformity, and 2000:1 contrast ratio.
DLP™ imaging technology delivers a "seamless" high contrast image.
True XGA resolution. SXGA+, SXGA, SVGA, VGA & compatible.
Smart data compression / expansion, and video scaling.
Convenient manual zoom and focus lens.
Preset image offset. Vertical digital keystone correction.
Settings for Standard, Presentation, Movie, Game, and sRGB operation.
Accepts Composite, S, and Component Video in all major standards.
Displays both Regular 4:3 and Widescreen 16:9 ratio video formats.
Supports most HDTV resolutions.
System Lock function. Keylock function.
Menu Driven Help System. Power Management function.
Wireless remote control.
Included Accessories:
Owner's manual. Quick guide. AC Power Cord. Lens Cover. VGA-type Computer Input Cable (HD15~HD15).
Wireless Remote Control and Batteries (2 x AA). Component Video Input Cable (HD15~3-RCA).
RS-232 Control Adapter (DB9~9-pin DIN).
Optional Accessories:
Replacement Lamp. NPC-1 Network Control.
Screen Brightness
Illumination Uniformity
Size of Color Palette
Contrast Ratio
Horizontal Resolution
Projection Lamp
Estimated Lamp Life
Imaging System
Color System
Screen Pixels
Total Pixels
Lens Type
Lens Specs
Lens Ratios
Image Diagonal
Image Width
Throw Distance
Front Elevation / Maximum Tilt
Anti Keystone
Vertical Keystone Correction
Scanning Frequency
Dot Clock
Image Orientation
Local Control / Power Management
Remote Projector Control
RS-232 Control Port
Computer Native Resolution
Computer: Compatibility
Computer: Formats
Computer: Image Sizing
Video: Color Systems
Video: Aspect Ratios Supported
Video: Image Sizing
Lamp contains Mercury. Do not put in trash. Dispose of as Hazardous Waste, according to Local, State or Federal Laws.
SPECIFICATIONS: Model EIP-2500
Standard, 2,500 / Eco 2,150 ANSI Lumens
2000:1 (Full ON/OFF)
600 TV Lines (DTV 720p)
Standard, 2,000 / Eco 3,000 Hours of Use
0.55 in. DDR XGA DMD™
4-Segment, 3X speed color wheel
(1024x768 ) in stripe configuration
Manual Zoom and Focus
Speed: f:2.4~2.6; FL:19~21.9 mm. (0.75~0.86in.)
Zoom Range: 1.15:1; Throw:Width: 1.72~1.99:1
102~762 cm (40~300 in.)
0.81~6.1m. (2.67~20 ft.)
1.4~12.2 m. (4.6~39.8 ft.)
Fixed Image Offset 110.5% of Image Height, up
Digital: up-to 13° up or down
Auto: H Sync. 15-70 kHz; V Sync. 45-85 Hz
Normal, Reversed, Inverted
Full Function / Auto Shut-Off
Wireless (Infra Red) x 1
SXGA+, SXGA, XGA, SVGA, VGA
1400x1050 through 640 x 480
Normal, or Smart Compressed or Expanded
NTSC / PAL / SECAM / NTSC 4.43 / PAL-M&N
Video Scaling Technology
EIKI Deutschland GmbH, Am Frauwald 12, 65510 Idstein
Telefon: (06126)-9371-0 Telefax: (06126)-9371-11 E-mail Info@eiki.de
Specifications subject to change without notice. ©2005 Eiki International, Inc. Issued September 12, 2005.
Eiki Industrial Co. Ltd. Naniwa Bldg. 4-12 Manzia-Cho Kita-Ku, Osaka 530 Japan
Tel: (01181) 6311-9479 Fax:(01181) 6311-8486 Email: japan@eiki.com URL: http://www.eiki.com
EIP-2500
Video: Resolutions Supported
SDTV
85%
EDTV
16.7 Million
HDTV
Signal Inputs:
1. Computer / Component (with breakout cable)
275 Watt SHP
2. Computer / Component (with breakout cable)
plus Audio shared - inputs 1 & 2
3. S-Video
4. Composite
plus Audio shared - inputs 3 & 4
786,432
Signal Outputs:
Compluter / Component shared between input 1 & 2
plus Audio shared - inputs 1 ~ 4
Audio: Amplifier
Audio: Built In Speakers
Operating Noise
Cabinet Size (HxWxD)
up to 8° up
Overall Size (HxWxD)
Weight
Packaged Size
Packaged Weight
12~108 MHz
Power Requirements
Power Consumption / Heat
Power Consumption / Heat - Eco
Power Cord
Mini DIN 9 Pin x 1
Safety Compliance
1024 x 768 (XGA)
Security Facilities
Operating Temperature
& MAC 13 ~ 21

User Maintenance

4:3 and 16:9
XGA
Ultraportable DLP™
Projector
EIP-2500
720p (50/60), 1035i (50/60), 1080i (50/60)
Stereo: MiniStereo x 1 (variable)
4 x 2.85 cm (1.6 x 1.1 in.) oval x 1
33 dBA Standard / 30 dBA in Eco mode
109 x 315 x 280 mm. (4.3 x 12.4 x 11.0 in.)
120 x 315 x 295 mm. (4.7 x 12.4 x 11.6 in.)
272 x 441 x 459 mm (10.7 x 17.4 x 18.1 in.)
350 W / 233 Kcal/hr (922 BTU/hr)
196 W / 169 Kcal/hr (669 BTU/hr)
1.8M (6' ) Type 3, Detachable
Clean Air Intake, Replace Lamp
480i, 540p, 576i
480p, 576p
HD15 x 1
HD15 x 1
Stereo: MiniStereo x 1
S-Video x 1
RCA x 1
Stereo: RCA x 2 (L&R)
HD15 x 1
Mono:2 Watt
3.9 kg (8.6 lbs.)
7.4 kg (16.3 lbs.)
100-240V AC, 50/60Hz
UL / cUL Listed
Kensington® Security Slot
0 0
5~35 C (41~95 F)
