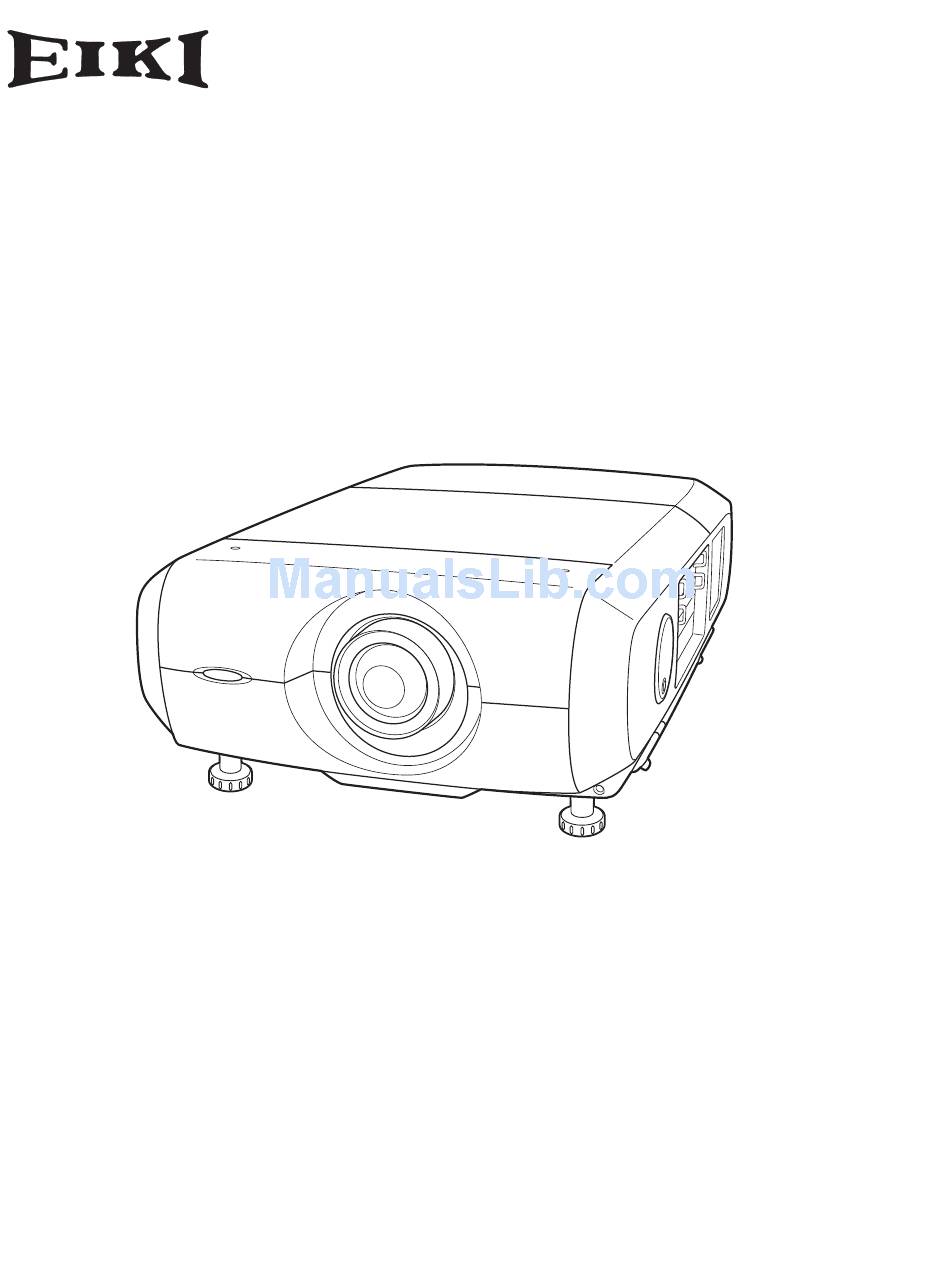

MULTIMEDIA PROJECTOR
LC-XT5
MODEL
Projection lens is optional.
✽
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multimedia Projector LC-XT5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eiki Multimedia Projector LC-XT5

Summary of Contents for Eiki Multimedia Projector LC-XT5

  • Page 1 MULTIMEDIA PROJECTOR LC-XT5 MODEL Projection lens is optional. ✽ OWNER’S MANUAL...

  • Page 2: Multilanguage Menu Display

    This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 1.07 billion colors, and matrix liquid crystal display (LCD) technology. Functionally Rich ◆ This projector has many useful functions such as lens shifting, ceiling and rear projection, variety of lens options, etc.

  • Page 3: Table Of Contents

    Features and Design . . . . . . . . . . . . . . . .  Table of Contents . . . . . . . . . . . . . . . . . .  To The Owner .

  • Page 4: To The Owner

    This symbol and recycle system are applied only to EU countries and not applied to the countries in the other area of the world. Your EIKI product is designed and manufactured with high quality materials and components which can be recycled and reused.

  • Page 5: Safety Instructions

    All the safety and operating instructions should be read before the product is operated. Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

  • Page 6: Air Circulation

    Safety Instructions Air Circulation Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. CAUTION Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.

  • Page 7: Installing The Projector In Proper Directions

    IMPORTANT! Filter Maintenance!! The projector uses a lamp which generates significant heat. The cooling fans and air vents are provided to dissipate the heat by drawing air into the housing and the filter is located in the intake vents to prevent dust from getting inside of the projector.

  • Page 8: Moving The Projector

    Safety Instructions Moving the Projector For safety, be sure to hold Carrying Handles on both sides by 2 or more people when moving a projector. Moving it improperly may result in damage of cabinet or person's injury. Replace lens cap and retract feet to prevent damage to lens and cabinet.

  • Page 9: Compliance

    Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 10: Part Names And Functions

    Front Back Bottom Part Names and Functions q Infrared Remote Receiver (Front) w Lens Cap (Option) e Projection Lens (Option) r Level and Pitch Adjust Handle t Carrying Handle y Side Control u Main On/Off Switch i Power Cord Connector o Indicator (Rear) CAUTION Hot air is exhausted from the exhaust vent.

  • Page 11: Input / Output Terminals And Jacks

    Input / Output Terminals and Jacks SERIAL PORT IN SERIAL PORT OUT R/C JACK RESET ✽ q SERIAL PORT IN TERMINAL If you control a projector by computer, you must connect a cable (not supplied) from your computer to this terminal. w SERIAL PORT OUT TERMINAL This terminal outputs signal from SERIAL PORT IN.

  • Page 12: Side Control And Indicators

    Part Names and Functions Side Control and Indicators FRONT INDICATORS Side Controls ZOOM buttons Zoom in and out the images. (p.27) MENU button Open or close the On-Screen MENU. (p.25, 26) POINT button - Select an item or adjust the value in the On- Screen MENU.

  • Page 13: Front Indicators

    Indicators Front Indicators LAMP READY WARNING TEMP. LAMP REPLACE Rear Indicators Part Names and Functions LAMP Indicator This indicator is dim when a projector is turned on. And bright when a projector is in stand-by mode. (pp.68-69) w READy indicator This indicator lights green when a projector is ready to be turned on.

  • Page 14: Remote Control

    Part Names and Functions Remote Control Note: ✔ To ensure safe operation, observe the following precautions: • D o not bend, drop, or expose the remote control to moisture or heat. • F or cleaning, use a soft dry cloth. Do not apply benzene, thinner, splay, or any other chemical materials. ON/STAND-By button Turn the projector on or off. (p.23) w AUTO PC button Automatically adjust the computer image to its optimum setting (pp.28, 34).

  • Page 15: Remote Control Battery Installation

    Remote Control Battery Installation Open the battery compartment lid. Pull up the lid and remove it. To insure safe operation, please observe the following precautions : ● Use two (2) AA or LR6 type alkaline batteries. ● Always replace batteries in sets. ●...

  • Page 16: Remote Control Code

    Part Names and Functions Remote Control Code The eight different remote control codes (Code 1–Code 8) are assigned to this projector. Switching the remote control codes prevents interference from other remote controls when several projectors or video equipment next to each other are operated at the same time. Change the remote control code for the projector first before changing that for the remote control.

  • Page 17: Installation

    Lens Installation Before setting up a projector, install Projection Lens on a Projector. 1. Before installation, check where a projector is used and prepare a suitable lens. For the specifications of Projection Lens, refer to the manual attached separately or contact sales dealer where you purchased the projector.

  • Page 18: Lens Shift Adjustment

    Installation Lens Shift Adjustment Projection lens can be moved from side to side and up and down with the motor-driven lens shift function. This function makes the positioning of images easy on the screen.(See page 27) The display position can be shifted upward up to 50% elevation of the display.

  • Page 19: Terminals Of Projector

    Terminals of Projector This projector applies various input/output terminals and 4 terminal slots for expansion to tune to diversity of signals from computers and video equipment. 4-built-in Terminal Slots enable you to arrange desired combinations of input sources just by changing Terminal Boards. For Terminal Boards, contact sales dealer where you purchased a projector.

  • Page 20: Connecting To Computer

    Installation Connecting to Computer Cables used for connection • VGA Cable (D-sub 15 pin) * • DVI Cable • BNC Cable (BNC x 5) ( *One cable is supplied; Other cables are not supplied with this projector.) Laptop type Monitor Output BNC Cable Terminals of a Projector...

  • Page 21: Connecting To Video Equipment

    Connecting to Video Equipment Cables used for connection • Video Cable (BNC x 3, BNC x 1) • SCART-VGA Cable • DVI Cable • S-Video Cable ( Cables are not supplied with the projector.) Video Source (example) Video Cassette Recorder Composite Component Video Output Video Output...

  • Page 22: Connecting The Ac Power Cord

    Installation Connecting the AC Power Cord This projector uses nominal input voltages of 200–240 V AC. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. If you are not sure of the type of power being supplied, consult your authorized dealer or service station.

  • Page 23: Basic Operation

    Turning On the Projector Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector. Connect the projector’s AC power cord into an AC outlet and turn the MAIN ON/OFF Switch to ON. The LAMP indicator lights red and the READY indicator lights green.

  • Page 24: Turning Off The Projector

    Basic Operation Turning Off the Projector Press the ON/STAND-BY button on the side control or on the remote control, and “Power off?” appears on the screen. Press the ON/STAND-BY button on the side control or on the remote control again to turn off the projector.

  • Page 25: How To Operate The On-Screen Menu

    How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. For each adjustment and setting procedure, refer to the respective sections in this manual. Press the MENU button on the side control or the remote control to display the On-Screen Menu.

  • Page 26: Menu Bar

    Basic Operation Menu Bar For detailed functions of each menu, see “Menu Tree” on pages 65-67 . For Computer Source Guide Window Show the selected Menu of the On-Screen Menu. Input Menu Used to select an input source Computer or Video (pp. 30- 32).

  • Page 27: Operating With Projector Control

    Operating with Projector Control Zoom Adjustment Display “Zoom” on the screen. Use the ZOOM buttons to zoom in and out the image. Focus Adjustment Display “Focus” on the screen. Use the FOCUS buttons to adjust focus of the image. Lens Shift Adjustment Display “Lens shift”...

  • Page 28: Operating With Remote Control

    Basic Operation Operating with Remote Control Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. AUTO PC button Press the AUTO PC button on the remote control to operate the Auto PC Adj.

  • Page 29: Keystone Button

    NO SHOW button Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. “No show” disappears after 4 seconds. IMAGE ADJ . button Press the IMAGE ADJ.

  • Page 30: Input Selection

    Input Side Control ZOOM FOCUS ON/STAND-BY LENS SHIFT INPUT 1/2 MENU INPUT 3/4 SELECT Side Control Operation AUTO PC ADJ. IMAGE SEL. Press the INPUT 1/2 or INPUT 3/4 button on the side control. It switches to INPUT 1 and INPUT 2, or INPUT 3 and INPUT 4 as you press the INPUT button.

  • Page 31: Computer Input Source Selection

    Computer Input Source Selection Menu Operation When Selecting the INPUT 1 with DVI/D-sub 15 Board Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the INPUT Menu icon. Use the Point ed buttons to move the red arrow pointer to the desired input and then press the SELECT button.

  • Page 32: Video Input Source Selection

    Input Selection Video Input Source Selection Menu Operation When Selecting the INPUT 1 with DVI/D-sub 15 Board When connecting to video equipment, select the type of Video source in the Source Select Menu. RGB (Scart) When scart video equipment is connected to the INPUT 1 (ANALOG) terminal, select RGB (Scart).

  • Page 33: Computer Input

    Computer System Selection Automatic Multi-Scan System This projector automatically tunes to various types of computers based on VGA, SVGA, XGA, SXGA, SXGA+, WXGA, or UXGA (refer to “Compatible Computer Specifications” on pages 70–71). If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings.

  • Page 34: Auto Pc Adjustment

    Computer Input Auto PC Adjustment Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical positions to conform to your computer. Direct Operation The Auto PC adjustment function can be operated directly by pressing the AUTO PC button on the remote control or the AUTO PC ADJ.

  • Page 35: Manual Pc Adjustment

    Manual PC Adjustment Some computers employ special signal formats which may not be tuned by Multi-Scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those special signal formats. The projector has 10 independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer.
  • Page 36 Computer Input Reset To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select [Yes]. All adjustments will return to their previous figures. Mode free To clear the adjusted data, select Mode free and then press the SELECT button.

  • Page 37: Image Level Selection

    Image Level Selection Direct Operation Press the IMAGE SEL. button on the remote control or on the side control to select the desired image level. Standard Real Image1 • • • Image 10 Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Image Select Menu icon.

  • Page 38: Screen Size Adjustment

    Computer Input Screen Size Adjustment Select the desired screen size that conforms to the input signal source. Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Screen Menu icon. Use the Point ed buttons to move the red frame pointer to the desired function and then press the SELECT button.
  • Page 39 Keystone This function is used to store or reset the keystone correction when the AC power cord is unplugged. Use the Point 7 8 buttons to switch between each option. Store. . . Keep the keystone correction even when the AC power cord is unplugged.

  • Page 40: Video Input

    Video System Selection Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the AV System Menu icon. Use the Point ed buttons to move the red arrow pointer to the desired system and then press the SELECT button.

  • Page 41: Image Level Selection

    Image Level Selection Direct Operation Press the IMAGE SEL. button on the remote control or on the side control to select the desired image level. Standard Cinema Image1 • • • Image 10 Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Image Select Menu icon.

  • Page 42: Screen Size Adjustment

    Video Input Screen Size Adjustment Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Screen Menu icon. Use the Point ed buttons to move the red frame pointer to the desired function and then press the SELECT button.
  • Page 43 Keystone This function is used to store or reset the keystone correction when the AC power cord is unplugged. Use the Point 7 8 buttons to switch between each option. Store. . . Keep the keystone correction even when the AC power cord is unplugged.

  • Page 44: Picture Image

    Image Adjustment Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Image Adjust Menu icon. Use the Point ed buttons to move the red frame pointer to the desired item and then press the SELECT button to display the adjustment dialog box.
  • Page 45 COLOR SELECTION MODE (continued) COLOR M . Return to the COLOR MANAGEMENT POINTER. (If you press the MENU button on the side control or the remote control, it returns to the COLOR MANAGEMENT POINTER and you will need to reselect and readjust the color.) MENU Return to the IMAGE ADJUST Menu.
  • Page 46 Picture Image White balance (Red/Green/Blue) Press the Point 7 button to lighten red/green/blue tone; press the Point 8 button to deepen red/green/blue tone (from 0 to 63). Offset (Red/Green/Blue) Press the Point 7 button to lighten red/green/blue tone of the black level of an image;...

  • Page 47: Setting

    Setting This projector has a Setting menu that allows you to set up other various functions. Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Setting Menu icon. Use the Point ed buttons to move the red frame pointer to the desired item and then press the SELECT button.
  • Page 48 Setting Logo This function allows you to customize the screen logo with Logo select, Capture, and Logo PIN code lock functions. ✔ Note: • When “On” is selected in the Logo PIN code lock function, Logo select and Capture functions cannot be selected. Logo select This function decides on the starting-up display from among the following options. User . . . Show the image you captured. Default .
  • Page 49 Logo PIN code lock This function prevents an unauthorized person from changing the screen logo. Off ..The screen logo can be changed freely from the Logo Menu. On ..The screen logo cannot be changed without a Logo PIN code.
  • Page 50 Setting Lamp mode This Projector is equipped with 4 Projection Lamps and the number of using lamps can be switched to 4 lamps or 2 lamps. Using 2 lamps maintains the life of Projection Lamps. To change over Lamp Mode Press the Point buttons to move the red frame pointer to “Lamp mode”...
  • Page 51 RC sensor Select a location of the infrared remote receiver of the remote control. See “Remote Control Receivers and Operating Range” on page 15 for details. Both ... Activate both the front and back receiver. Front ... Activate only the front receiver. Back ...
  • Page 52 Setting Security Key lock This function locks the side control and remote control buttons to prevent operation by unauthorized persons..Unlocked..Lock the side control buttons. To unlock, use the remote control. .
  • Page 53 Enter a PIN code Use the Point buttons on the side control or on the remote control to enter a number. Press the Point button to fix the number and move the red frame pointer to the next box. The number changes to “✳.
  • Page 54 Setting Lamp counter This function is used to reset the lamp counter. When the lamp life reaches a recommended lamp replacement time, the time shown in the dialog box turns red and the Lamp replacement icon appears on the screen, indicating that the end of lamp life is approaching.

  • Page 55: Maintenance And Care

    Maintenance and Care Air Filter Care and Cleaning Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector.

  • Page 56: Lamp Management

    Maintenance and Care Lamp Management This Projector is equipped with 4 Projection Lamps to ensure brighter image and those lamps are controlled by the Lamp Management Function. The Lamp Management Function detects the status of all lamps and shows the status on screen or on the LAMP REPLACE indicator. This function also automatically controls the Lamp Mode when any of lamps is out for the end of life or malfunctions.

  • Page 57: Lamp Replacement

    Lamp Replacement When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP REPLACE indicator lights orange. Replace the lamp with a new one promptly. The timing when the LAMP REPLACE indicator should light is depending on the lamp mode. Indicators READY Lamp replacement icon...

  • Page 58: Resetting The Lamp Counter

    Maintenance and Care Resetting the Lamp Counter Be sure to reset the Lamp counter after the lamp is replaced. When the Lamp counter is reset, the LAMP REPLACE indicator stops lighting and the Lamp replacement icon disappears. Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Setting Menu icon Use the Point ed buttons to move the red frame pointer...

  • Page 59: Lamp Handling Precautions

    LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard. Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no ●...

  • Page 60: Cleaning The Projection Lens

    Maintenance and Care Cleaning the Projection Lens Unplug the AC power cord before cleaning. Gently wipe the projection lens with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the lens.

  • Page 61: Warning Indicators

    Warning Indicators The WARNING indicators show the state of the function which protects the projector. Check the state of the WARNING indicators and the READY indicator to take proper maintenance. The projector is shut down and the WARNING TEMP. indicator is blinking red. When the temperature inside the projector reaches a certain level, the projector will be automatically shut down to protect the inside of the projector.

  • Page 62: Appendix

    Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. 1. Make sure you have properly connected the projector to peripheral equipment as described on pages 20–21. 2. Check the cable connection. Make sure that all computers, video equipment, and power cords are properly connected.
  • Page 63 Picture is not bright – Check if “Contrast” or “Brightness” are adjusted properly. (See page 44) enough . – Check if “Image level” is selected properly. (See pages 37 , 41) – Check the Lamp control function. ( See “SETTING” section on page 50) –...
  • Page 64 Appendix WARNING: High voltages are used to operate this projector . Do not attempt to open the cabinet . If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service.

  • Page 65: Menu Tree

    Menu Tree Computer Input/Video Input Input Input 1 Input 2 Network Information Information Input H-sync freq. V-sync freq. Screen Language Lamp mode Lamp control Power management Security Remote control code ✔ Note: • The Menu display varies depending on the input signal. RGB (PC analog) Go to System RGB (Scart) RGB (PC digital) Go to System RGB (AV HDCP)
  • Page 66 Appendix Computer Input System ✽ System displayed in the System Menu varies depending on the input signal. PC Adjust Auto PC adj. Fine sync. Total dots Position H Position V Current mode Clamp Display area - H Display area - V Reset Mode free Store...
  • Page 67 Computer Input/Video Input Setting Language Menu Display Background Logo Lamp mode Lamp control Fan control Remote Control RC sensor Power management On start Security Projector ID Lamp counter Filter counter Test pattern Factory default Quit 12 languages provided. Quit Position/Simple Menu On/Countdown Off/Off Blue/User/Black User/Default/Off...

  • Page 68: Indicators And Projector Condition

    Appendix Indicators and Projector Condition Check the indicators for the projector condition. The projector is operating normally . Indicators WARNING LAMP READY TEMP . green • • • on • • • dim • • • off When the projection lamp reaches its end of life, the LAMP REPLACE indicator lights orange. ✽...
  • Page 69 The projector is detecting abnormal condition . Indicators WARNING LAMP LAMP READY TEMP . REPLACE green orange ✽ ✽ ✽ ✽ ✽ ✽ ✽ ✽ Projector Condition The temperature inside the projector is elevated close to the abnormally high level. The temperature inside the projector is abnormally high.

  • Page 70: Compatible Computer Specifications

    Appendix Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V- and H-Frequency mentioned below and less than 230 MHz of Dot Clock. PC Adjustment is limited when selecting these modes. ON-SCREEN RESOLUTION H-Freq .(kHz) V-Freq .(Hz) DISPLAy VGA 1 640x480...
  • Page 71 When an input signal is digital from the DVI terminal, refer to the chart below. ON-SCREEN RESOLUTION H-Freq .(kHz) V-Freq .(Hz) DISPLAy D-VGA 640x480 31.470 D-480p 720x480 31.470 D-575p 720x575 31.250 D-SVGA 800x600 37 .879 D-XGA 1024x768 43.363 D-WXGA 1 1366x768 48.360 D-WXGA 2...

  • Page 72: Technical Specifications

    Appendix Technical Specifications Mechanical Information Projector Type Dimensions (W x H x D) Net Weight Feet Adjustment Panel Resolution LCD Panel System Panel Resolution Number of Pixels Signal Compatibility Color System High Definition TV Signal Scanning Frequency Optical Information Projection Lamp Interface Input 1 Input 2...

  • Page 73: Optional Parts

    ● The specifications are subject to change without notice. ● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels. ●...

  • Page 74: Configurations Of Terminals

    Appendix Configurations of Terminals ANALOG (Mini D-sub 15 pin) DIGITAL DVI-D (DVI 4 PIN) USB CONNECTOR (Series B) CONTROL PORT CONNECTOR (D-sub 9 pin) +5V Power Red Input Green Input Ground (Vert. sync.) Blue Input Sense 0 Sense 2 DDC Data Ground (Horiz.sync.) Horiz.

  • Page 75: Pin Code Number Memo

    PIN Code Number Memo Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service station. PIN Code Lock No. Logo PIN Code Lock No.

  • Page 76: Dimensions

    Appendix Dimensions Unit : inch (mm) 1.28 (32.5) 17.56 (446) 2.36 (60) 9.9 (251.5) 7.01 (178) 7.01 (178) 22.87 (581) 1.57 (40) 9.90 (251.5) 8.27 (210) 8.27 (210) 20.58 (522.7)

  • Page 77: Serial Control Interface

    Serial Control Interface This projector provides a function to control and monitor the projector's operations by using the RS-232C serial port. Operation Connect a RS-232C serial cross cable to SERIAL PORT IN on the projector and serial port on the PC. (See p.11) Launch a communication software provided with PC and setup the communication condition as follows:...

  • Page 78: Status Read Command

    Appendix Status Read Command Format The command is sent from PC to the projector with the format below; 'CR' [Command] 'CR' Command: one character (refer to the command table below. The projector decodes the command and returns the 'Charactor string' with the format below; Command Function Status Read...
  • Page 79 Fax : 86-21-5396-0318 E-Mail : info@eiki-china.com WorldWide Website http://www .eiki .com KE3B Canada EIKI CANADA - Eiki International, Inc. P .O. Box 156, 310 First St. - Unit 2, Midland, ON, L4R 4K8, Canada Tel : 800-563-3454 (705)-527-4084 Fax : 800-567-4069 (705)-527-4087 E-Mail : canada@eiki.com...
