Intel Desktop Board D845GVSR Technical Product Specification

2.8.1 Back Panel Connectors

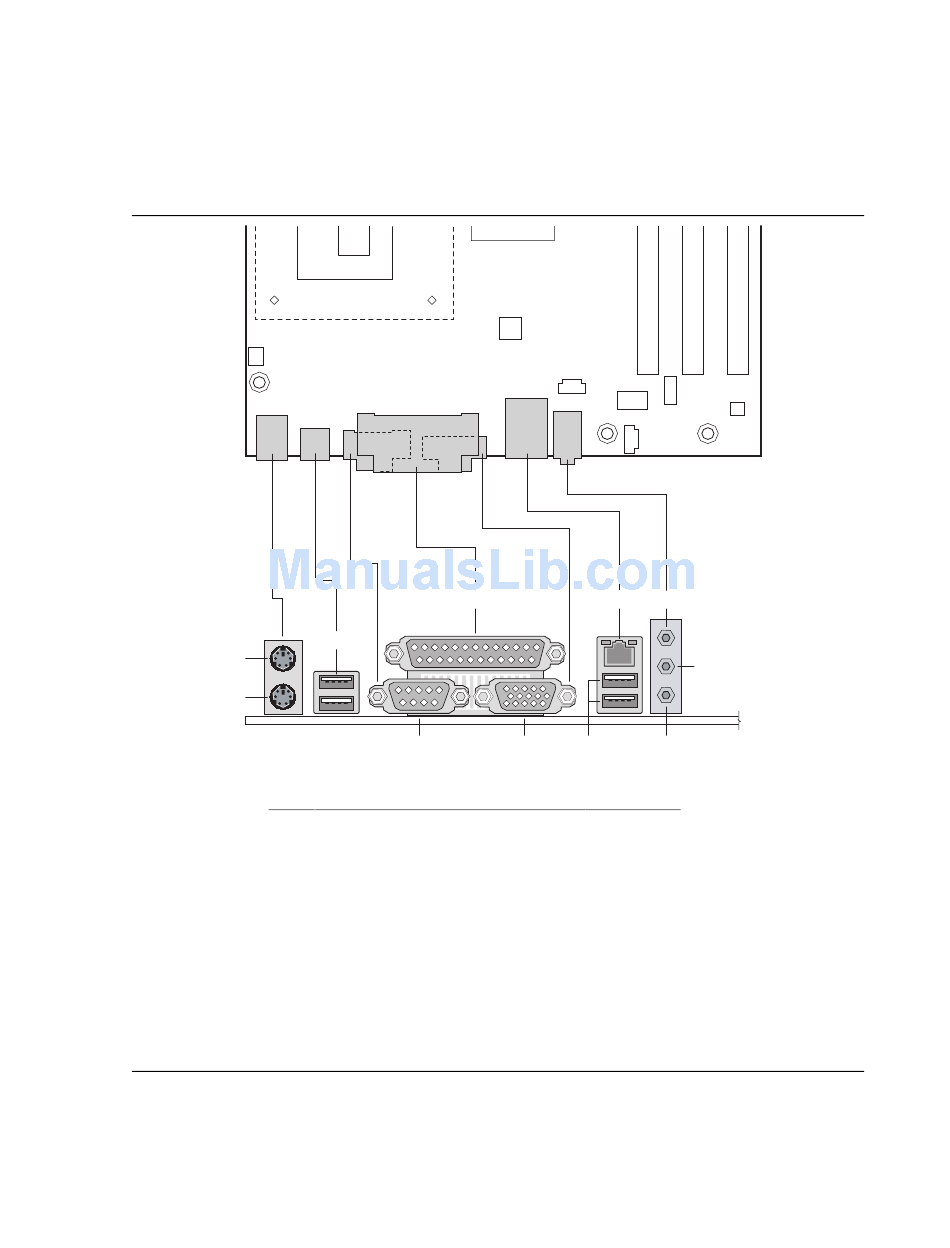

Figure 4 shows the location of the back panel connectors. The back panel connectors are
color-coded in compliance with PC 99 recommendations. The figure legend below lists the
colors used.
A
B
48
C
D
Item Description
A PS/2 mouse port
B PS/2 keyboard port
C USB ports
D Serial port A
E Parallel port
F VGA
G LAN (optional)
H USB ports
I Audio line in
J Mic in
K Audio line out
Figure 4. Back Panel Connectors
E G
F H
Color
Green
Purple
Black
Teal
Burgundy
Dark blue
Black
Black
Light blue
Pink
Lime green
I
K
J
OM16235
