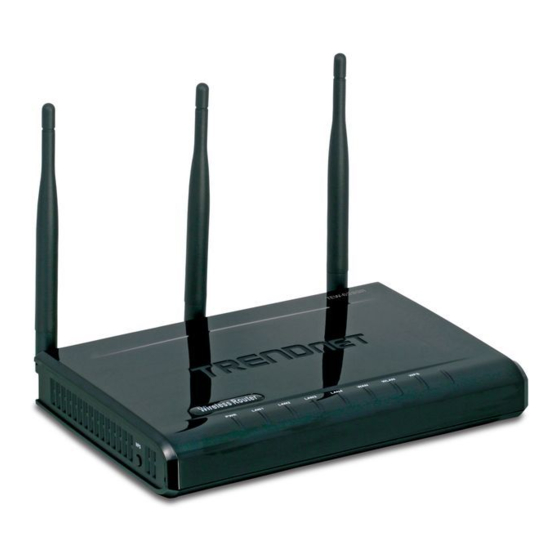

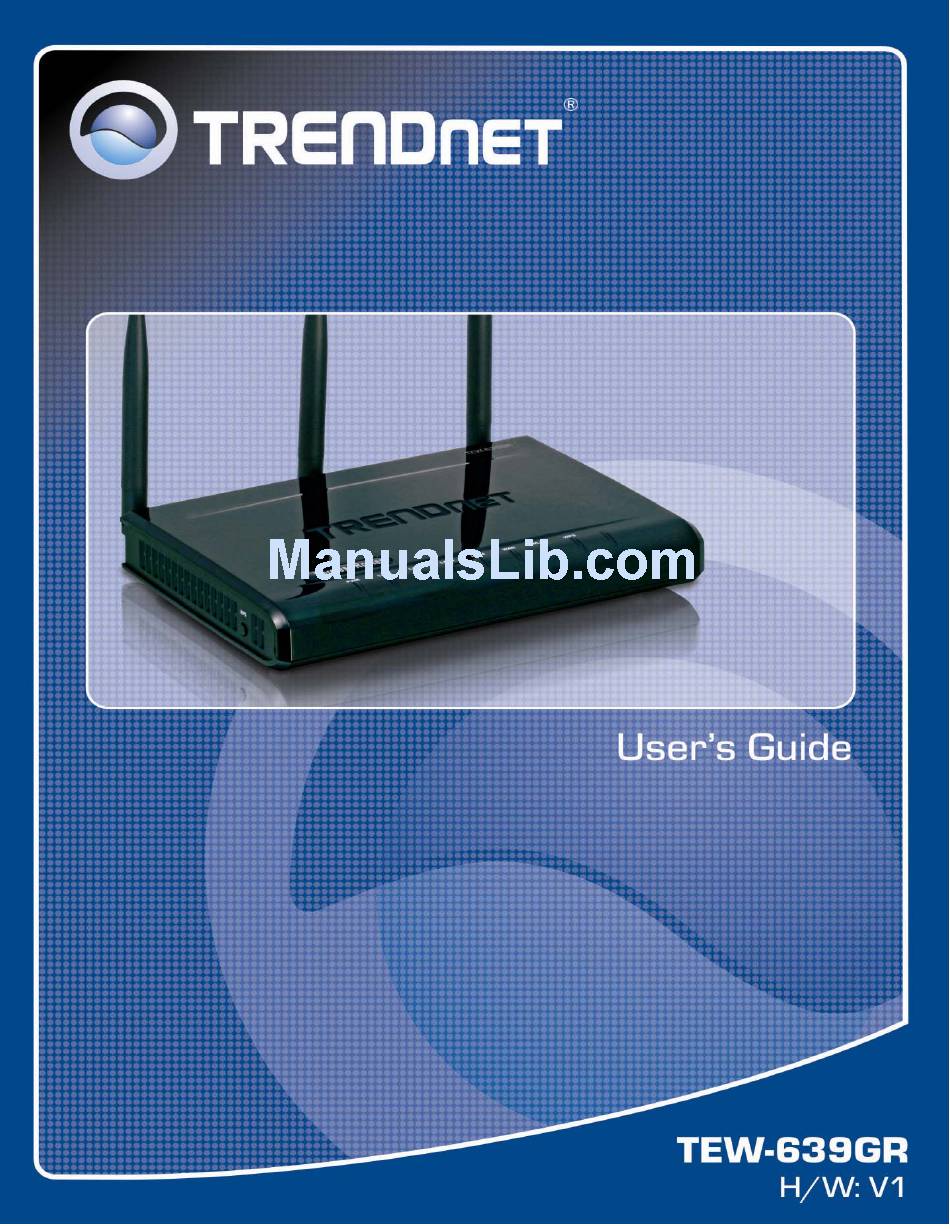

TRENDnet TEW-639GR - Wireless Router User Manual

User guide
Hide thumbs Also See for TEW-639GR - Wireless Router:
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEW-639GR - Wireless Router and is the answer not in the manual?

Questions and answers

Related Manuals for TRENDnet TEW-639GR - Wireless Router

Summary of Contents for TRENDnet TEW-639GR - Wireless Router

  • Page 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    Table of Contents    1. Getting Started with the TEW‐639GR ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5               1.1. Package Contents ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐ 5                         1.2. Minimum System Requirements ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5                       2. Wireless LAN Networking ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 6          2.1.
  • Page 4 4.3.4 Advanced: Access Control ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 34  4.3.5 Advanced: Special Applications ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 35  4.3.6 Advanced: Gaming ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 37  4.3.7 Advanced: Inbound Filter ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 39  4.3.8 Advanced: Schedule ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 40      Administrator ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 41  4.4. 4.4.1 Administrator: Management ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 41  4.4.2 Administrator: Upload Firmware ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 43  4.4.3 Administrator: Setting Management ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 44  4.4.4 Administrator: Time ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 45  4.4.5 Administrator: Status ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 46                      Help ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐47  ...

  • Page 5: Getting Started With The Tew-639Gr

    1. Getting Started with the TEW-639GR Congratulations on purchasing the TEW-639GR! This manual provides information for setting up and configuring the TEW-639GR. This manual is intended for both home users and professionals. 1.1 Package Contents TEW-639GR 2.4GHz 300Mbps Wireless N Gigabit Router CD-ROM (User’s Guide) Multi-Language Quick Installation Guide CAT-5 Ethernet Cable...

  • Page 6: Wireless Lan Networking

    2. Wireless LAN Networking This section provides background information on wireless LAN networking technology. Consult the Glossary for definitions of the terminology used in this section. HE INFORMATION IN THIS SECTION IS FOR YOUR REFERENCE. HANGING NETWORK SETTINGS AND PARTICULARLY SECURITY SETTTINGS SHOULD ONLY BE DONE BY AN AUTHORIZED ADMINISTRATOR.
  • Page 7 Traffic Control with Virtual Server and DMZ UPnP (Universal Plug & Play) and ALGs Support for Internet applications such as Email, FTP, Gaming, Streaming, Net Meeting, Telnet, and more Provides Additional Security of Enable/Disable SSID, Internet Access Control (IP/Port range blocking) Supports IPSec, L2TP and PPTP VPN Pass-Through Sessions Flash Memory for Firmware Upgrade, Save/Restore Settings...

  • Page 8: Hardware Overview

    3. Hardware Overview 3.1 LED Indications: (from left to right) LAN1 LAN2 LAN3 LAN4 Wireless Reserve Reserve 3.2 Rear panel: (from left to right) DC-IN RESET LAN1 LAN2 LAN3 LAN4...

  • Page 9: Installation Considerations

    3.3 Installation Considerations The TEW-639GR 2.4GHz Wireless N Gigabit Router lets you access your network, using a wireless connection, from virtually anywhere within its operating range. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range.

  • Page 10: Using The Configuration Menu

    4. Using the Configuration Menu Whenever you want to configure your TEW-639GR, you can access the Configuration Menu through your PC by opening the Web-browser and typing in the IP Address of the TEW-639GR. The TEW-639GR’s default IP Address is http://192.168.10.1 Open the Web browser.

  • Page 11: Network

    4.1 Network 4.1.1 Network: WAN Setting WAN Connection Type There are several connection types to choose from: Static IP, DHCP, PPPoE, PPTP, L2TP, and Russia PPTP. If you are unsure of your connection method, please contact your Internet Service Provider. Static Used when your ISP provides you a set IP address that does not change.
  • Page 12 Maximum Idle Time: Time interval the machine can be idle before the PPPoE connection is disconnected. The Maximum Idle Time value is only used for the "On demand" and "Manual" reconnect modes. L2TP L2TP (Layer Two Tunneling Protocol) uses a virtual private network to connect to your ISP. This method of connection requires you to enter a Username and Password (provided by your Internet Service Provider) to gain access to the Internet.
  • Page 13 WAN MTU Setting The Maximum Transmission Unit (MTU) is a parameter that determines the largest packet size (in bytes) that the router will send to the WAN. If LAN devices send larger packets, the router will break them into smaller packets. Ideally, you should set this to match the MTU of the connection to your ISP.

  • Page 14: Network: Lan Setting

    4.1.2 Network: LAN Setting...
  • Page 15 IP Address The IP address of the this device on the local area network. Assign any unused IP address in the range of IP addresses available for the LAN. Subnet Mask The subnet mask of the local area network. DHCP Server Settings DHCP stands for Dynamic Host Configuration Protocol.
  • Page 16 MAC Address To input the MAC address of your system, enter it in manually or connect to the router's Web-Management interface from the system and click the Copy Your PC's MAC Address button. A MAC address is usually located on a sticker on the bottom of a network device. The MAC address is comprised of twelve digits.

  • Page 17: Network: Dhcp Client List

    4.1.3 Network: DHCP Client List In this section you can see the connected LAN devices are currently receiving an IP addresses.

  • Page 18: Wireless

    4.2 Wireless 4.2.1 Wireless: Basic...
  • Page 19 Radio On/Off This indicates the wireless operating status. The wireless can be turned on or off by the slide switch. When the radio is on, the following parameters are in effect. Wireless Mode If all of the wireless devices you want to connect with this router can connect in the same transmission mode, you can improve performance slightly by choosing the appropriate wireless mode.
  • Page 20 (Note that WDS security is incompatible with mixed mode, like WPAPSK+WPA2PSK mixed, WEP AUTO and 802.1x, both feature cannot be used at the same time). Configuring WDS with TEW-639GR Enable the option for WDS and input the MAC Address of the wireless device that also supports WDS in to the blank fields.

  • Page 21: Wireless: Advanced

    4.2.2 Wireless: Advanced Beacon Interval Beacons are packets sent by a wireless router to synchronize wireless devices. Specify a Beacon Period value between 20 and 1000. The default value is set to 100 milliseconds. DTIM A DTIM is a countdown informing clients of the next window for listening to broadcast and multicast messages.
  • Page 22 TX Burst Allows the wireless Router to deliver better throughput in the same period and environment in order to increase speed. Pkt_Aggregate Increase efficiency by aggregating multiple packets of application data into a single transmission frame. In this way, 802.11n networks can send multiple data packets with the fixed overhead cost of just a single frame.

  • Page 23: Wireless: Security

    4.2.3 Wireless: Security Security Mode Unless one of these encryption modes is selected, wireless transmissions to and from your wireless network can be easily intercepted and interpreted by unauthorized users. A method of encrypting data for wireless communication intended to provide the same level of privacy as a wired network.
  • Page 24 Cipher Type: The encryption algorithm used to secure the data communication. TKIP (Temporal Key Integrity Protocol) provides per-packet key generation and is based on WEP. AES (Advanced Encryption Standard) is a very secure block based encryption. With the "TKIP and AES" option, the router negotiates the cipher type with the client, and uses AES when available.

  • Page 25: Wireless: Wps

    4.2.4 Wireless: WPS...
  • Page 26 Enable Enable the WPS feature. Lock Wireless Security Settings Locking the wireless security settings prevents the settings from being changed by any new external registrar using its PIN. Devices can still be added to the wireless network using WPS. PIN Settings A PIN is a unique number that can be used to add the router to an existing network or to create a new network.

  • Page 27: Wireless: Station List

    4.2.5 Wireless: Station List All the wireless clients connecting to the router will be shown here, you could monitor your network and prevent any unauthorized wireless connection easily.

  • Page 28: Advanced

    Advanced 4.3.1 Advanced: DMZ DMZ Setting DMZ means "Demilitarized Zone." If an application has trouble working from behind the router, you can expose one computer to the Internet and run the application on that computer. When a LAN host is configured as a DMZ host, it becomes the destination for all incoming packets that do not match some other incoming session or rule.
  • Page 29 Port forwarding is rather like a selective DMZ, where incoming traffic targeted at one or more ports is forwarded to a specific LAN host (thereby not exposing as many ports as a DMZ host). Port triggering is a special form of port forwarding, which is activated by outgoing traffic, and for which ports are only forwarded while the trigger is active.

  • Page 30: Advanced: Virtual Server

    4.3.2 Advanced: Virtual Server Enable Specifies whether the entry will be active or inactive. Name Assign a meaningful name to the virtual server, for example Web Server. Several well-known types of virtual server are available from the "Application Name" drop-down list. Selecting one of these entries fills some of the remaining parameters with standard values for that type of server.
  • Page 31 Private Port The port that will be used on your internal network. Public Port The port that will be accessed from the Internet. Schedule Select a schedule for when the service will be enabled. If you do not see the schedule you need in the list of schedules.

  • Page 32: Advanced: Routing

    4.3.3 Advanced: Routing Add/Edit Route Adds a new route to the IP routing table or edits an existing route. Destination IP The IP address of packets that will take this route. Gateway Specifies the next hop to be taken if this route is used. A gateway of 0.0.0.0 implies there is no next hop, and the IP address matched is directly connected to the router on the interface specified: LAN or WAN.
  • Page 33 Metric The route metric is a value from 1 to 16 that indicates the cost of using this route. A value of 1 is the lowest cost, and 15 is the highest cost. A value of 16 indicates that the route is not reachable from this router.

  • Page 34: Advanced: Access Control

    4.3.4 Advanced: Access Control Enable By default, the Access Control feature is disabled. If you need Access Control, check this option. Note: When Access Control is disabled, every device on the LAN has unrestricted access to the Internet. However, if you enable Access Control, Internet access is restricted for those devices that have an Access Control Policy configured for them.

  • Page 35: Advanced: Special Applications

    4.3.5 Advanced: Special Applications Add/Edit Port Trigger Rule Enable Specifies whether the entry will be active or inactive. Name Enter a name for the Special Application Rule, for example Game App, which will help you identify the rule in the future. Alternatively, you can select from the Application list of common applications.
  • Page 36 Protocol Select the protocol used by the service. The common choices -- UDP, TCP, and both UDP and TCP -- can be selected from the drop-down menu. Trigger Port Enter the outgoing port range used by your application (for example 6500-6700). Schedule Select a schedule for when this rule is in effect.

  • Page 37: Advanced: Gaming

    4.3.6 Advanced: Gaming Add/Edit Port Range Rule Use this section to add a Port Range Rule to the following list or to edit a rule already in the list. Rule Enable Specifies whether the entry will be active or inactive. Rule Name Give the rule a name that is meaningful to you, for example Game Server.
  • Page 38 UDP Ports to Open Enter the UDP ports to open (for example 6159-6180, 99). Inbound Filter Select a filter that controls access as needed for this rule. Schedule Select a schedule for the times when this rule is in effect. Clear Re-initialize this area of the screen, discarding any changes you have made.

  • Page 39: Advanced: Inbound Filter

    4.3.7 Advanced: Inbound Filter Add/Edit Inbound Filter Rule Here you can add entries to the Inbound Filter Rules List below, or edit existing entries. Name Enter a name for the rule that is meaningful to you. Action The rule can either Allow or Deny messages. Remote IP Range Define the ranges of Internet addresses this rule applies to.

  • Page 40: Advanced: Schedule

    4.3.8 Advanced: Schedule Add/Edit Schedule Rule In this section you can add entries to the Schedule Rules List below or edit existing entries. Name Give the schedule a name that is meaningful to you, such as "Weekday rule". Day(s) Place a checkmark in the boxes for the desired days or select the All Week radio button to select all seven days of the week.

  • Page 41: Administrator

    4.3 Administrator 4.4.1 Administrator: Management...
  • Page 42 Admin Password Enter a password for the user "admin", who will have full access to the Web-based management interface. Device Name The name of the router can be changed here. Enable Dynamic DNS Enable this option only if you have purchased your own domain name and registered with a dynamic DNS service provider.

  • Page 43: Administrator: Upload Firmware

    4.4.2 Administrator: Upload Firmware Once you have a firmware update on your computer, use this option to browse for the file and then upload the information into the router.

  • Page 44: Administrator: Setting Management

    4.4.3 Administrator: Setting Management Export Settings This option allows you to export and then save the router's configuration to a file on your computer. Be sure to save the configuration before performing a firmware upgrade. Import Settings Use this option to restore previously saved router configuration settings. Load Factory Defaults This option restores all configuration settings back to the settings that were in effect at the time the router was shipped from the factory.

  • Page 45: Administrator: Time

    4.4.4 Administrator: Time Time Configuration Current Router Time Displays the time currently maintained by the router. If this is not correct, use the following options to configure the time correctly. Time Zone Select your local time zone from pull down menu. Automatic Time Configuration Enable NTP Server Select this option if you want to synchronize the router's clock to a Network Time Server over...

  • Page 46: Administrator: Status

    4.4.5 Administrator: Status The device status.

  • Page 47: Help

    4.5 Help Help section provides web-based explanations on each configurable field.

  • Page 48: Network Glossary

    Network Glossary Access Point - A device that allows wireless-equipped computers and other devices to communicate with a wired network. also used to expand the range of a wireless network. Ad-hoc - A group of wireless devices communicating directly with each other (peer-to-peer) without the use of an access point.
  • Page 49 FTP (File Transfer Protocol) - A protocol used to transfer files over a TCP/IP network. Full Duplex - The ability of a networking device to receive and transmit data simultaneously. Gateway - A device that interconnects networks with different, incompatible communications protocols. Half Duplex - Data transmission that can occur in two directions over a single line, but only one direction at a time.
  • Page 50 Server - Any computer whose function in a network is to provide user access to files, printing, communications, and other services. SMTP (Simple Mail Transfer Protocol) - The standard e-mail protocol on the Internet. SNMP (Simple Network Management Protocol) - A widely used network monitoring and control protocol. SPI (Stateful Packet Inspection) Firewall - A technology that inspects incoming packets of information before allowing them to enter the network.

  • Page 51: Limited Warranty

    TEW-639GR 3 years If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the defective product or deliver to customer an equivalent product to replace the defective item. All products that are replaced will become the property of TRENDnet. Replacement products may be new or reconditioned.
