Summary of Contents for Allied Vision Technologies Prosilica GE1650
- Page 1 GE1650 / GE1650C Technical Manual 700029A Updated September 15, 2010 Allied Vision Technologies Canada Inc. 101-3750 North Fraser Way Burnaby, BC V5J 5E9 / Canada...
-
Page 2: Table Of Contents
System Optimization ....................21 Trouble Shooting ..................... 23 Addendum ........................26 GE IO Schematic ....................... 27 Hirose 12-pin Trigger Schematic ................. 28 Mini-SMB Trigger Schematic ..................29 Trigger Timing Diagram ..................... 30 Notes on Triggering ....................31 GE1650 Technical Manual Page 2... -
Page 3: Legal Notice
Allied Vision Technologies customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Allied Vision Technologies for any damages resulting from such improper use or sale. -
Page 4: Contacting Allied Vision Technologies
Contacting Allied Vision Technologies • Technical information: http://www.alliedvisiontec.com • Support: support@alliedvisiontec.com Allied Vision Technologies GmbH (Headquarters) Taschenweg 2a 07646 Stadtroda, Germany Tel.: +49.36428.677-0 Fax.: +49.36428.677-28 e-mail: info@alliedvisiontec.com Allied Vision Technologies Canada Inc. 101-3750 North Fraser Way Burnaby, BC, V5J 5E9, Canada... -
Page 5: Introduction

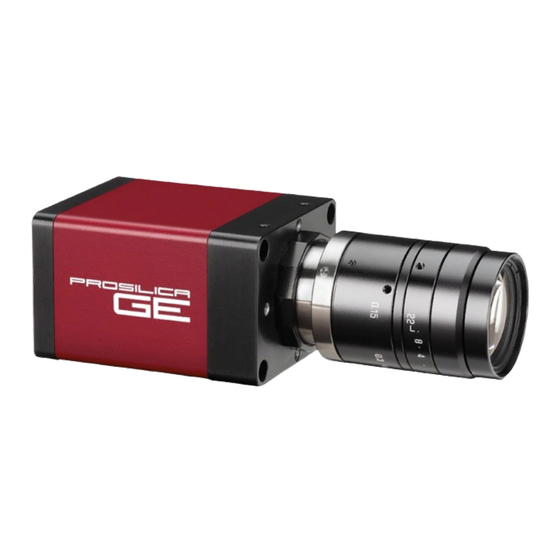

Introduction The GE1650 series of cameras are sensitive, 30 frames per second, 2 megapixel, Gigabit Ethernet cameras based on the Kodak KAI-2020M CCD sensor. Precautions READ INSTALLATION GUIDE CAREFULLY. This document contains specific information which is necessary for the correct operation and treatment of this product. -
Page 6: Specifications
MAINTAIN A REASONABLE OPERATING TEMPERATURE. IF THE CAMERA IS TO BE OPERATED IN A WARM ENVIRONMENT, IT IS SUGGESTED THAT THE CAMERA BE MOUNTED ON A HEAT SINK SUCH AS A METAL BRACKET AND THAT THERE IS SUFFICIENT AIR FLOW. GE1650 Technical Manual Page 6... -
Page 7: Supported Features
*On monochrome versions only. ***VERTICAL BINNING AND VERTICAL ROI CAN SIGNIFICANTLY INCREASE THE POWER CONSUMPTION OF THE CAMERA AND SHOULD ONLY BE USED INTERMITTENTLY AND WITH CAREFUL ATTENTION TO THE OPERATING TEMPERATURE OF THE CAMERA. GE1650 Technical Manual Page 7... -
Page 8: Mechanical
Mechanical Figure 1. GE SERIES mechanical dimensions. GE1650 Technical Manual Page 8... -
Page 9: Connections
Connections Figure 2. GE SERIES connection diagram. GE1650 Technical Manual Page 9... - Page 10 This input signal allows the camera to be synchronized to some external event. The camera can be programmed to trigger on the rising or falling edge of this signal. The camera can also be programmed to capture an image at some programmable delay time after the trigger event. GE1650 Technical Manual Page 10...
- Page 11 Amp 413985-3 which can be used with RG174 coaxial cable. Contact AVT to purchase cabling. The Mini-SMB Trigger Input is internally connected to the Trigger Input (Pin 1) of the General Purpose I/O Port (Item 2 above). Therefore see this section for more detail. GE1650 Technical Manual Page 11...
- Page 12 Item 5: Status LED 1 LED COLOR STATUS Solid Green Ethernet link established. Flashing Green Ethernet activity. Item 6: Status LED 2 LED COLOR STATUS Solid Green Normal operation. Solid Orange Firmware missing. Flashing Orange Camera fault. GE1650 Technical Manual Page 12...
- Page 13 AVT (AVT P/N 02-8000A for North America or AVT P/N 02-8001A for a Universal supply). The inner conductor is positive power and the external conductor is ground. THE CAMERA POWER SUPPLY OPERATES MOST EFFICIENTLY AT 12V. GE1650 Technical Manual Page 13...
-
Page 14: Cleaning The Sensor
Repeat this process until the debris is gone. If this process fails to remove the debris, then contact AVT. GE1650 Technical Manual Page 14... -
Page 15: Adjusting The C-Mount
The distance required will depend on the lens used but typically 30 to 50 feet should suffice. Make sure the lens is firmly threaded onto the c-mount ring. Rotate the lens and c- mount ring until the image is focused. Carefully tighten locking ring. Recheck focus. GE1650 Technical Manual Page 15... -
Page 16: Camera Installation
Prosilica GE cameras: • Intel PRO/1000 • D-Link DGE-550T • SMC EZ Card 1000 Gigabit Ethernet cards supporting this feature can also be purchased with the camera (AVT P/N 02- 3002A). GE1650 Technical Manual Page 16... - Page 17 Click OK to save changes. Note that if Windows reports a conflict with the above IP address, simply repeat the above steps and change the last digit of the IP address to a different value. GE1650 Technical Manual Page 17...
- Page 18 Figure 7. Turn off Firewall. o Return to the Gige Local Properties window as in Figure 5. Select the Advanced tab as in Figure 7 and disable the Firewall for this device. Click OK to save changes. GE1650 Technical Manual Page 18...
- Page 19 The camera can be triggered either through the 12 pin general purpose connector or the mini-SMB input. The compatible cable connectors are specified in the Connections section of this document or contact AVT to purchase compatible cabling. AVT provides SMB-to-SMB or SMB-to-BNC cabling of varying lengths. GE1650 Technical Manual Page 19...
- Page 20 PacketSize can be set to 8228 if the network card has been optimized to support jumbo frames. o See the System Optimization Section to maximize the performance of your system. Figure 8. GigE Viewer application window. GE1650 Technical Manual Page 20...
-
Page 21: System Optimization
This will open the properties window for your network card. See Figure 9. Figure 9. Network card main properties window. o From the Properties window select Configure then select the Advanced tab. See Figure 10. GE1650 Technical Manual Page 21... - Page 22 From the main properties dialog as in Figure 9, make sure that only the Internet Protocol (TCP/IP) check box is selected then click OK. The card is now optimized for use with the Prosilica GE camera. o Open the viewer and set the PacketSize to 8228. GE1650 Technical Manual Page 22...
-
Page 23: Trouble Shooting
AutoIP range on your NIC and it doesn’t have access to a DHCP server. Either change your NIC IP to be in the AutoIP range, or fix the camera IP address to be on the same subnet as your NIC. GE1650 Technical Manual Page 23... - Page 24 Ipconfig /all screenshot Is the camera listed in SampleViewer but can’t acquire images? Reset your camera settings to factory default: with ConfigFileIndex = Factory, click the ConfigFileLoad button. While streaming, check your Stats: GE1650 Technical Manual Page 24...
- Page 25 • All packets completing as normal, but black image. Check ExposureValue, ExposureMode, and be sure your scene is suitably lit. If you are still having problems acquiring images, please send your camera settings file (click on the disk icon in SampleViewer) to support@alliedvisiontec.com. Saving camera setting file GE1650 Technical Manual Page 25...
-
Page 26: Addendum
Addendum GE1650 Technical Manual Page 26... -
Page 27: Ge Io Schematic
LOGIC TXD 0.1u OUT3 LOGIC RXD OUT4 0.1u GND2 GND1 RS232-TXD DOUT 0.1u FORCEON MINI-SMB SY NC OUT 1 ISO TXD 0.1u INVALID ISO RXD ROUT ISO+5V RS232-RXD ISOLATED 5V POWER ISOLATED GROUND GALVANIC ISOLATION BOUNDARY GE1650 Technical Manual Page 27... -
Page 28: Hirose 12-Pin Trigger Schematic
The trigger circuit is connected to a Texas Instruments SN74ACT244PWR buffer/driver inside the camera. The required trigger input current is less than 10uA and the maximum sync output current is 24mA. See the Texas Instruments SN74ACT244PWR for more detailed information. GE1650 Technical Manual Page 28... -
Page 29: Mini-Smb Trigger Schematic
The trigger circuit is connected to a Texas Instruments SN74ACT244PWR buffer/driver inside the camera. The required trigger input current is less than 10uA and the maximum sync output current is 24mA. See the Texas Instruments SN74ACT244PWR for more detailed information. Note that the trigger input signal is not terminated to match the cable impedance. GE1650 Technical Manual Page 29... -
Page 30: Trigger Timing Diagram
Trigger Timing Diagram Readout Time Trigger Latency Expose Start Registered Delay Exposure Time User Trigger Logic Trigger Exposure Trigger Jitter Readout Interline Time Trigger Ready Imaging Idle GE1650 Technical Manual Page 30... -
Page 31: Notes On Triggering
For applications requiring the shortest possible Trigger Latency and the smallest possible Trigger Jitter the User Trigger signal should be applied when Imaging is false and Idle is true. o In this case, Trigger Latency and Trigger Jitter are as indicated in the Specifications section. GE1650 Technical Manual Page 31... - Page 32 User Trigger signal should be applied as soon as a valid Trigger Ready is detected. o In this case, Trigger Latency and Trigger Jitter can be up to 1 line time since Exposure must always begin on an Interline boundary. GE1650 Technical Manual Page 32...
