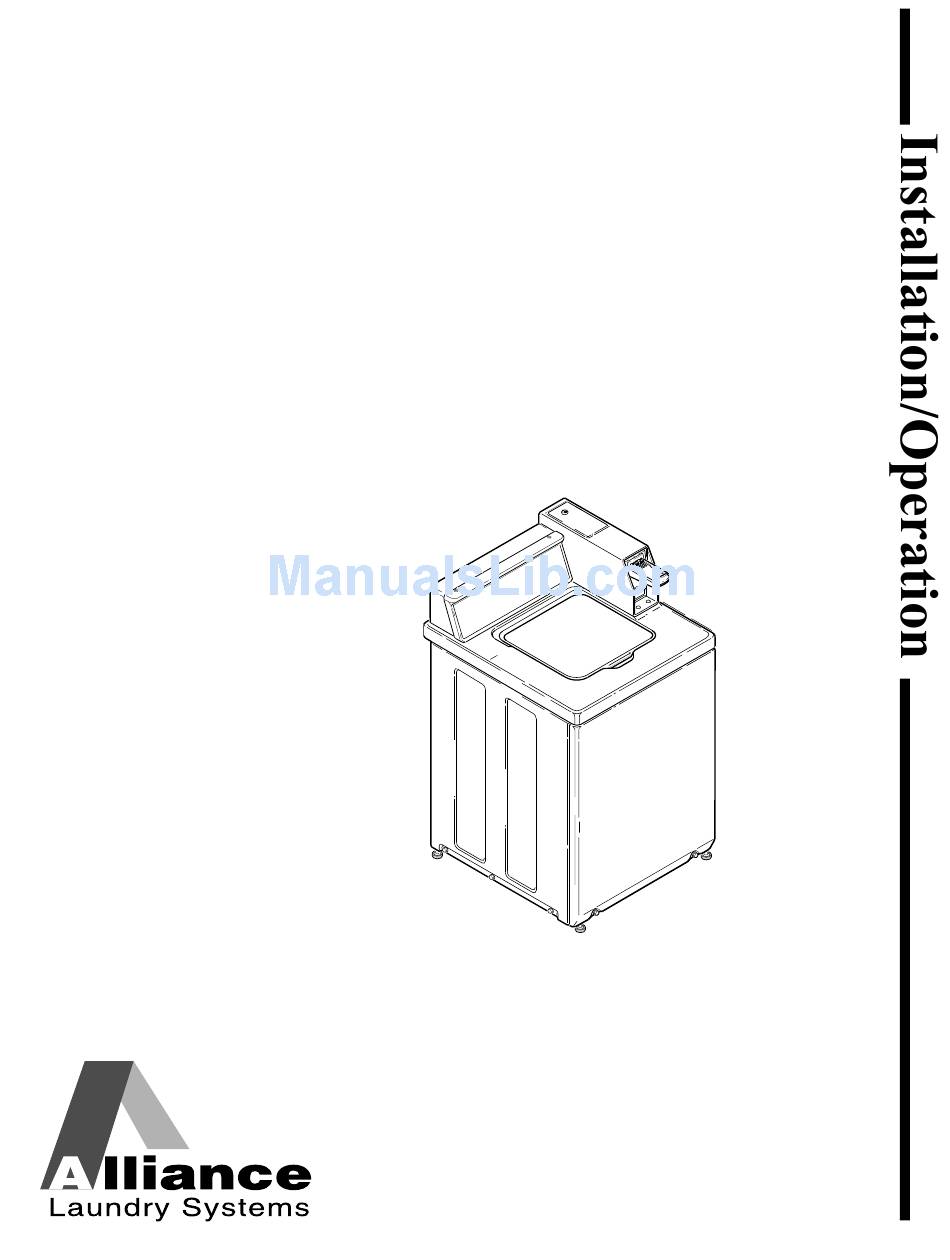

Para bajar una copia de estas instrucciones
en español, visite www.comlaundry.com.
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Automatic
Washers
Metered and Nonmetered
www.comlaundry.com
W446I
Part No. 201932R4
September 2010
Advertisement
Table of Contents
Related Manuals for Alliance Laundry Systems SWTT21
Summary of Contents for Alliance Laundry Systems SWTT21
- Page 1 Para bajar una copia de estas instrucciones en español, visite www.comlaundry.com. Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Automatic Washers Metered and Nonmetered www.comlaundry.com W446I Part No. 201932R4 September 2010...
- Page 3 IMPORTANT: Read the complete INSTALLATION/OPERATION INSTRUCTIONS before using the washer. 201932 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT WARNING W022...
-
Page 4: Table Of Contents
Step 3: Connect Fill Hoses... Step 4: Connect Drain Hose to Drain Receptacle ... 10 Step 5: Position and Level the Washer ... 11 Step 6: Plug In the Washer... 12 Step 7: Add Water to the Washer ... 13 Step 8: Check Lid Switch ... - Page 5 Step 8: Start Washer... 30 Indicator Lights ... 30 Maintenance ... 31 User-Maintenance Instructions... 31 Cold Weather Care... 31 Care of Your Washer ... 31 Replacing Hoses... 31 Filter Screens ... 31 Reinstallation of Shipping Materials ... 31 Motor Overload Protector... 31 Troubleshooting ...
-
Page 6: Safety Information
GAS IS FLAMMABLE, DO NOT SMOKE OR USE AN OPEN FLAME DURING THIS TIME. 6. Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. This is a safety rule for all appliances. - Page 7 10. Do not tamper with the controls. 11. Do not repair or replace any part of the washer, or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.
-
Page 8: Installation
Dimensions and Specifications Electronic Control Models 25.63 in. (65.1 cm) Pilot Hole 25.63 in. (65.1 cm) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Installation 22.44 in. (57 cm) 0.44 in. 26 in. (66.04 cm) (1.12 cm) 28 in. -
Page 9: Before You Start
Pliers Level Figure 1 NOTE: If the washer is delivered on a cold day (below freezing), or is stored in an unheated room or area during the cold months, do not attempt to operate it until the washer has had a chance to warm up. -
Page 10: Step 2: Wipe Out Inside Of Washtub
HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period and before using the washer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. -
Page 11: Connecting Hoses
Connect fill hoses to water supply faucets. Then connect the hoses to the hot and cold valve connections at the rear of the washer. Refer to Figure 4. Thread hose couplings onto valve connections finger tight. Then turn 1/4 turn with pliers. -
Page 12: Step 4: Connect Drain Hose To Drain Receptacle
Both of these conditions may result in flooding of the washer. Remove the drain hose from its shipping position on the rear of the washer by unhooking the hose from the retainer clamp. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 13: Low Standpipe Installation
Place rubber cups on all four leveling legs. Place a level on the cabinet top and check if the washer is level from side to side and front to back. 201932 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT If washer is not level, tilt washer back to access the front leveling legs. -
Page 14: Step 6: Plug In The Washer
DO NOT use an adapter. DO NOT operate other appliances on the same circuit. Use separately fused 15 Amp circuits. The washer is designed to be operated on a separate branch, polarized, three-wire, effectively grounded, 120 Volt, 60 Hertz, AC (alternating current), circuit protected by a 15 ampere fuse, equivalent fusetron or circuit breaker. -
Page 15: Grounding Instructions
DO NOT modify the plug provided with the washer – if it will not fit the outlet, have a proper outlet installed by a qualified electrician. If the laundry room’s electrical supply does not... -
Page 16: Vending
Installation Vending Meter Case The factory mounted coin meter case does not include the service door lock, coin slide, coin drawer, coin drawer lock or keys. These parts must be ordered (at extra cost) according to the purchaser’s requirements direct from the manufacturer of your choice. NOTE: On models with standard capacity meter case and high capacity meter case models starting with Serial Nos. -
Page 17: Models Prepped For Card Reader
Installing Extension Onto Coin Slide: Option 1 1. Install slide extension onto top of coin slide using two remaining screws and lockwashers. Refer to Figure 15. Lockwashers Coin Slide Figure 15 2. Insert coins and partially extend coin slide. 3. Insert coin slide on its side through meter case opening. -
Page 18: Additional Washer Security
Installation Additional Washer Security (Coin Models Only) Located on the service door of the washer is a flat Phillips head screw. During shipment, this screw is used to attach the service door to the meter case. For additional security, this screw can be reinstalled inside the control hood of your washer. -
Page 19: Operation
Load dry clothes loosely into washtub – DO NOT overload! When washing large items such as shag rugs and bedspreads, add several small items to balance wash load. Step 3: Close Lid Washer will not operate with lid open. W395I W392I Figure 20 W394I Figure 21... -
Page 20: Step 4: Set Wash Temperature And Fabric/Cycle Selector
Operation Step 4: Set Wash Temperature and Fabric/ Cycle Selector One Speed Washers NOTE: Wash temperature and cycle settings may be changed any time before first wash fill is complete. Setting Wash Temperature/Cycle Set at either *HOT/NORMAL, *WARM/PERM PRESS, *COLD/SPECIAL, or HOT/NORMAL, WARM/PERM PRESS, COLD/SPECIAL. -
Page 21: Step 5: Start Washer
201932 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Indicator Lights IN USE This light will remain on while washer is in use. RINSE This light will be on during the rinse portion of the cycle. -
Page 22: Control Modes
Power-Up Mode The control enters this mode after power is applied to the washer. In Power-Up Mode, the control will detect the state it was in at power-down to determine what mode to enter. After the control completes operation in the Power-Up Mode, it will enter either the Ready, Test or Run Modes. -
Page 23: Rapid Advance
From wash fill or agitate, cycle will advance to wash spin following a short pause. Wait for pause and washer to spin before advancing to next step. From wash spin, cycle will advance to rinse fill. From rinse fill or agitate, cycle will advance to final spin following a short pause. -
Page 24: Operation Instructions For Electronic Display Control Washers
Load dry clothes loosely into washtub – DO NOT overload! When washing large items such as shag rugs and bedspreads, add several small items to balance wash load. Figure 28 Step 3: Close Lid Washer will not operate with lid open. W395I Figure 29 W392I H338I 201932... -
Page 25: Step 4: Choose Small Load, If Desired
Figure 30 Any time the lid is opened, the SMALL LOAD option will turn off and the washer will fill to the normal level. The SMALL LOAD indicator light will be off. Step 5: Set Fabric Selector Push touchpad for NORMAL, PERM PRESS or DELICATES. -
Page 26: Indicator Lights
UNBALANCE UNBALANCE is lit and will flash when the washer is in a Spin mode and the lid is opened. IMPORTANT: If washer fails to operate properly after installation, make sure electrical service and water supply faucets are turned on. -
Page 27: Operation Instructions For Mdc Washers
Load dry clothes loosely into washtub – DO NOT overload! When washing large items such as shag rugs and bedspreads, add several small items to balance wash load. Figure 35 Step 3: Close Lid Washer will not operate with lid open. W395I Figure 36 Operation W392I H338I... -
Page 28: Copyright, Alliance Laundry Systems Llc – Do Not Copy Or Transmit
LOAD indicator light will be lit. Figure 37 Any time the lid is opened, the SMALL LOAD option will turn off and the washer will fill to the normal level. The SMALL LOAD indicator light will be off. Step 5: Set Fabric Selector and Wash... -
Page 29: Step 7: Start Washer
Step 7: Start Washer After vend price has been satisfied, push the START pad. LID MUST BE CLOSED TO START WASHER. Figure 41 201932 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Indicator Lights WASH WASH is lit at the beginning of a Wash cycle and will remain lit until the Wash cycle is complete. -
Page 30: Operation Instructions For Netmaster Washers
Load dry clothes loosely into washtub – DO NOT overload! When washing large items such as shag rugs and bedspreads, add several small items to balance wash load. Figure 43 Step 3: Close Lid Washer will not operate with lid open. W395I Figure 44 W392I H338I 201932... -
Page 31: Step 4: Choose Small Load, If Desired
Figure 45 Any time the lid is opened, the SMALL LOAD option will turn off and the washer will fill to the normal level. The SMALL LOAD indicator light will be off. 201932 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 32: Step 7: Insert Money Or Card
Figure 49 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 8: Start Washer After vend price has been satisfied, push the START pad. LID MUST BE CLOSED TO START WASHER. Figure 50 Indicator Lights W387I... -
Page 33: Maintenance
This also may be necessary if too little detergent has been used. Leave the lid open to allow the inside of the washer to dry out after use. This helps prevent musty odors from developing. -
Page 34: Troubleshooting
Clean the screens in the water mixing valve and the filter screens located at the faucet end of the fill hoses. Water is being siphoned from the washer during the cycle. Refer to the Installation section to make sure that the drain hose has been properly installed. ... - Page 35 Make sure washer is level. Uneven leveling can cause vibration. A newly installed washer may make a knocking sound if the machine has been in storage. The belt may have settled. Run washer through 4-5 cycles to loosen belt. Washer operation will not be affected.
-
Page 36: Contact Information
If replacement parts are required, contact the source from where you purchased your washer or call (920) 748-3950 for the name and address of the nearest authorized parts distributor. -
Page 38: Installer Checklist
Fast Track for Installing the Washer (Refer to the manual for more detailed information) • Remove the Shipping Brace and Shipping Plug. CHECK • Wipe Out Inside of Washtub. CHECK • Connect Fill COLD Hoses. CHECK ...
