Component identification

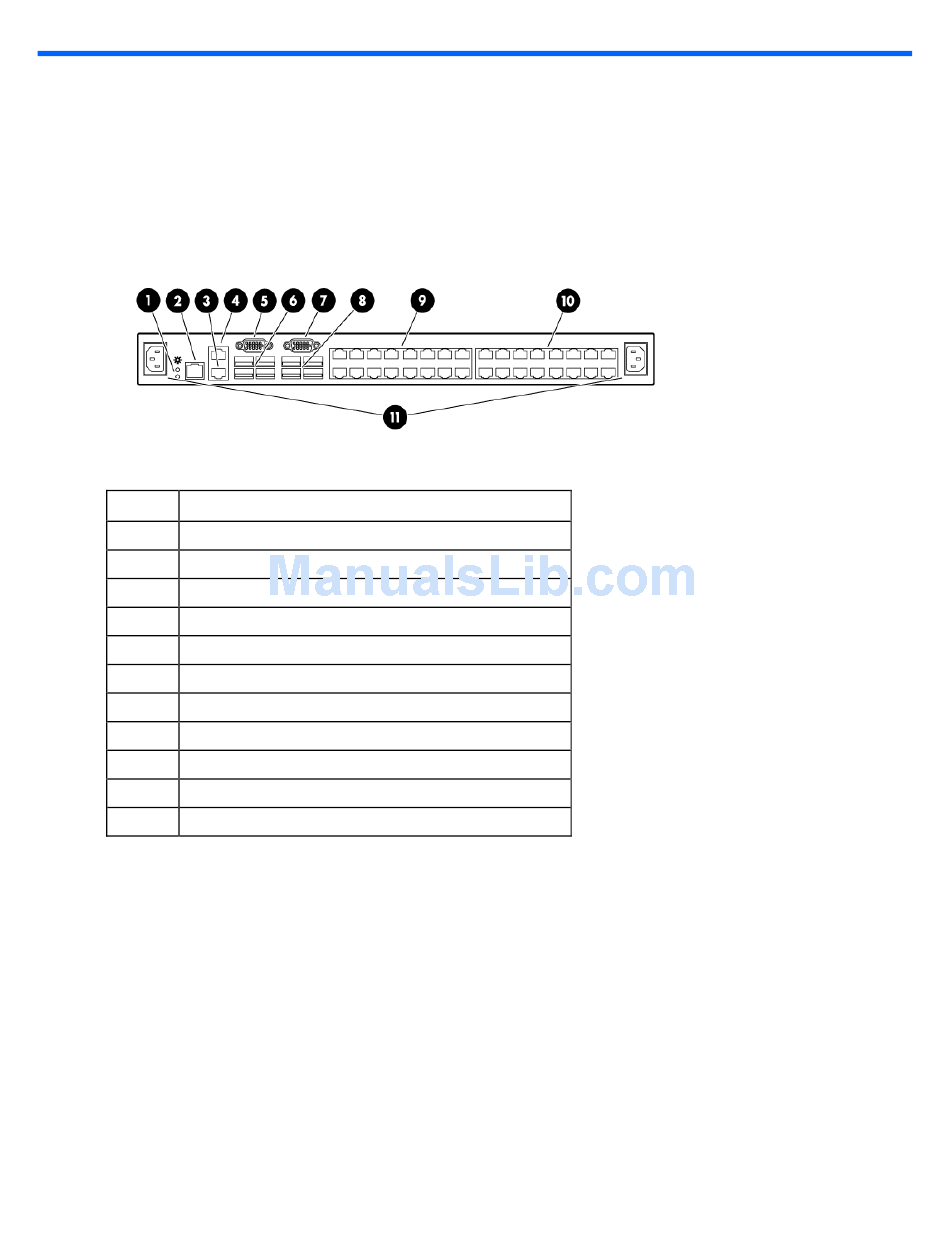

HP Server G2 Console Switch components

Item Description
1 Power supply status indicator LEDs
2 LAN connector
3 Tiering chain port
4 RJ-45 serial setup port
5 Console A VGA connector
6 Console A USB ports
7 Console B VGA connector
8 Console B USB ports
9 Interface adapter ports (1-16)
10 Interface adapter ports (17-32)
11 Power connectors A & B
