NEC LCD2070VX - MultiSync - 20" LCD Monitor User Manual page 7

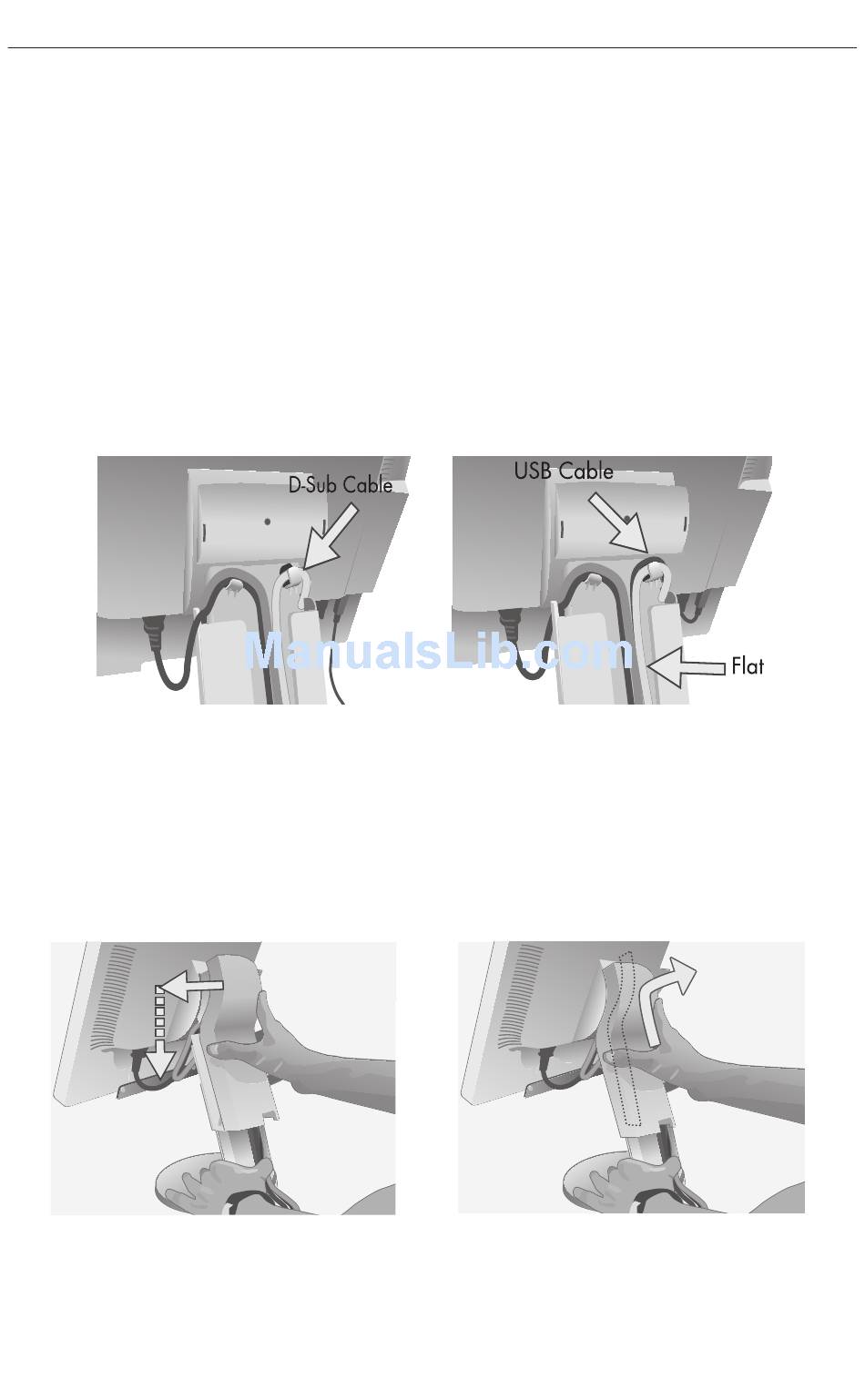

7. Place the D-Sub and the USB cable into the specific hooks indicated
in (Figure 7). USB cable is used with NX models only.
8. Make sure all cables are resting flat against the stand (Figure 7).
9. Hold the all cables firmly and place the cable cover onto the stand
(Figure 8). To remove the cable cover, lift the cover off as shown in
(Figure 9).
Figure 7
(Pictured: LCD2070NX)
Figure 8
Display Setup
5
- continued
(NX models only)
Figure 9
