Display Setup
3. Place hands on each side of the monitor to tilt the LCD panel 30-
degree angle and lift up to the highest position (Figure 4).
4. Connect all cables to the appropriate connectors (Figure 4).
NOTE: If connecting both DVI and D-sub cable, the DVI cable must
be connected along side the rib on the power cord side (Figure 4).
5. For successful cable management, place the cables in this order into
the cable management: power cable and DVI cable (Figure 5).
6. Place DVI cable and power cable into the specific hooks indicated
in (Figure 6).

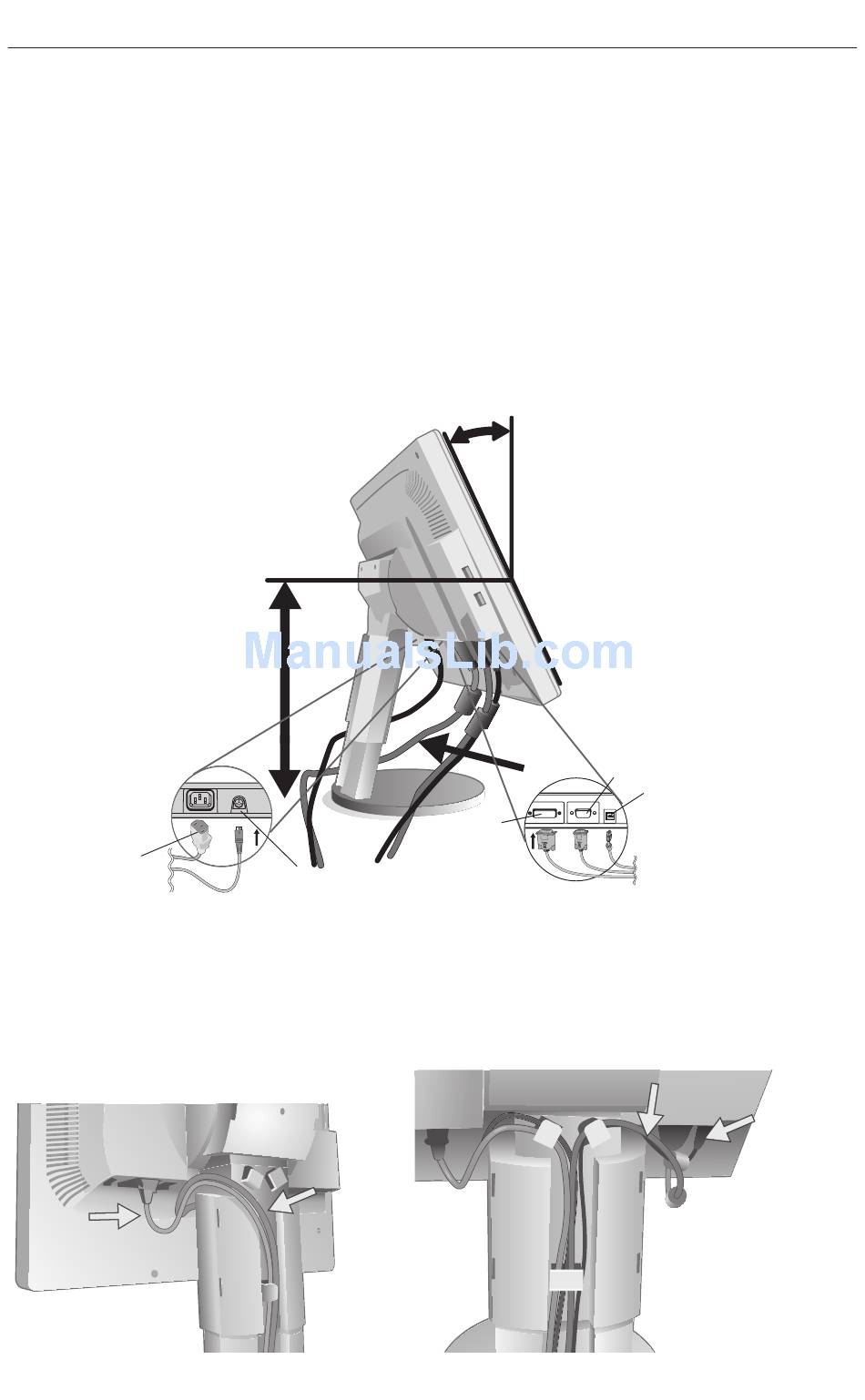

Figure 4
(Pictured: LCD2070NX)
Power cord
(Pictured: LCD2070NX)
Power Cable
(Bottom)
- continued
Highest
Stand
Position
DC-OUT
NEC optional product atttachment.
Do not use this connector unless specified.
Figure 5
DVI Cable
(Top)
30˚ Tilt
DVI Cable
Input1(DVI)
Figure 6
(Pictured: LCD2070NX)
4
Input2( D-Sub)
USB
(NX models only)
D-SUB Cable
USB Cable
(NX models
only)
