Page 1: Uninterruptible Power Supply
USER MANUAL ONLINE UPS 6000L(XL)/10000L(XL) Uninterruptible Power Supply... -
Page 2: Table Of Contents
1.Brief introduction 1.1 System and model description 1.2 Description of commonly used symbols 1.3 Appearance 1.4 Product specification and performance 2. Installation 2.1 unpacking & Inspection 2.2 input and output power cords and protective earth installation 2.3 Operating procedure for connecting the long backup time model UPS with the external battery 2.4 parallel operation 3. -
Page 3: Brief Introduction
1. Brief introduction 1.1 System and model description This Online Series is an uninterruptible power supply incorporating double-conversion technology. It provides perfect protection specifically for computer equipment, Communication Systems to computerized instruments. Its true online double-conversion design eliminates all mains power disturbances. -
Page 4: Appearance
Nation Explanation Alert you to pay special attention Caution of high voltage Turn on the UPS Idle or shut down the Alternating current source (AC) Direct current source 1.3 Appearance Nation and Explanation Nation Back View Of 6000L(XL) Explanation Protective ground Alarm silence Overload indication Battery check... -
Page 6: Electrical Performance
● Electrical performance Model 6000L(XL)/ 10000L(XL) Voltage Power regulation factor Synchronized (46~54)/(56~64)Hz in Line mode(AC mode) 0.7lag ±4% ±0.1% of normal frequency in Battery mode. ● Operating environment Temperature Humidity 0℃~40℃ Note: if the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated in use, please refer to the following : Altitude (M) -
Page 7: Installation
2. Installation 2.1 Unpacking and inspection Unpack the packaging and check the package contents. The shipping package contains: ● A UPS ● A User Manual ● A Communication Cable ● A Battery Cable (for 6000LXL /10000LXL only) Inspect the appearance of the UPS to see if there is any damage during transportation. -
Page 8: Installation
installation. The battery breaker also needs to be cut off if it is a long backup time model (“XL” model). ● Open the terminal block cover located on the rear panel of the UPS, please refer to the appearance diagram. ●... - Page 9 UPS. To make the UPS have no output, power off the UPS, and then disconnect the utility power supply. ● Suggest charging the batteries for 8 hours before use. After connection, turn the bypass breaker in the “ON”...
- Page 10 Connection Details of Output Terminals Important Note: If the UPS is used in Single Mode, JP1 and JP2 must be connected by 10AWG (6mm Mode, the Jumper between JP1 and JP2 must be removed. ● Option: 1 Connection Details of Output Terminals. Connection Details of Output Terminals.
-
Page 11: Operating Procedure For Connecting The Long Backup
Important Note: If the UPS is used in Single Mode, JP1 and JP2 must be connected by 10AWG (6mm between JP1 and JP2 must be removed. ● Option: 2 Connection Details of Output Terminals. Connect Output Line 1 and Neutral2 by 10AWG (6mm Important Note: If the UPS is used in Single Mode, JP1 and JP2 must be connected by 10AWG (6mm between JP1 and JP2 must be removed. - Page 12 1) DC breaker must be connected between the battery pack and the UPS. The capacity of breaker must be not less than the data specified in the general specification. 2) Set the battery pack breaker in ”OFF” position and connect the 20 pieces of batteries in series 3) You must connect the external battery cable to the battery first, if you connect the cable to the UPS first, you may encounter the...
-
Page 13: Parallel Operation
2.4 Parallel operation 1. Brief introduction of the redundancy N+X is currently the most reliable power supply structure. N represents the minimum UPS number that the total load needs; X represents the redundant UPS number, i.e. the fault UPS number that the system can handle simultaneously. -
Page 14: Operation And Operating Mode
3.1 Operation 1. Turn on the UPS with utility power supplied (in Line mode/AC mode) 1) After you make sure that the power supply connection is correct, set the bypass breaker and the input breaker in the “ON” position first. - Page 15 3) Upon completion of the above to turn it off, output of electric current of the UPS is still present. In order to cut off the output from the UPS, simply cut off the utility power supply and the UPS will perform self-diagnosis, finally not any display is shown on the display panel and no voltage output is available from the UPS output.
-
Page 16: Operating Mode
to power off the UPS. 2) When being powered off, the UPS will perform self-diagnosis, the Load/Battery level LEDs will be turned on and then off one after another in ascending order. Finally not any display is shown on the display panel and no voltage is available from the UPS output. - Page 17 before supplying power of the generator to the UPS (be sure that the UPS is in idle mode). Then turn on the UPS according to the start-up procedure. After the UPS is turned on, then the loads can be connected to the UPS one by one. ●...
- Page 18 The display panel in bypass mode is shown in the following diagram. The utility power LED and the bypass LED are lit. The displayed number of the load LEDs will be turned on in accordance with the load capacity connected. The UPS will beep once every 2 minutes in bypass mode.
-
Page 19: Rs232 Interface
Load Level Load level Backup Time Of 6000L(XL) Backup Time Of 10000L(XL) Communication Port Intelligent slot This series is equipped with an intelligent slot for Webpower (optional accessory) or other optional card to achieve remote management of the UPS through internet / intranet. Please contact your local distributor for further information. - Page 20 Function number description Ground DB-9 pin assignment: Optional AS400 interface This optional AS400 card provides dry contact closure signal “OPEN” or “CLOSE”. Following are the pin assignment and the descriptions of AS400 card: PIN1: UPS failure (normally open, active close) PIN2: summary alarm PIN3: ground PIN4: Remote shutdown...
-
Page 21: Battery Maintenance
Data-Line Surge Protection The built-in data-line surge suppression on the rear panel completes your system protection. It provides an easy way to protect a network (RJ45) or modem (single line phone) connection from hazardous spikes. 4. Battery maintenance ● This series UPS only requires minimal maintenance. The battery used for standard models are value regulated sealed lead-acid maintenance free battery. -
Page 22: Notes For Battery Disposal And Battery Replacement
● Replace batteries with the same number and same type of batteries. ● Do not replace the battery individually. All the batteries should be replaced at the same time following the instructions of the battery supplier. ● Normally, the batteries should be charged and discharged once every 4 to 6 months. -
Page 23: Troubleshooting
Therefore, before any maintenance and repairs work is carried out, switch off the breaker of the battery pack or disconnect the jumper wire of connecting between the batteries. Batteries contain hazardous voltage and current. Battery maintenance such as the battery replacement must be carried out by qualified personnel who are knowledgeable about batteries. - Page 24 The voltage or frequency of the The utility power utility power is LED flashes out of the input range of the UPS. The #1 Fault LED The UPS is and the #2 LED are overloaded or the turned on, the UPS load equipment beeps continuously is faulty...
- Page 25 The #1 Fault LED and the battery LED are turned on, the buzzer beeps every second Battery LED flashes The utility power is normal, but the UPS can not turn in line mode Battery discharging time diminishes The UPS cannot power on after pressing the ON button...
-
Page 26: Appendix 1 Display Panel

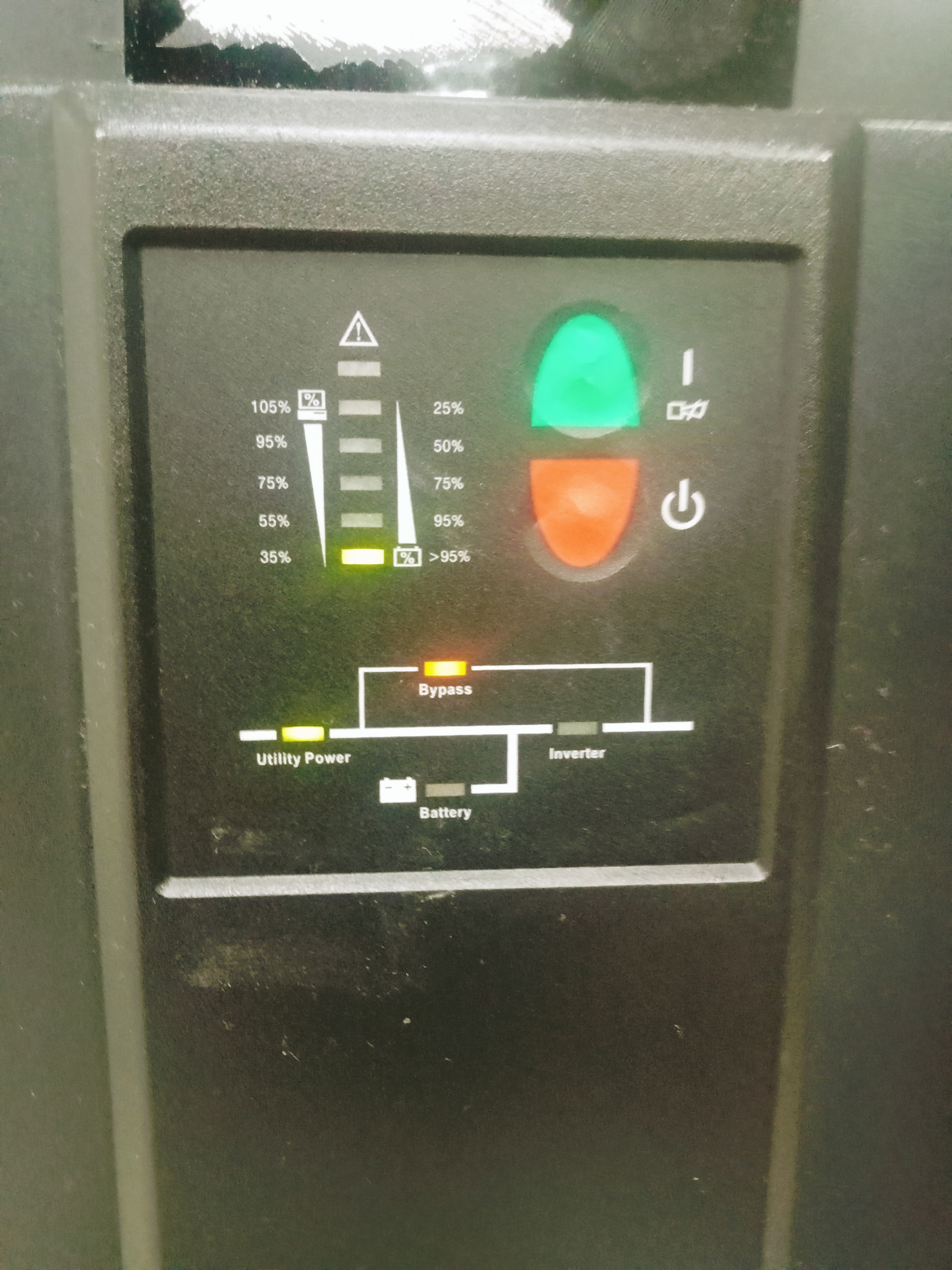

Appendix 1： display panel Power ON/OFF: To turn on the UPS simply by pressing the “ON” button on the front panel continuously for 1 second. Press the “OFF” button on the front panel continuously for 1 second to turn off the UPS. Bypass LED (orange LED): Whenever the bypass LED is turned on, it shows that the loading current is supplied directly from the utility power. - Page 27 Appendix 2： The corresponding form of the LED display Operating state 0~35% Load capacity 36%~55% Load capacity Utility 56%~75% Power Load capacity Mode 76%~95% Load capacity 96%~105% Load capacity 0~20% Battery capacity 21%~40% Battery capacity 41%~60% Battery Battery Mode capacity 61%~80% Battery capacity...
- Page 28 14 Utility power abnormal Overloaded in battery mode, Early-warning Overloaded in battery mode, Cut off the output 17 Over temperature 18 Inv abnormal 19 Output short circuited 20 BUS voltage abnormal 21 Charger or battery failed Battery voltage abnormal 23 BAT SCR failed 24 Fan abnormal 25 Bypass STS failed 26 INV RLY failed...
