1.7.2

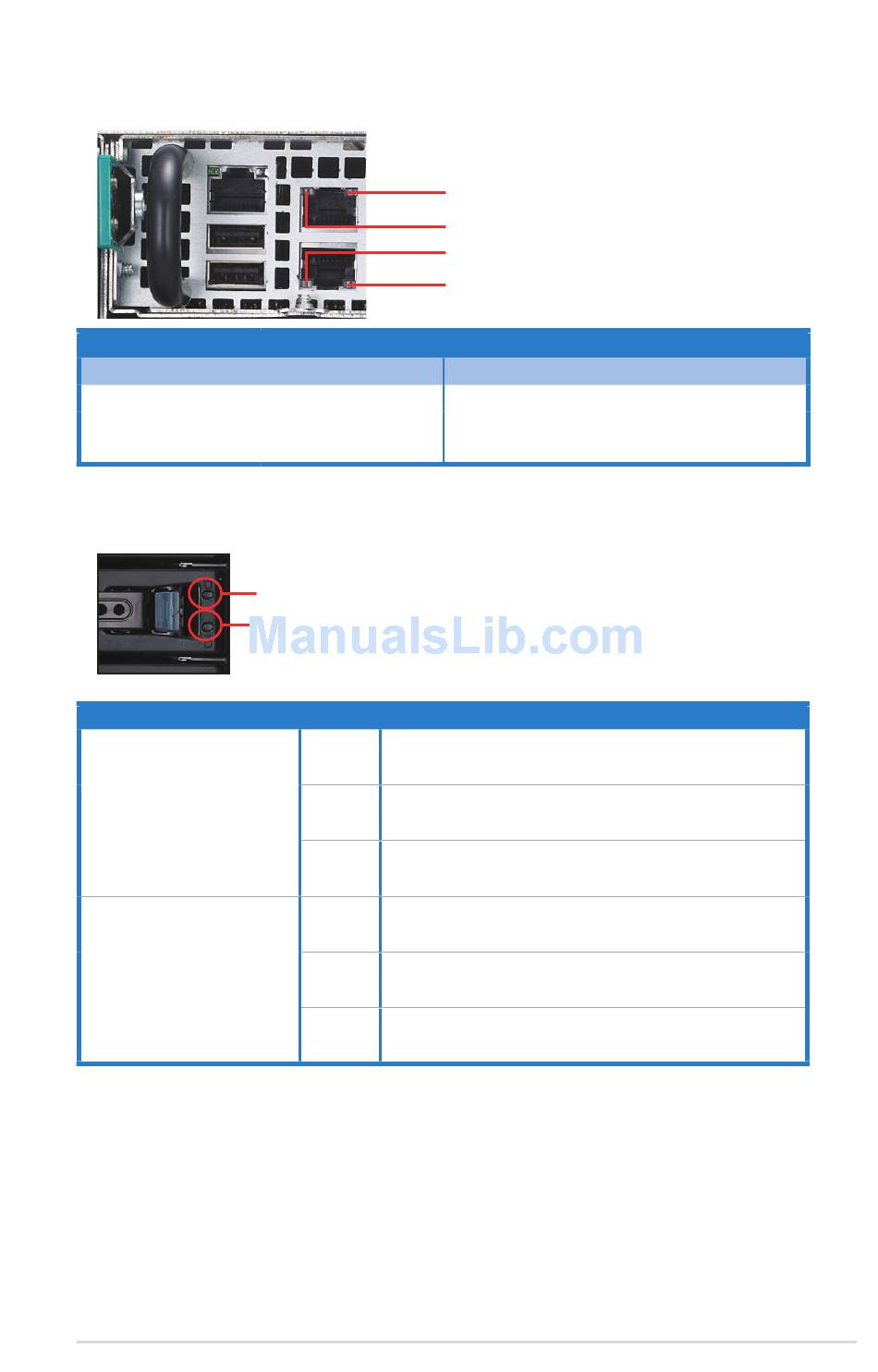

LAN (RJ-45) LEDs

ACT/LINK LED
Status
OFF
GREEN
BLINKING
1.7.3

HDD status LED

SATAII/SAS HDD LED Description
HDD Activity LED (Green)
HDD Status LED (Red)
ASUS RS720QA-E6/RS12, RS724QA-E6/RS12
Description
No link
Linked
Data activity
HDD Activity LED (Green)
HDD Status LED (Red)
OFF HDD not present
ON HDD present, no activity
1. Read/write data from/into the SATAII/SAS HDD
Blinking
2. Locating (blinking with the HDD status LED)
OFF HDD not present
ON HDD has failed and should be swapped immediately
1. RAID rebuilding
Blinking
2. Locating (blinking with the HDD activity LED)
SPEED LED
ACT/LINK LED
ACT/LINK LED
SPEED LED
SPEED LED
Status
OFF
ORANGE
GREEN
Description
10 Mbps connection
100 Mbps connection
1 Gbps connection
1-9
