Led Information; Front Panel Leds - Asus RS720QA-E6/RS12 User Manual

1.7

LED information

1.7.1

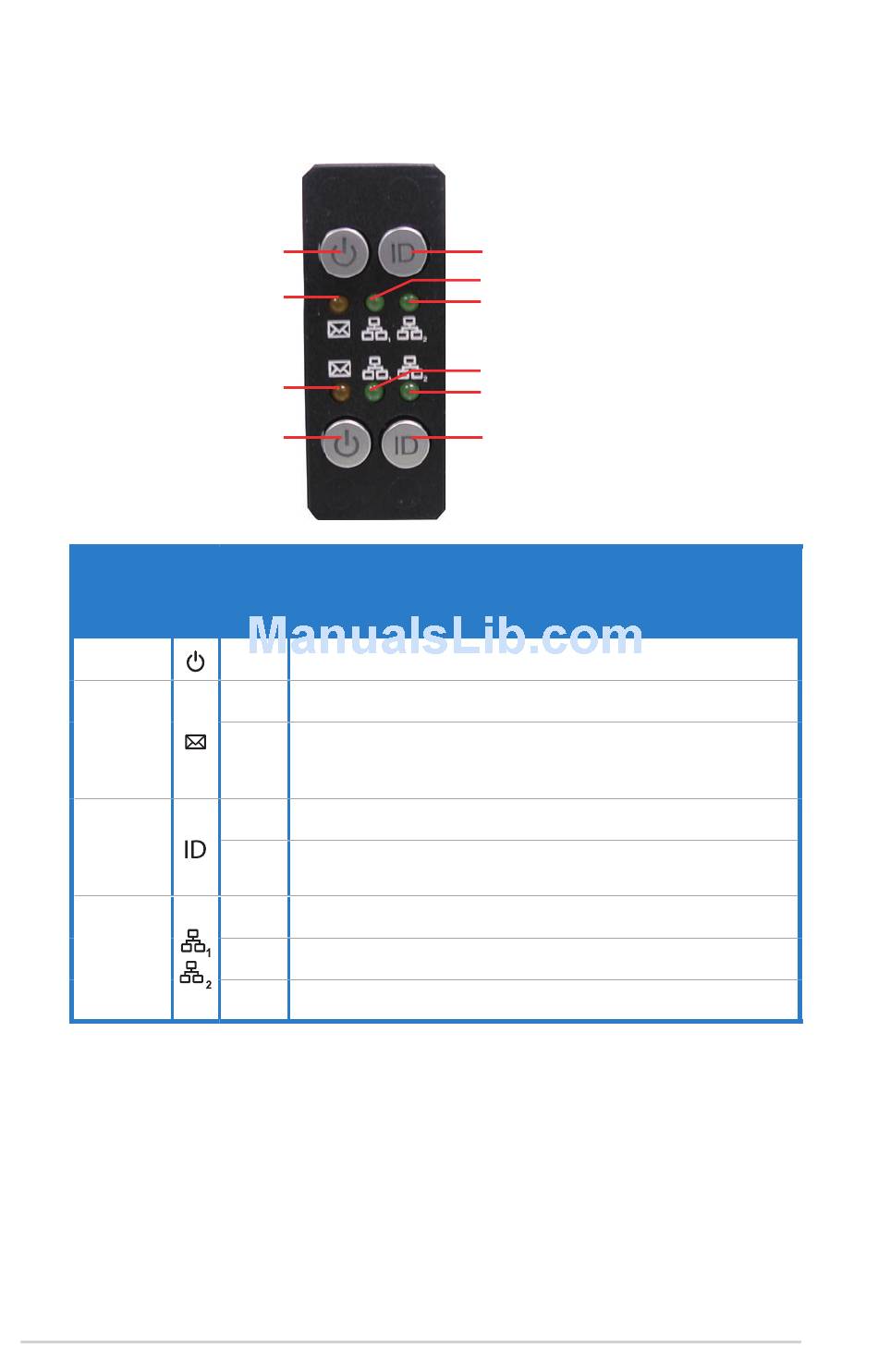

Front panel LEDs

Power switch and LED
Message LED
Message LED
Power switch and LED
LED Icon
Power LED
Message
LED
Location
LED
LAN LEDs
1-8
Display
Description
status
ON System power ON
OFF System is normal; no incoming event
1. Without ASMB4-iKVM installed: CPU over-heated
ON 2. With ASMB4-iKVM installed: a hardware monitor event is
indicated
OFF Normal status
Location switch is pressed (Press the location switch again to
ON
turn off)
OFF No LAN connection
Blinking LAN is transmitting or receiving data
ON LAN connection is present
Location switch and LED
LAN1 LED
LAN2 LED
LAN1 LED
LAN2 LED
Location switch and LED
Chapter 1: Product introduction
