HP StorageWorks
Director and Edge Switch release
notes
Part number: AA-RW8NA-TE/958–000276–009
First edition: (November 2005)

Advertisement

Table of Contents
loading

Related Manuals for HP 316095-B21 - StorageWorks Edge Switch 2/24

Summary of Contents for HP 316095-B21 - StorageWorks Edge Switch 2/24

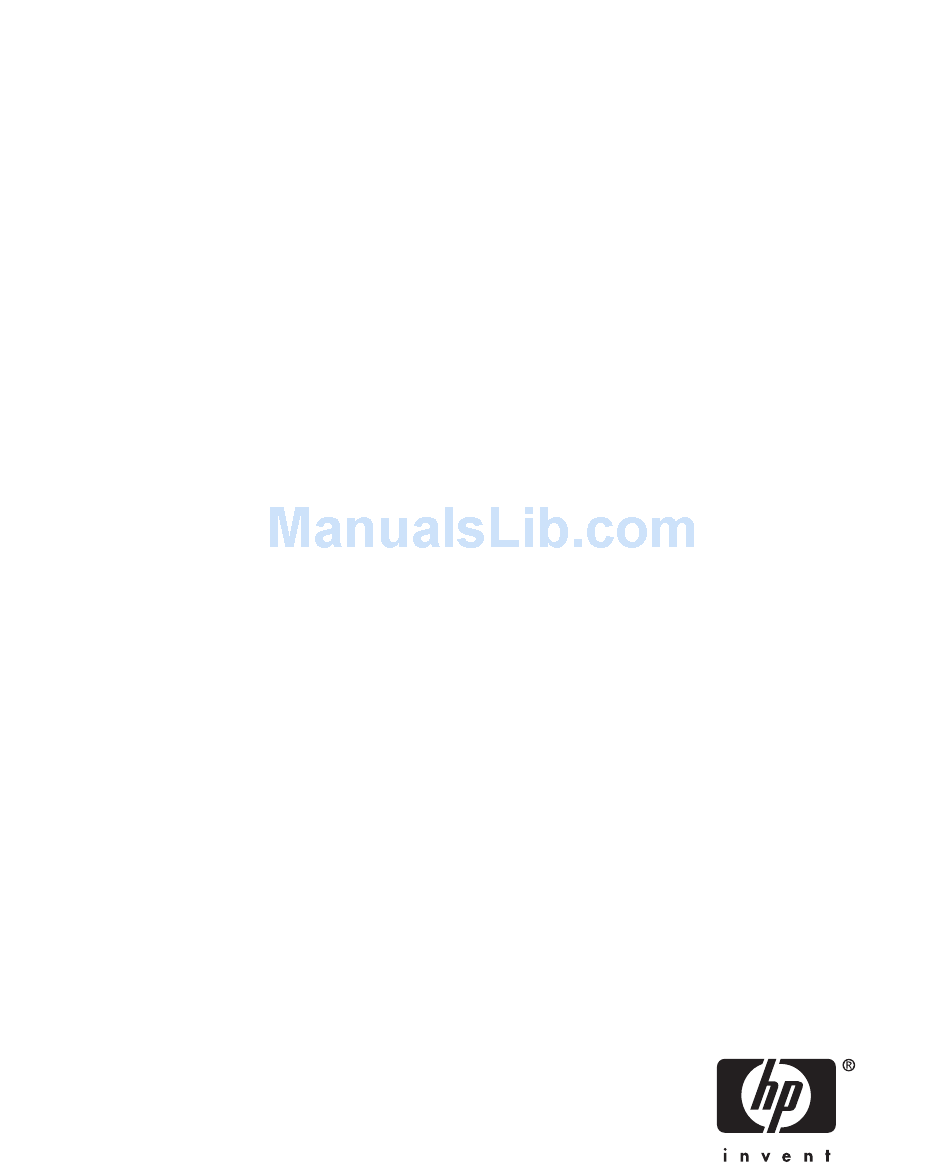

  • Page 1 HP StorageWorks Director and Edge Switch release notes Part number: AA-RW8NA-TE/958–000276–009 First edition: (November 2005)
  • Page 2 © Copyright 2003 — 2005-NaN Hewlett-Packard Development Company, L.P. Hewlett-Packard Company makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

  • Page 3: About This Document

    About this document These release notes contain late-breaking and supplemental information for the Director or Edge Switch products. Be sure to read these release notes before installing a Director or Edge Switch product. This information is available and periodically updated on the following HP web site: http://www.hp.com/country/us/eng/prodserv/storage.html.

  • Page 4: Other Documentation

    Firmware 08.01.00 Firmware 08.01.00 is the latest firmware released with the Director or Edge Switch product. Firmware 08.01.00 applies to the following M-Series Fabric Directors and Edge Switches: • HP StorageWorks Director 2/140 • HP StorageWorks Director 2/64 • HP StorageWorks Edge Switch 2/32 •...

  • Page 5: Cable Requirements

    • Number of interswitch links (ISLs)—The maximum supported number of ISLs is 75% of installed ports for the Director 2/64, and 50% of installed ports for the Director 2/140. The maximum supported number of ISLs for Edge Switches is all available switch ports.
  • Page 6 • Port Fencing—Building on E_port or ISL Fencing introduced in firmware 07.xx.xx, Port Fencing policies have been enhanced to include F_ports to block malfunctioning devices attached to M-Series Directors and Edge Switches. Users can configure policies to detect ports that are violating security rules, as well as link-level problems, such as a port that repeatedly exits the active-link state.
  • Page 7 and disassociate USM configuration values for trap recipients, configure entries and set views to the Access table, and enable/disable SNMPv3. • show.snmp—Commands that display the switch SNMP configuration, Access table values, Target table values, users configured in the USM table, Security-to-Group table, and values for the configured VACM views.
  • Page 8 This feature is supported on all products except the Edge Switch 2/16 and Edge Switch 2/32. Predictive Optics Monitoring is not supported on the fiber port module (FPM) or the first revision of the universal port module (UPM) on the Director 2/64 or Director 2/140.
  • Page 9 Open Trunking with FMS Open Trunking Load Balancing is now qualified in FICON environments where FICON flows are rerouted, without encountering out-of-order frames. Safe Zoning mode When this mode is enabled through the CLI or HAFM Basic, zone merges are prohibited if zone sets from different fabrics do not match, and the default zone (available in Homogeneous Fabric mode only) cannot be activated.
  • Page 10 Previous QSA support provided a simple query facility in the switch for determining the status of security attributes enforced on the switch. QSA Rev 2 allows a device to register to receive RFCNs, so that it can be notified when a security change is made on the switch or fabric.
  • Page 11 Table 2 HAFM and firmware compatibility Firmware version HAFM version (minimum) 01.01.02 04.00.01 (HP EFCM) 01.02.02-06 04.01.02-14 (SDCM) 01.03.00-35 04.02.00-40 (HP EFCM) 01.04.00-01 04.02.00-40 (SDCM) 02.00.00-33 06.00.00-45 (HP EFCM) 02.00.02-01 06.00.02-06 06.03.01-05 04.01.02-04 05.02.00-13 07.01.00-09 (Notebook Server) 05.02.00-13 07.02.00-09 (HAFM Appliance) 05.05.00-12 None (Edge Switch 2/12) 06.01.00-18...
  • Page 12 Prerequisites for installing and using firmware 08.01.00 If you are using HAFM, firmware 08.01.00 requires HAFM 07.01.00 or later, check with HP Customer Support for the latest shipping version of HAFM. HAFM should be at the minimum level before installing the new firmware. If you are using HAFM to upgrade firmware, an Edge Switch 2/24 must be managed with HAFM 8.08.00 or higher before upgrading to firmware 08.01.00.
  • Page 13 If upgrading firmware requires an upgrade from 04.xx.xx to 05.xx.xx in the process, there are special considerations, as detailed in the section, Upgrading firmware on a director from 04.xx.xx to 05.xx.xx. A small number of early-shipped Surestore Director FC-64 units may display one of the following messages when upgrading to firmware 05.02.00-13: •...
  • Page 14 Download firmware 05.02.00-13 by selecting Firmware Library from the Product Manager Maintenance menu. Back up the Director configuration by selecting Backup & Restore Configuration from the Product Manager Maintenance menu. Using the Product Manager, execute a CTP swap: From the Product/Element Manager Hardware view, verify that an amber LED indicator is not displayed for either CTP card.
  • Page 15 Upgrade the firmware to 05.02.00-13 on each Edge Switch by selecting Send in the Firmware Library dialog box. Considerations for downgrading the firmware version Directors or Edge Switches are not required to be offline before performing a firmware downgrade operation. Limitations to downgrades are clearly identified if there are any limitations to performing the operation.
  • Page 16 Upgrades and downgrades are supported only from one major release to the next, such as from 07.xx.xx to 08.01.00. If HAFM Basic is used for upgrades and downgrades, and this rule is not followed, errors occur and there may be a disruption to attached devices. Downgrading to release 06.xx.xx with the Preferred Path feature configured can cause loss of this function.

  • Page 17: Zoning Limits

    HAFM upgrade required for firmware 08.xx.xx To upgrade to firmware 08.01.00, you must first upgrade the HAFM software to 07.01.00-9 (minimum) if you are using the Notebook HAFM Server to manage the Director or Edge Switch. The HAFM software is contained on the HP StorageWorks ha-fabric manager documentation and software CD (Part Number 516-000024-820).

  • Page 18: Reinstalling Feature Licenses

    Table 3 Zoning limits Zoning parameter Maximum value 2048 Number of zone members in a zone 1024 Number of zones in a zone set 2048 Number of unique zone members in a zone set 4096 Total number of zone members in a zone set (where a zone member can be in multiple zones) Characters per zoning name 2048...

  • Page 19: Known Issues

    can cause these port lights to extinguish momentarily until control is reasserted by the CTP. The actual Fibre Channel traffic is not affected during these times. Full-fabric capability for Edge Switch 2/12 Unlike other Edge Switch and Director products, a product feature enablement (PFE) key controls Edge Switch 2/12 E_Port-to-E_Port connections.

  • Page 20: Support For Speed Auto-Negotiate

    Workaround None. Error can occur if multiple UPM cards are hot inserted too quickly Event 507, Loopback diagnostics port failure, may occur after hot insertion of multiple UPM cards in the Director 2/64. This has only been encountered when cards are inserted at one-minute intervals.
  • Page 21 Possible switch reset after power failure or power–down sequence In extremely rare instances, after a power failure or power–down sequence, an Edge Switch or Director configuration may be reset to factory default settings. This is evident when HAFM is unable to communicate with the Edge Switch or Director after being powered on.
  • Page 22 • Secure Socket Layer (OpenSSL) is fully embedded into EOS 8.x. A) OpenSSH license is located at the following web site: http://www.openbsd.org/cgi- bin/cvsweb/src/usr.bin/ssh/LICENCE?rev=HEAD This file is part of the OpenSSH software. The licences which components of this software fall under are as follows. First, we will summarize and say that all components are under a BSD licence, or a licence more free than that.
  • Page 23 The legal status of this program is some combination of all these permissions and restrictions. Use only at your own responsibility. You will be responsible for any legal consequences yourself; I am not making any claims whether possessing or using this is legal or not in your country, and I am not taking any responsibility on your behalf.
  • Page 24 Copyright 1995, 1996 by David Mazieres <dm@lcs.mit.edu>. Modification and redistribution in source and binary forms is permitted provided that due credit is given to the author and the OpenBSD project by leaving this copyright notice intact. The Rijndael implementation by Vincent Rijmen, Antoon Bosselaers and Paulo Barreto is in the public domain and distributed with the following license: @version 3.0 (December 2000)Optimised ANSI C code for the Rijndael cipher (now AES)
  • Page 25 IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN...
  • Page 26 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.
  • Page 27 Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
