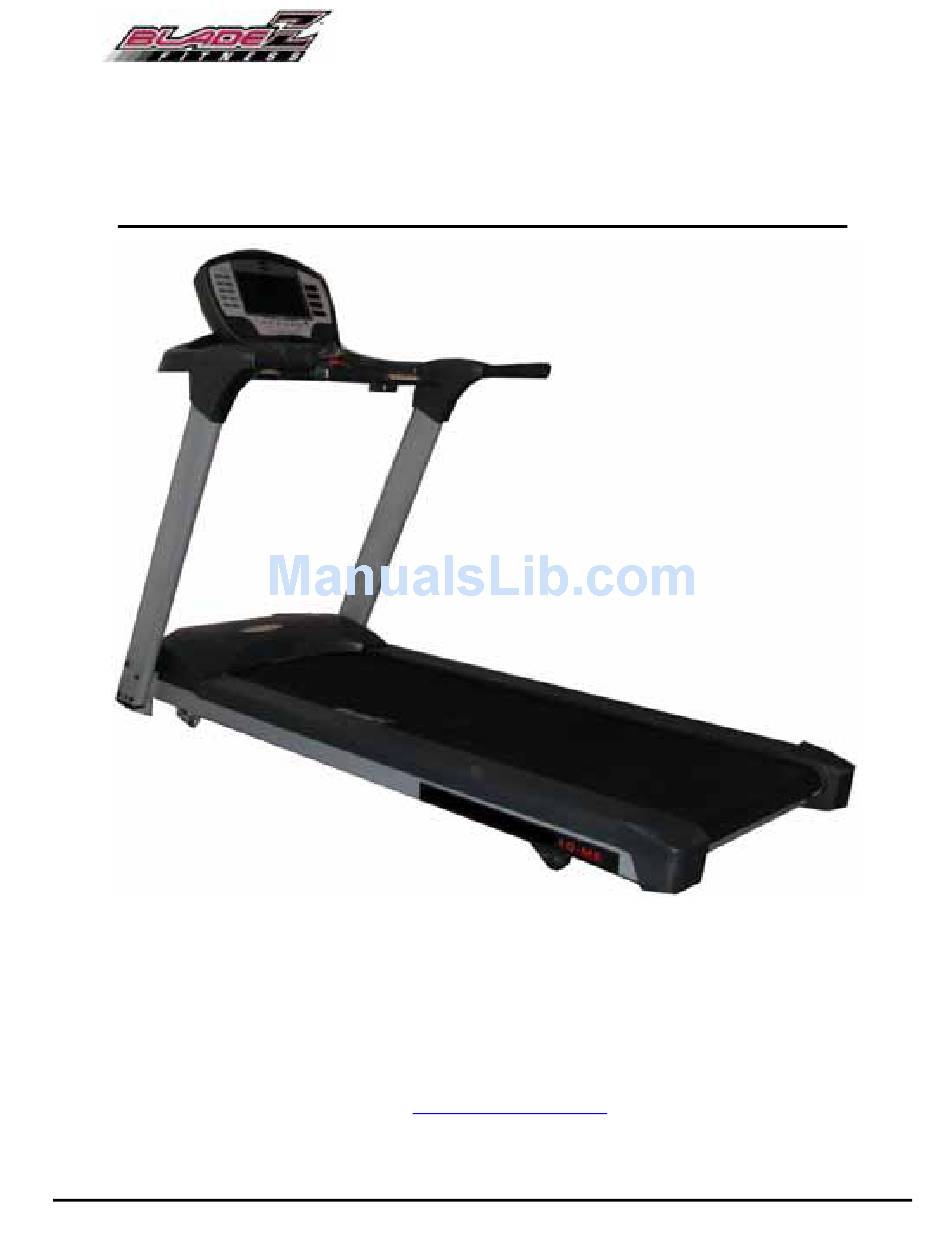

- Page 1 Treadmill Owner’s Manual Bladez T6-T8 10” ME BLADEZ Corporation 20155 Ellipse Foothill Ranch, CA 92610 Phone: 949-206-8152 Fax: 949-206-0013 Email: f itness@ebladez.com Revised 10/12/06 BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
- Page 2 BEFORE YOU BEGIN It is very important to become familiar with the frequently used components of your Bladez treadmill. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
-
Page 3: Table Of Contents
2. ASSEMBLY INSTRUCTIONS................. 5 3. GETTING STARTED....................15 4. WORKOUT PROGRAM DETAILS .................19 5. USING YOUR LCD DISPLAY.................25 6. PREVENTIVE MAINTENANCE................27 7. TROUBLESHOOTING.....................28 8. WARRANTY......................30 BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013... -
Page 4: Important Safety Instructions
15. Connect this appliance to a properly grounded outlet only. 16. This appliance is intended for household use only. SAVE THESE INSTRUCTIONS BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013... -
Page 5: Grounding Instructions
No adapter or extension cord should be used with this product. GROUNDING METHODS GROUNDED OUTLET GROUNDING BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013... -
Page 6: Assembly Instructions
Computer Rack Assembly Left Handrail Right Handrail Water Bottle Mounting Cover Left Side Cover Right Side Cover Console Cover, Rear Water Bottle BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013... -
Page 7: Assembly Parts List
Allen wrench 6mm Allen wrench 5mm Silicone Safety Key Power Cord Box Spanner + Screw Driver TV connected board TV Remote Control BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013... - Page 8 3. Next slide left hand rail (F) and right hand rail (G) into the computer rack assembly (E). BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
- Page 9 NOTE: When you fasten the bolts, please ensure that the wires are not pinched by the bolts when securing the upright and handrail. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
- Page 10 4 nuts (f) as shown. * Ensure that all wiring is clear of any ‘pinch points’ when securing the console BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
- Page 11 Left Upright Right Upright Console Welding-Base Left Handrail Right Handrail Left Handrail Cover Right Handrail Cover Cup/Bottle Holder Cover Computer cover Bottle BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
- Page 12 Screw ψ5x25 Screw ψ4x12 Bolt M6x15L Screw ψ4x16 Allen Wrench 6mm T-Wrench Power Cord Safety Key/Clip SILICON Bolt M4xP0.7x8 TV remote control BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
- Page 13 4. Next slide left hand rail (H) and right hand rail (I) into the console- welding base (E). BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
- Page 14 (F, G) with Allen-head self-tapping screws (e, h, i). NOTE: When you fasten the screws, please ensure that the wires are not pinched. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
- Page 15 13. Secure console cover, rear (K) with 4 bolts (o). * Ensure that all wiring is clear of any ‘pinch points’ when securing the console. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
-
Page 16: Getting Started
10% or greater then unplug. Next, lift the rear of the treadmill and push the treadmill using the front wheels. Always be sure to use proper lifting form / technique. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... - Page 17 SAFETY KEY & CLIP Your Bladez treadmill is equipped with a safety key that will disable the treadmill if it is not in place. You should attach the clip end to your clothing. The magnet end goes into the recess of the console.
-
Page 18: Key Functions
DISTANCE – Total distance traveled during your workout. This value is displayed in miles. PULSE – Pulse will read in beats per minute (BPM). BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013... -
Page 19: Quick Start
▲/▼ TO STOP 1. Step off running belt onto the side rails. 2. Press STOP. The running belt will stop. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013... -
Page 20: Workout Program Details
9. Press ENTER ~ Incline will be flashing. 10. Adjust incline with the ▲/▼ keys if you wish. 11. Press START to begin. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013... - Page 21 8. Adjust time with the keys. ▲/▼ 9. Press START to begin. Age and Pulse presets for HRC Program Preset Preset Preset Preset BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
-
Page 22: Calculating Your Target Heart Rate
Remember to consult your family physician or health care professional to develop a well-planned exercise program to fit your health needs. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013... - Page 23 WORKOUT PROGRAM DETAILS CONTINUED BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
- Page 24 WORKOUT PROGRAM DETAILS CONTINUED BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
- Page 25 WORKOUT PROGRAM DETAILS CONTINUED P11 - Heart Rate Program (HRC) Based on AGE, PULSE and TIME inputs BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
-
Page 26: Using Your Lcd Display
2. Decrease the values in MENU mode. LED LIGHT LCD Power indicator, green for on and red for off. Remote control receiver. RECEIVER BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013... - Page 27 Scan the channels and save them by pressing this key in the TV SCAN mode. Press VOL+ or VOL- to leave MENU. EXIT BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
-
Page 28: Preventive Maintenance
4.0~7.0 Miles / hr = lube every 6 months 7.0~10.0 Miles / hr = lube every 3 months BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013... -
Page 29: Troubleshooting
- Stalled Elevation Elevation Motor screw Clean screw and lubricate binding Elevation Motor out of Check Zero Position of E- Range Motor BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013... - Page 30 Insufficient Power Source Plug unit in a dedicated 120V, 20Amp Outlet Line Cord Damaged Replace Line Cord Fuse Check Fuse on MCB BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
-
Page 31: Warranty
LABOR – 2 Years – (Home Warranty), 1 Year – (Light Commercial Warranty) Bladez Fitness shall cover the labor cost for the repair of the device for a period of Two years from the date of original purchase, so long as the device remains in the possession of the original owner for home use.
