Treadmill Owner's Manual

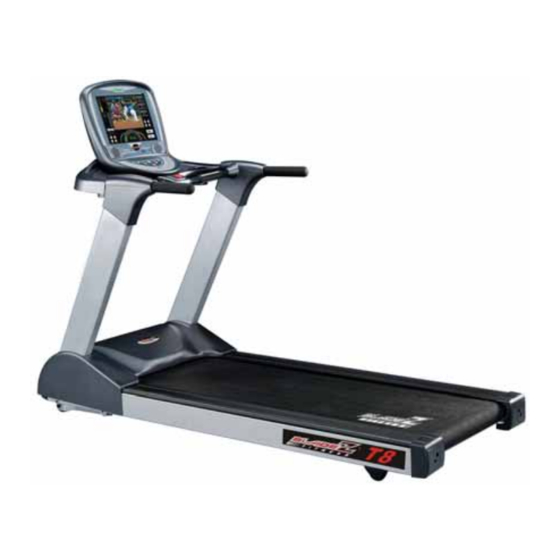

Bladez T6-T8 15" ME
BLADEZ Corporation
20155 Ellipse
Foothill Ranch, CA 92610
Phone: 949-206-8152
Fax: 949-206-0013
Email:
f itness@ebladez.com
H
Revision Date: 8/17/06
BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610
www.ebladez.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the T6 and is the answer not in the manual?

Questions and answers

Related Manuals for BLADEZ T6

Summary of Contents for BLADEZ T6

  • Page 1 Treadmill Owner’s Manual Bladez T6-T8 15” ME BLADEZ Corporation 20155 Ellipse Foothill Ranch, CA 92610 Phone: 949-206-8152 Fax: 949-206-0013 Email: f itness@ebladez.com Revision Date: 8/17/06 BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
  • Page 2 Please read this manual carefully before using your treadmill. This will allow you to get a full understanding of all the features BLADEZ’ treadmills provide. If you have any questions or concerns, please contact BLADEZ Corporation or any authorized BLADEZ FITNESS distributors in your area.

  • Page 3: Table Of Contents

    1. IMPORTANT SAFETY INSTRUCTIONS ............... 3 2. ASSEMBLY INSTRUCTIONS................. 5 3. GETTING STARTED....................15 4. PROGRAM DETAILS ....................22 5. PREVENTIVE MAINTENANCE................29 6. TROUBLESHOOTING.....................30 7. WARRANTY......................32 BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...

  • Page 4: Important Safety Instructions

    15. Connect this appliance to a properly grounded outlet only. 16. This appliance is intended for household use only. SAVE THESE INSTRUCTIONS BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 5 No adapter or extension cord should be used with this product. GROUNDING METHODS GROUNDED OUTLET GROUNDING BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...

  • Page 6: Assembly Instructions

    Computer Rack Assembly Left Handrail Right Handrail Water Bottle Mounting Cover Left Handrail cover Right Handrail cover Computer cover Water Bottle BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 7 Bolt M4x8 Allen wrench 6mm Allen wrench 5mm Silicone Safety Key Power Cord Box Spanner + Screw Driver TV Remote Control BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 8 Insert (F, G) into computer rack (E). When you fasten the bolts, make sure the holes of the computer rack and handrails are lined up. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 9 (c, e). NOTE: When you fasten the bolts, please pay attention not to press the control cable inside the tube. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 10 4 nuts (f). Note: When you connect the cables, please pay attention to the colors). Red to Red. White to White. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 11 Left Upright Right Upright Console Welding-Base Left Handrail Right Handrail Left Handrail Cover Right Handrail Cover Cup/Bottle Holder Cover Computer cover Bottle BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 12 Screw ψ5x25 Screw ψ4x12 Bolt M6x15L Screw ψ4x16 Allen Wrench 6mm T-Wrench Power Cord Safety Key/Clip SILICON Bolt M4xP0.7x8 TV remote controller BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 13 4. Next slide left hand rail (H) and right hand rail (I) into the computer rack assembly (E). BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 14 (F, G) with Allen-head self-tapping screws (e, h, i). NOTE: When you fasten the screws, please ensure that the wires are not pinched. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 15 4 nuts (g) as shown. * Ensure that all wiring is clear of any ‘pinch points’ when securing the console. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...

  • Page 16: Getting Started

    10% or greater then unplug. Next, lift the rear of the treadmill and push the treadmill using the front wheels. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 17 T6-T8 15” ME SAFETY KEY & CLIP Your Bladez treadmill is equipped with a safety key that will disable the treadmill if it is not in place. You should attach the clip end to your clothing. The magnet end goes into the recess of the console.
  • Page 18 English while at this window. Press ENTER and then press + for Metric and – for English. Press ENTER twice to exit. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 19 3. Adjust Speed with keys on lower console or on screen. 4. Adjust Incline with keys on lower console or screen. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 20 Bottom: Current workout profile shown in a 5-minute interval. Note: Blue line indicates elevation and Light yellow line indicates speed. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 21 This is an estimated value. ELEVATION – Elevation will read as a percent of incline. PULSE – Pulse will read in beats per minute (BPM). BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 22 DISTANCE – Total distance traveled during your workout. This value is displayed in miles. – Keys are used to change values of speed and elevation on screen. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...

  • Page 23: Program Details

    NOTE: To change values rapidly, press and HOLD the +/- buttons. Age and Pulse presets for HRC Program Preset Preset Preset Preset BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 24 Remember to consult your family physician or health care professional to develop a well-planned exercise program to fit your health needs. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 = Speed = Elevation BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 26 4. Enter Level 1-10 with the +/- buttons on the touch screen and press ENTER. After a 3-second countdown, the program will start. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 27 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 = Speed = Elevation 1. Press 2. Enter Weight with the +/- buttons on the touch screen and press ENTER. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 28 4. Enter Time with the +/- buttons on the touch screen and press ENTER. After a 3-second countdown, the program will start. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 29 4. Enter Time with the +/- buttons on the touch screen and press ENTER. After a 3-second countdown, the program will start. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...

  • Page 30: Preventive Maintenance

    4~8 Miles / hr = lube every 6 months 8 Miles or more / hr = lube every 3 months BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...

  • Page 31: Troubleshooting

    - Elevation Motor Elevation Motor not moving Check Elevation Motor connection - Stalled Elevation Elevation Motor screw Clean screw and lubricate binding BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...
  • Page 32 Insufficient Power Source Plug unit in a dedicated 120V, 20Amp Outlet Line Cord Damaged Replace Line Cord Fuse Check Fuse on MCB BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com • Phone 949-206-8152 • Fax 949-206-0013...

  • Page 33: Warranty

    LABOR – 2 Years (T6, T8) – (Home Warranty), 1 Year (T6, T8) – (Light Commercial Warranty) Bladez Fitness shall cover the labor cost for the repair of the device for a period of Two years (T6, T8) from the date of original purchase, so long as the device remains in the possession of the original owner for home use.
