MINOURA V100 - V1.2 3-2010 Manual

MINOURA V100 - V1.2 3-2010 Manual

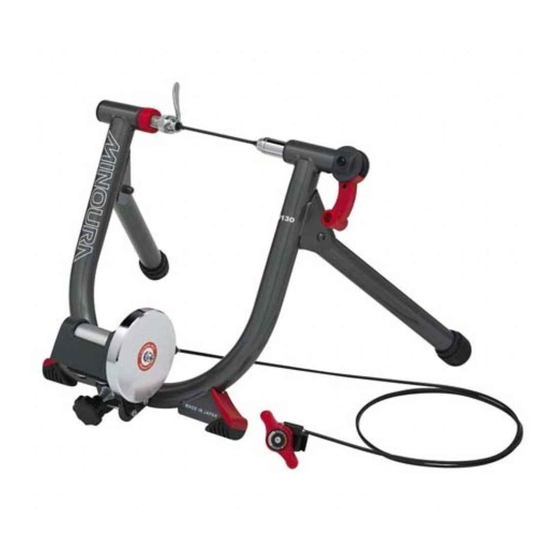

Indoor bicycle trainer

Advertisement

Quick Links

Read this instructions carefully before use
Minoura Japan Headquarters
(for all customers)
1197-1 Godo, Anpachi, Gifu 503-2305 Japan
Phone: +81-584-27-3131 / Fax: +81-584-27-7505
Email: minoura@minoura.jp
www.minoura.jp
Indoor Bicycle Trainer instructions manual
Tire Size Capacity Range <with Z-Adaptor>
V100 / V130
<w/o Z-Adaptor>
Minoura North American Tech Center
1996 East Avenue, Hayward, CA 94541 U.S.A.
Phone: 1-510-538-8599 / Fax: 1-510-538-5899
Email: support@minourausa.com
Made in Japan
24x1.75 - 700x45c
20x1-1/8 - 700x28c
(for U.S. residents only)
(ver.1.2 2010/3)

Advertisement

loading

Summary of Contents for MINOURA V100 - V1.2 3-2010

  • Page 1 V100 / V130 Indoor Bicycle Trainer instructions manual (ver.1.2 2010/3) Tire Size Capacity Range <with Z-Adaptor> 24x1.75 - 700x45c <w/o Z-Adaptor> 20x1-1/8 - 700x28c Read this instructions carefully before use Minoura Japan Headquarters Minoura North American Tech Center (for all customers) (for U.S. residents only) 1197-1 Godo, Anpachi, Gifu 503-2305 Japan 1996 East Avenue, Hayward, CA 94541 U.S.A. Phone: +81-584-27-3131 / Fax: +81-584-27-7505 Phone: 1-510-538-8599 / Fax: 1-510-538-5899 Email: minoura@minoura.jp Email: support@minourausa.com www.minoura.jp Made in Japan...
  • Page 2: Important Notice

    Tools are not supplied in the kit. • Use the supplied rear quick release skewer for maximum stability. Minoura is not responsible for any problem caused from using your own skewer. • Use on flat and level floor or ground for your safety.
  • Page 3 V100/V130 Schematics UF-9 UF-6 UF-7 UF-8 BF-7 GM-19 BF-4 BF-6 M8-4 BF-4 BF-6 MF-3 GM-7 GM-4 GM-17 GM-9 GM-16 GM-18 GM-10 GM-6 GM-11 GM-5 GM-12 GM-3 GM-2 GM-13 BF-4: Leg Rubber Cover (Red) GM-5: Main Housing BF-6: Leg Rubber GM-6: Drive Roller, Axle & Bearing BF-7: V100/V130 Main Frame (Gray) GM-7: Drive Roller Holder UF-6: Right Side Coupling & Clamp Lever GM-9: Axle End Cap UF-7: Clamp Lever Guide...
  • Page 4 Replace your rear wheel quick release skewer to the supplied one. Minoura guarantees the stability only when using the supplied skewer due to the coupling inner shape. If your bike is not equipped with quick release skewer and it's a hub nut type, replace the left side coupling (UF-8) to the optional "Left Side Coupling for Hub...
  • Page 5 Place your rear wheel in between the couplings. 1) Loosen the lock ring (UF-9) to allow the left side coupling (UF-8) be free. (see Fig. C) (Fig. C) 2) Pull up the quick hub clamp lever (UF-6) to retract the right side coupling. (see Fig. D) (Fig. D) 3) Insert the left side (quick lever side) skewer into the left side coupling first.
  • Page 6 Contact the Drive Roller to the rear tire by turning the Roller Pressure Adjust Knob clockwise. (see Fig. J) The best position is that the roller compresses the tire in the depth of 3 - 4 mm. (see Fig. K) Please note too much and too less roller pressure will bring premature tire wear.
  • Page 7 If the rear tire has touched any other parts than the Drive Roller, the part may be damaged and your tire will wear out quickly. It is impossible to adjust the rear wheel position by adjusting the left side coupling position.
  • Page 8 Why My Remote Shifter Doesn't Work Properly? You may have a shifting problem that you cannot set at L or H position properly due to the lengthened inner cable. To fix this problem, follow the steps to adjust the initial cable tension. Set your remote shifter at "H"...

This manual is also suitable for:

V130 - v1.2 3-2010V100V130
