MINOURA V270-2 - SCHEMATICS Manual

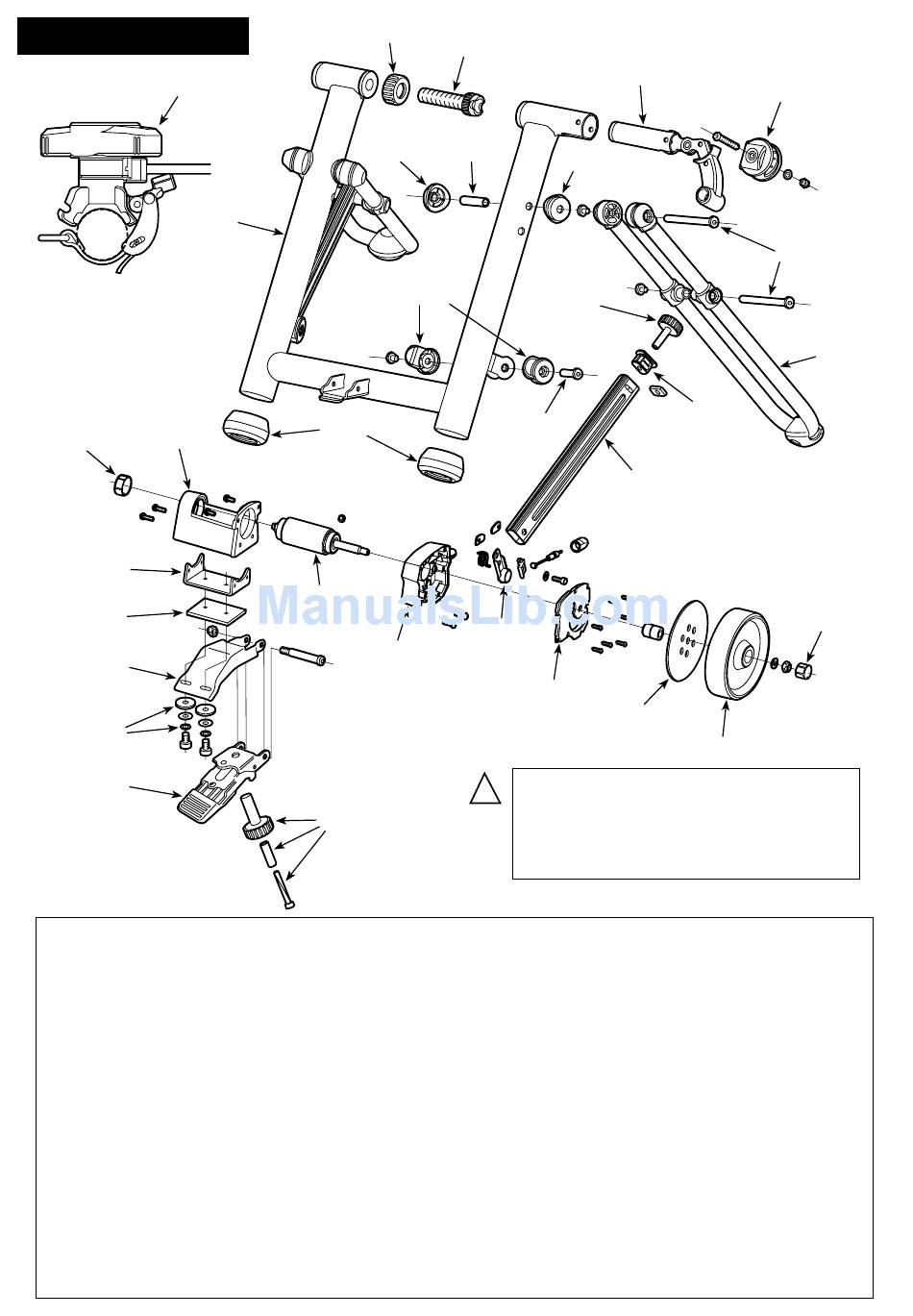

V270-2 Schematics
GM-20
UF-1
GM-7
GM-9
GM-10
GM-11
GM-12
GM-13
GM-14
UF-1 : Main Frame
UF-2 : U-Leg (Chrome Plated)
UF-3 : Alloy Leg Guide
UF-4 : Height Adjuster Cap
UF-5 : Height Adjuster Knob
UF-6 : Right Side Coupling & Clamp Lever (Red)
UF-7 : Clamp Lever Guide
UF-8 : Left Side Coupling
UF-9 : Coupling Lock Ring (Red)
UF-10 : U-Leg Bushing
UF-11 : U-Leg Pivot Sleeve
UF-12 : Alloy Leg Support Bracket Cover
UF-13 : Ruber Cap
UF-14 : Pivot Bolt Set (Long)
UF-15 : Pivot Bolt Set (Short)
UF-9
UF-10
UF-13
GM-6
GM-5
GM-15
UF-8
UF-11
UF-10
UF-12
UF-5
UF-15
GM-4
GM-3
!
CAUTION
Do NOT touch GM-2 "Alloy Rotor"
during and 15 minutes after workout.
It is VERY HOT.
GM-1 :
GM-2 :
GM-3 :
GM-4 :
GM-5 :
GM-6 :
GM-7 :
GM-8 :
GM-9 :
GM-10 :
GM-11 :
GM-12 :
GM-13 :
GM-14 :
GM-15 :
GM-20 :
UF-6
UF-7
UF-14
UF-4
UF-3
GM-2
GM-1
V270 Flywheel
Alloy Rotor
Housing Cover
Neodymium Magnet
Main Housing
Drive Roller, Axle & Bearing
Drive Roller Holder
Flywheel Nut Cap
Axle End Cap
Mag Unit Fitting Bracket
Rubber Shim
Mount Base
Rubber Washer Set
Foot Pedal
Foot Pedal Adjust Knob Set
Remote Shifter (ChromePlated)
UF-2
GM-8
