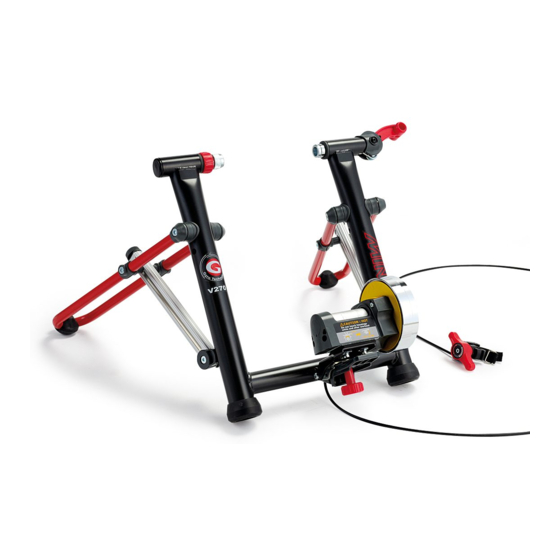

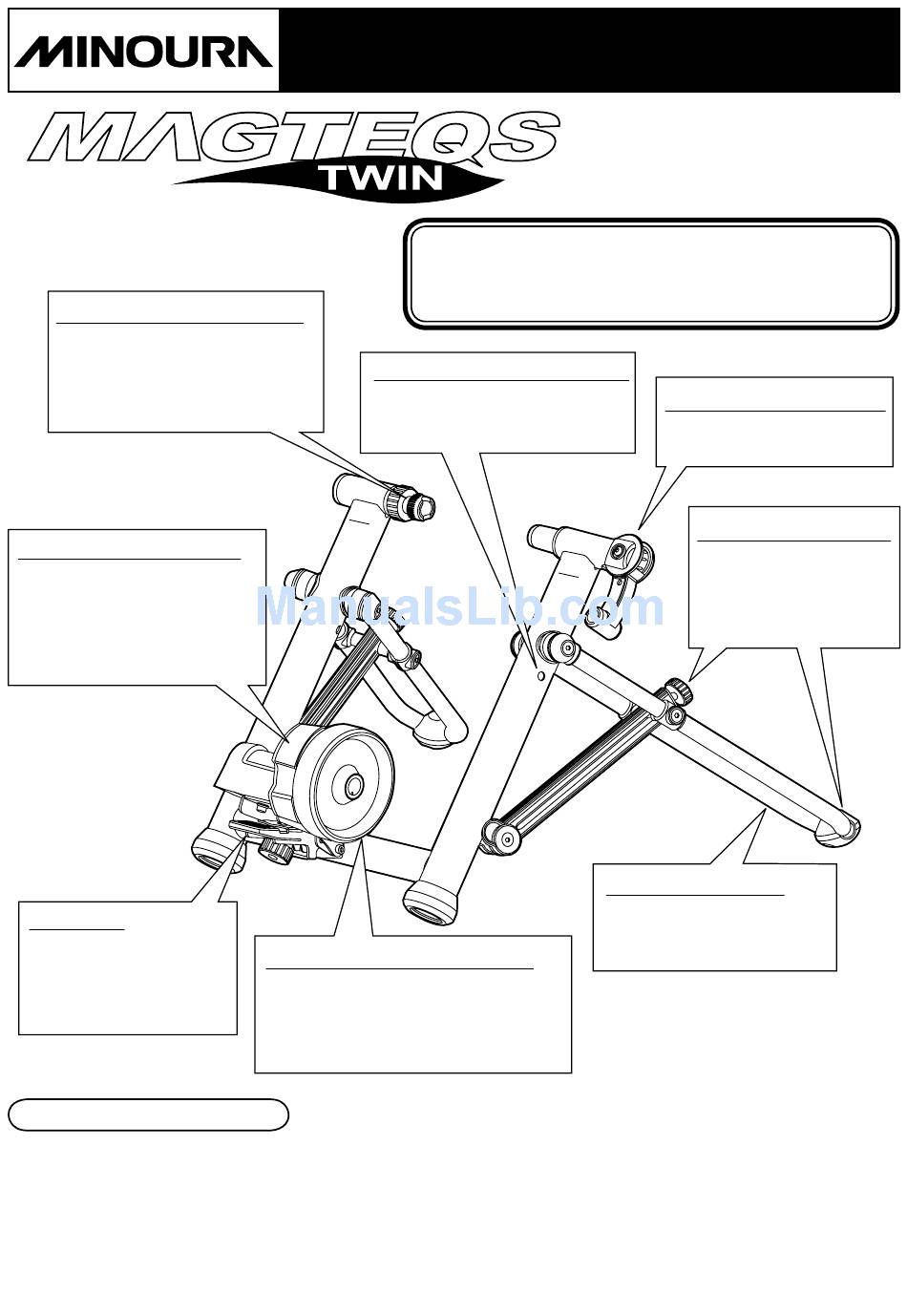

Bolt Type Left Side Coupling
Fits 120 – 145 mm standard hub
width. For quick release type hub
only. For fixed nut hub, replace
to the optional "Longer Left Side
Coupling Bolt" (SKU:400-1285-00).
Tandem Magnet Type Unit
A world's first. Primary magnet is
engaged for the first 7 levels then
the second magnet kicks in for
the next 6 levels.
Gives you the widest range of
resistance of any trainer.
Foot Pedal
Engage, release and adjust
tire contact in one action.
Remembers location so if
you use the same bike, no
new set up is needed.
For More Information
MINOURA U.S.A.
(for U.S. residents ONLY)
1996 East Ave. Hayward, California 94541 U.S.A.
Phone: 1-510-538-8599
Fax:
1-510-538-5899
Email: support@minourausa.com
indoor bicycle trainer
Applicable Tire Size Capacity
• Without Z-adaptor
• With Z-adaptor
U-Leg Hole for Smaller Wheel
Use this hole for all 24", 26", and
650c wheels to keep the bike
horizontal.
Lighter Flywheel = More Power
Our patented flywheel weighs less for
greater portability but performs as well as
a flywheel weighing 35% more. The key
is the inside stair-step design for perfect
power transmission when you need it.
If you need help, please contact the shop where you originally purchased this
product or the distributor in your country first. The distributors list can be found
on our web site. If you don't get enough assistance, you can contact us;
MAGTEQS TWIN
instructions manual
Tubular U-shape Leg
Not just for unique design, but
reduces weight and provides
great stability.
MINOURA JAPAN
(for ALL customers)
1197-1 Godo, Anpachi, Gifu 503-2305 Japan
Phone: +81-584-27-3131
Fax:
+81-584-27-7505
Email: minoura@minoura.jp
Web: www. minoura.jp
(version 1.1E 2010/10)
26 x 1.50 〜 700 x 40c
22 x 1-3/8 〜 26 x 1.25
Quick Release Hub Clamp
Mounts/dismounts your bike in
seconds.
Micro-Adjustable Legs
By turning the dial, the
legs can be adjusted +/-
10 mm to accommodate
uneven surfaces for
complete trainer stability.
Made in Japan
