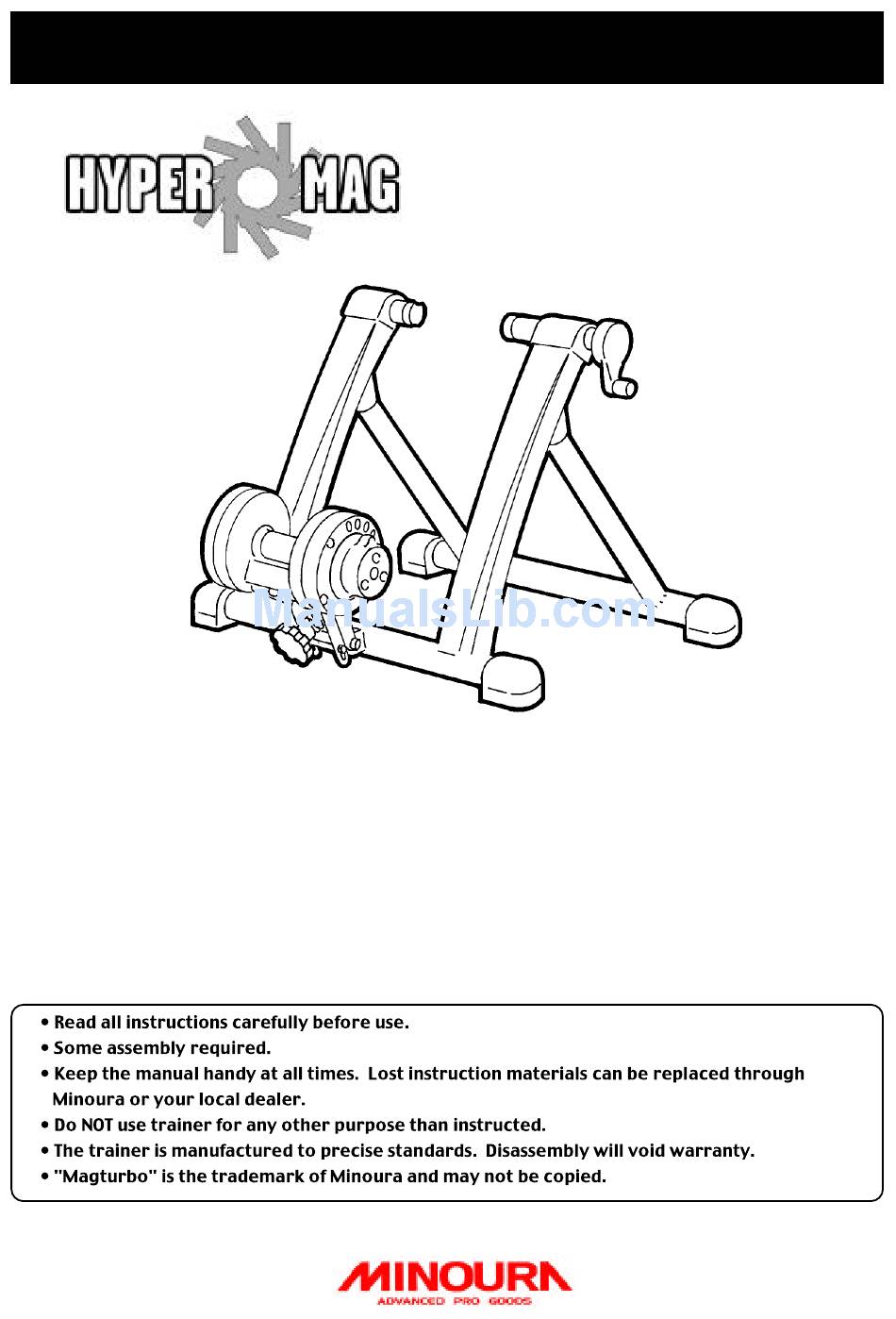

Indoor Bicycle Trainer "HyperMag" Instruction Manual
Thank you very much for purchasing the Minoura HyperMag trainer.
HyperMag has been developed as the most silent indoor bicycle trainer in the world with adopting Minoura's
special technical knowledge for over 12 years such as thicker plastic material, alloy die-casting outer case
and high-level machined unique full-circle magnet.
Also Minoura's patented magnetic resistance system provides more adjustable load settings and extremely
silent circumstances rather than the fluid resistance unit.
HyperMag will fit any wheel between 26" and 27" include 700c.
Type-D : Dial version
Type-R : Remote version
(Figure: Type-D)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MINOURA HYPERMAG
Summary of Contents for MINOURA HYPERMAG
- Page 1 Thank you very much for purchasing the Minoura HyperMag trainer. HyperMag has been developed as the most silent indoor bicycle trainer in the world with adopting Minoura’s special technical knowledge for over 12 years such as thicker plastic material, alloy die-casting outer case and high-level machined unique full-circle magnet.
- Page 2 “ICE” system cannot be used on the HyperMag resistance unit. If you will use HyperMag with an MTB, you should change your rear tire to a slick one from a knobby one in order to prevent any problems caused by noise and vibration.
- Page 3 ASSEMBLING HYPER-MAG TRAINER Coupling Hub Clamping Handle Frame Resistance Unit Flywheel U-Leg Drive Roller Rubber Foot Cap Load Level Adjusting Dial M6 Bolt (Fig. A) M6 Nut Spring Joint Plate Flat Washer Knob Bolt Open the frame and the U-leg, and place on level floor. If the rubber foot caps were twisted, adjust that each flat surfaces fully touch the floor.
- Page 4 Harder clamping can supports the bike firmly, but over-tighten may cause a damage on your bike or HyperMag. Stop tightening when the frame pillars start to move outward. Also you must confirm the stability of the bike everytime you use the HyperMag with shaking the bike slightly.
- Page 5 If you experience a trouble that the load level will increase auto- Increasing matically, the remote shifter lever may loosen. On the system of HyperMag, the inside spinning alloy plate pulls the magnet plate (Fig. H) and this phenomenon happens.
- Page 6 •REMOTE SHIFTER KIT If you are the Type-D (dial version) owner, you can change the outer case of the resistance unit to be Type- R (remote version). Order “Remote Shifter Kit” at your local Minoura dealer. •HYPER-BRAIN CYCLE COMPUTER “HyperBrain” cycle computer is available as a convenient option for both Type-D and Type-R.
