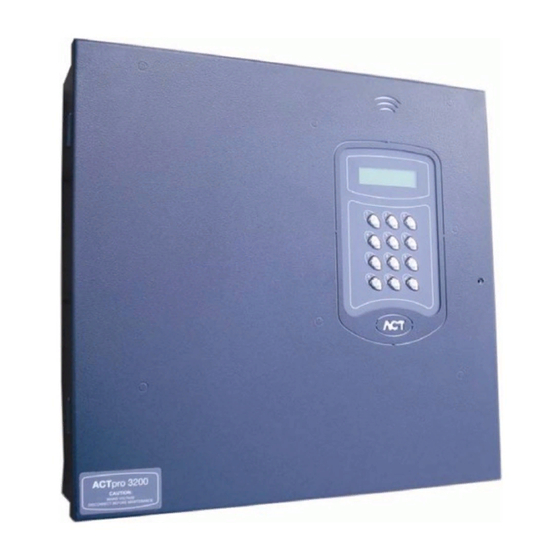

- Page 1 Operating & Installation Instructions for ACTpro 3200 4 Door Controller & 3 Amp Power Supply 18-00061...
- Page 2 ACTpro 3200 Operating and Installation Manual Rev 1.0 Contents PRODUCT FEATURES..............................2 PRODUCT SPECIFICATION ............................2 INSTALLATION NOTES ..............................2 ORDERING INFORMATION ............................2 POWER BUDGET CALCULATION ..........................3 BATTERY BACK-UP ..............................3 CONFIGURING ACTpro 3200 .............................4 Diagrams ACTpro 3200 Installation Diagram..........................5 Unit C1, South City Business Centre, Tallaght, Dublin 24, Ireland.
-
Page 3: Ordering Information
• Mains power should be connected to the ACTpro 3200 by a licensed electrician in accordance with local and national codes. - Page 4 ACT recommends the use of a separated power supply for the locks. The power budget calculation below shows that when all the 4 doors of the ACTpro 3200 are used with ACTpro-X Entry and Exit readers that the total current consumption is 2000mA. This gives headroom of 1000mA.
- Page 5 12. Check that the controller does not report any door offline. Ensure there are no faults reported on the controller display. 13. For ACTWin pro users, make sure the Mains Fault box is ticked for the ACTpro 3200 doors 3 & 14. Download the database.
- Page 6 ACTpro 3200 Operating and Installation Manual Rev 1.0...
- Page 7 ACTpro 3200 Operating and Installation Manual ACTpro 3200 Operating and Installation Manual Rev 1.0 Rev 1.0...
