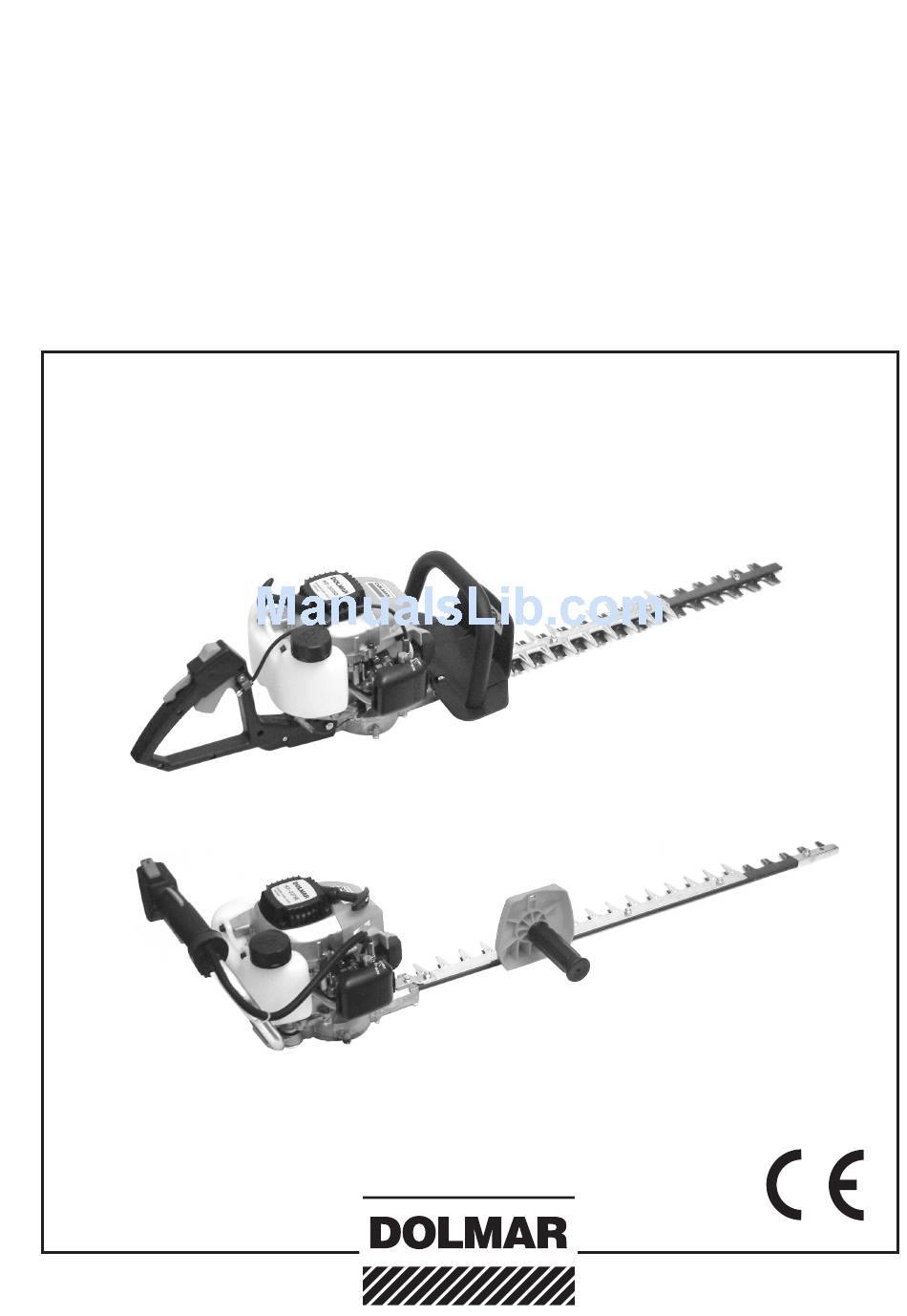

- Page 1 Instruction Manual Important: Read this instruction manual carefully before putting the hedge trimmer into operation and strictly observe the safety regulations! Keep this instruction manual! HT-2556 D HT-2576 E http://www.dolmar.com...
-
Page 2: Table Of Contents
Extract from spare parts list ... 16 Service centres (see enclosure) Packaging Your DOLMAR hedge trimmer is delivered in a cardboard box to protect it during shipping. Cardboard is a basic raw material and is consequently reuseable or suitable for recycling (waste paper recycling). -
Page 3: Delivery Inventory
Delivery inventory 1. Hedge trimmer HT-2576 E (depending on order) 2. Hedge trimmer HT-2556 D (depending on order) 3. Knife guard 4. Universal wrench 5. Instruction Manual (not shown) In case one of the parts listed should not be included in the delivery inventory, please consult your sales agent. -
Page 4: Safety Precautions General Precautions
SAFETY PRECAUTIONS General precautions In order to ensure safe operation, the operator must read this instruction manual to familiarize him or herself with the operation of the hedge trimmer. Users insufficiently informed will endanger themselves as well as others due to improper handling. Lend the hedge trimmer only to persons who are experienced in the use of such machines. -
Page 5: Starting Operation
Fuels can contain substances similar to solvents. Eyes and skin should not come in contact with mineral oil products. Always wear protective gloves when refuelling. Frequently clean and change protective clothes. Do not breathe in fuel vapors. Inhalation of fuel vapours can be hazardous to your health. Do not spill fuel or oil. -
Page 6: Working Technique
All other work must be carried out by DOLMAR Service. Use only original spare parts and accessories. Using other than original DOLMAR parts or accessories brings a high risk of accidents. We cannot accept any responsibility for accidents and damage resulting from non-DOLMAR parts and accesories which have not been approved. -
Page 7: Technical Data
- Rear grip (idle / full load speed) Carburetor Ignition system Spark plug Electrode gap Chain oil tank capacity Mixture ratio (fuel/two-stroke oil) - when using DOLMAR oil - when using other oils Cut length Stroke rate (n Stroke length Max. cut diameter Tooth interval... -
Page 8: Putting Into Operation
For lubricating the engine use a two-stroke engine oil (quality grade: JASO FC or ISO EGD), which is added to the fuel. The engine has been designed for use of DOLMAR high-performance two-stroke engine oil and a mixture ratio of only 50:1 to protect the environment. -
Page 9: Refuelling
fuel/oil mixture Refuelling FOLLOW THE SAFETY PRECAUTIONS! Be careful and cautious when handling fuels. Refuel only with the engine switched off and cooled down! Thoroughly clean the area around the caps, to prevent dirt from getting into the fuel tank. Unscrew the tank cap and fill the tank with fuel mixture until it reaches the bottom edge of the filler neck. Be careful not to spill fuel when pouring. -
Page 10: Cold Start
Turnign the adjustment screw clockwise: Idle speed goes up. Caution: If the blade still does not come to a stop in idle even after idle speed adjustment, do not work with the trimmer under any circumstances. Take it to a DOLMAR service centre! -
Page 11: Environmental Protection Information
Tips on trimming hedges The procedure described here can be used very often and makes working easier. If a hedge has to be cut back very substantially, it should be trimmed in two passes. The trapezoidal form shown prevents the lower portion of the hedge from thinning out due to lack of light. -
Page 12: Maintenance
Regularly check the cutter for damage and clean it with a sui- table brush or cloth. If after extended use cutting performance is no longer satis- factory, the blade needs resharpening. Take it to a DOLMAR service centre. Adjusting the cutter slide play... -
Page 13: Replacing The Spark Plug
Replacing the spark plug CAUTION: Do not touch the spark plug or plug cap if the engine is running (high voltage). Switch off the engine before starting any maintenance work. A hot engine can cause burns. Wear protective gloves! The spark plug must be replaced in case of damage to the insulator, electrode erosion (burn) or if the electrodes are very dirty or oily. -
Page 14: Replacing The Suction Head
The user of the hedge trimmer must not perform maintenance work which is not described in the instruction manual. All such work must be carried out by a DOLMAR service centre. General Hedge trimmer... -
Page 15: Service, Spare Parts And Guarantee
Please bear in mind that if parts other than original DOLMAR spare parts are used, this will automatically invalidate the DOLMAR product guarantee. -
Page 16: Trouble Shooting
Insufficient power Several systems may be involved simultaneously Extract from the spare parts list Use only original DOLMAR parts. For repairs and replacement of other parts, see your DOLMAR service centre. Pos. DOLMAR-No. Qty. 377 601 400 38 650 390 374 300 401 381 014 981... - Page 17 Notes...
- Page 18 Notes...
- Page 19 Notes...
- Page 20 DOLMAR GmbH Specifications subject to change without notice Postfach 70 04 0 D-004 Hamburg Germany Form: 995 701 5 (3.06 GB) http://www.dolmar.com...
