Dolmar MS-260 U, MS-330 U, MS-430 U, MS-230 C, MS-260 C, MS-330 C Instruction Manual

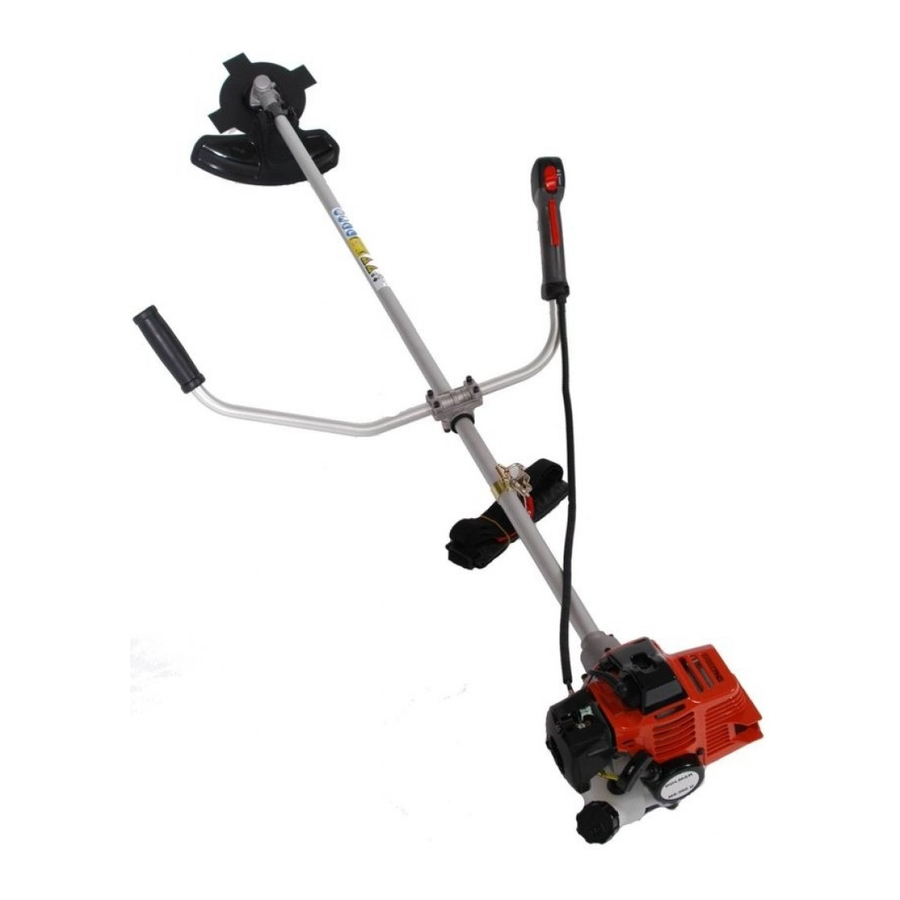

Dolmar brush cutter instruction manual
Hide thumbs Also See for MS-260 U, MS-330 U, MS-430 U, MS-230 C, MS-260 C, MS-330 C:
Table of Contents

Advertisement

Quick Links

Instruction Manual
Read this instruction manual carefully before putting the brushcutter into operation and strictly observe the
http://www.dolmar.com
Keep this Instruction Manual!
MS-260 U
MS-330 U
MS-430 U
Important:
safety regulations!
MS-230 C
MS-260 C
MS-330 C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-260 U, MS-330 U, MS-430 U, MS-230 C, MS-260 C, MS-330 C and is the answer not in the manual?

Questions and answers

Валерий
May 27, 2025

Карбюратор на долмар мс 230с есть в продаже?

0
1 comments:
Mr. Anderson
May 27, 2025

Yes, the carburetor is available for the Dolmar MS-230 C.

This answer is automatically generated

0

Related Manuals for Dolmar MS-260 U, MS-330 U, MS-430 U, MS-230 C, MS-260 C, MS-330 C

Summary of Contents for Dolmar MS-260 U, MS-330 U, MS-430 U, MS-230 C, MS-260 C, MS-330 C

  • Page 1 Read this instruction manual carefully before putting the brushcutter into operation and strictly observe the MS-260 U MS-330 U MS-430 U http://www.dolmar.com Important: safety regulations! Keep this Instruction Manual! MS-230 C MS-260 C MS-330 C...

  • Page 2: Table Of Contents

    Thank you for choosing a DoLMar product! We trust that you will be a satisfied customer. By choosing a DOLMAR you have chosen one of the most advanced brushcutters. With their two-stroke gasoline engines the brushcutters can be used anywhere, and with their fuel pump (primer) they are unusually easy to start.

  • Page 3: Delivery Inventory

    Delivery inventory Brushcutter Handle (version depends on model) Harness Cable ties (only with the MS-60/330/430 U) Combination tool, af 17/19 allen key, 4 mm allen key, 5 mm wrench, 8/10 guard (cutting attachment guard) 10. Cutting tool (MS-60/330/430 U = 4-tooth star blade, MS-30/60/330 C = -line trimmer head) 11.

  • Page 4: Safety Precautions General Precautions

    SafETy PrECaUTIonS general precautions Proper use: These power brushcutters are intended for cutting grass or heavy weeds, with the appropriate and permissible cut- ting tools. A brushcutter may be operated only by one person, and only out of doors! Improper use: The cutting tools permissible for this brushcutter must not be used to cut heavier material such as shrubs, bushes, heavy growth, or thickets.

  • Page 5: Putting Into Operation

    Ensure that no fuel or chain oil oozes into the soil (environmental protection). Use an appropriate base. Refuelling is not allowed in closed rooms. Fuel vapors will accumulate near the floor (explosion hazard). Carefully tighten the locking screw of the fuel tank and inspect the fuel cap at regular intervals. Change the place before starting the engine (at least 3 meters from the place of refuelling) (6).

  • Page 6: Kickback

    (as an adjunct to a lawnmower). 4-tooth star blade (14) For cutting grass or heavy weeds. Perform this cutting work by swinging the brush cutter evenly in half-circles from left to right (15, similar to a scythe). Transport...

  • Page 7: Maintenance

    DOLMAR customer service (17). Use only original DoLMar spares and accessories. The use of non-DOLMAR spares, accessories, or cutting tools increases the risk of accident. DOLMAR will not accept any liability for accidents or damage caused by the use of non-approved cutting tools and fixing devices of cutting tools, or accessories.

  • Page 8: Technical Data

    Weight (not including guard, cutting tool and fuel) The maximum rated speed of the trimmer head is not exceeded when using a DOLMAR trimmer head. Figures derived in equal part from idle and top-speed operation (per EN-ISO 11806). At max. power...

  • Page 9: Putting Into Operation

    PUTTIng InTo oPEraTIon CaUTIon: when working on the brushcutter always be absolutely certain to switch off the engine, pull the spark plug cap and wear protective gloves! IMPorTanT: Do not start the brushcutter until fully assembled and inspected! Installing the handle (MS-60 U, MS-330 U, MS-430 U) Loosen screws (a/1) and unscrew about 1- mm.

  • Page 10: Installing The Cutter Guard

    Installing the cutter guard Important: Safety regulations and your own safety make it imperative to use the right cutter guard with a given cutting tool! Tool/guard combinations for the MS-260 U / MS-330 U / MS-430 U Cutting tool 4-tooth star blade: Part no. 351 511 010 Outside diameter: 30 mm (9"), arbour: 0.0 mm (4/5") 2-line trimmer head Part no.

  • Page 11: Mounting The 4-Tooth Star Blade

    Mounting the 4-tooth star blade (MS-60 U / MS-330 U / MS-430 U) always switch off the engine and disconnect the spark plug cap before mounting metal cutter blades! wear protective gloves! Unscrew the locknut (C/7) from the shaft by turning it clock- wise.

  • Page 12: Adjusting The Line

    adjusting the line replacing the line always switch off the engine and disconnect the spark plug cap before replacing the line! Push the housing tabs (f/1) inward to remove the housing cover (f/2). Remove the spool (f/5) from the housing cover (f/2) remove all line and line fragments.

  • Page 13: Fuel Mixture / Refuelling

    ISO EGD quality grade). Add it to the fuel during refuelling. The engine was designed for use with a high performance two-stroke oil sold by DOLMAR, with a mixture ratio of 50:1. This will ensure long engine life and reliable operation with low exhaust emissions.

  • Page 14: Putting On The Harness

    Putting on the harness Put on the harness as shown in figure A. Adjust it so that the clip is about a hand-width above your hipbone. Quick-release buckle Start engine Balancing the brushcutter Correctly balancing the brushcutter reduces strain on the arms while working. When using the trimmer head on a level terrain, the trimmer head should touch the ground lightly without the user having to hold the unit.

  • Page 15: Idle Adjustment

    Unscrew the adjustment screw (H/6) no more than 1/8 turn (counter-clockwise). Repeat the procedure if the cutting tool still rotates during idling. If the cutting tool does not stop, do NOT work with the brushcut- ter. Take it to a DOLMAR service centre!

  • Page 16: Repair And Maintenance Work

    Failure to perform the prescribed mainte- nance work can lead to accidents! Do not do any maintenance or servicing work not described in this Instruction Manual. All such work may be done only by a DOLMAR service station.

  • Page 17: Cleaning The Air Filter

    Cleaning the air filter replacing the spark plug Inspecting the spark plug Loosen the screws (a/1) and remove the air filter cover (a/2). - Take the foam filter out of the cover. Caution: To prevent eye injuries, do not blow out dirt particles! - Very dirty filters can be cleaned out using regular dishwash- ing liquid in lukewarm water. - If it is very dirty clean it more often. Only a clean filter ensures full engine power! - Before reinstalling the air filter check the choke valve for dirt...

  • Page 18: Lubricating The Gear Box

    After about 50 tankfuls, have the brushcutter thoroughly inspected at a DOLMAR service centre. no maintenance and adjustment work not described in this manual may be performed by the user. al such work must be performed only by a DoLMar service centre. Trouble shooting fault System...

  • Page 19: Extract From The Spare Part List

    Please bear in mind that if parts other than original DOLMAR spare parts are used, this will automatically invalidate the DOLMAR product guarantee.
  • Page 20 • Work on the brushcutter by unskilled persons or inappropriate repairs. • Use of unsuitable spare parts or parts which are not original DOLMAR parts, insofar as they have caused the damage. • Use of unsuitable or old oil. •...
  • Page 21 notes...
  • Page 22 notes...
  • Page 23 notes...
  • Page 24 DOLMAR GmbH Specifications subject to change without notice Postfach 70 04 0 D-004 Hamburg Germany Form: 995 703 48 (.06 GB) http://www.dolmar.com...
