Installing the Dialogic® Vision™ Server TIGW1U

Connecting to a power source

If you are installing an AC server, connect a power cord to the AC connector on the
back of the server and plug the cord into an AC outlet.

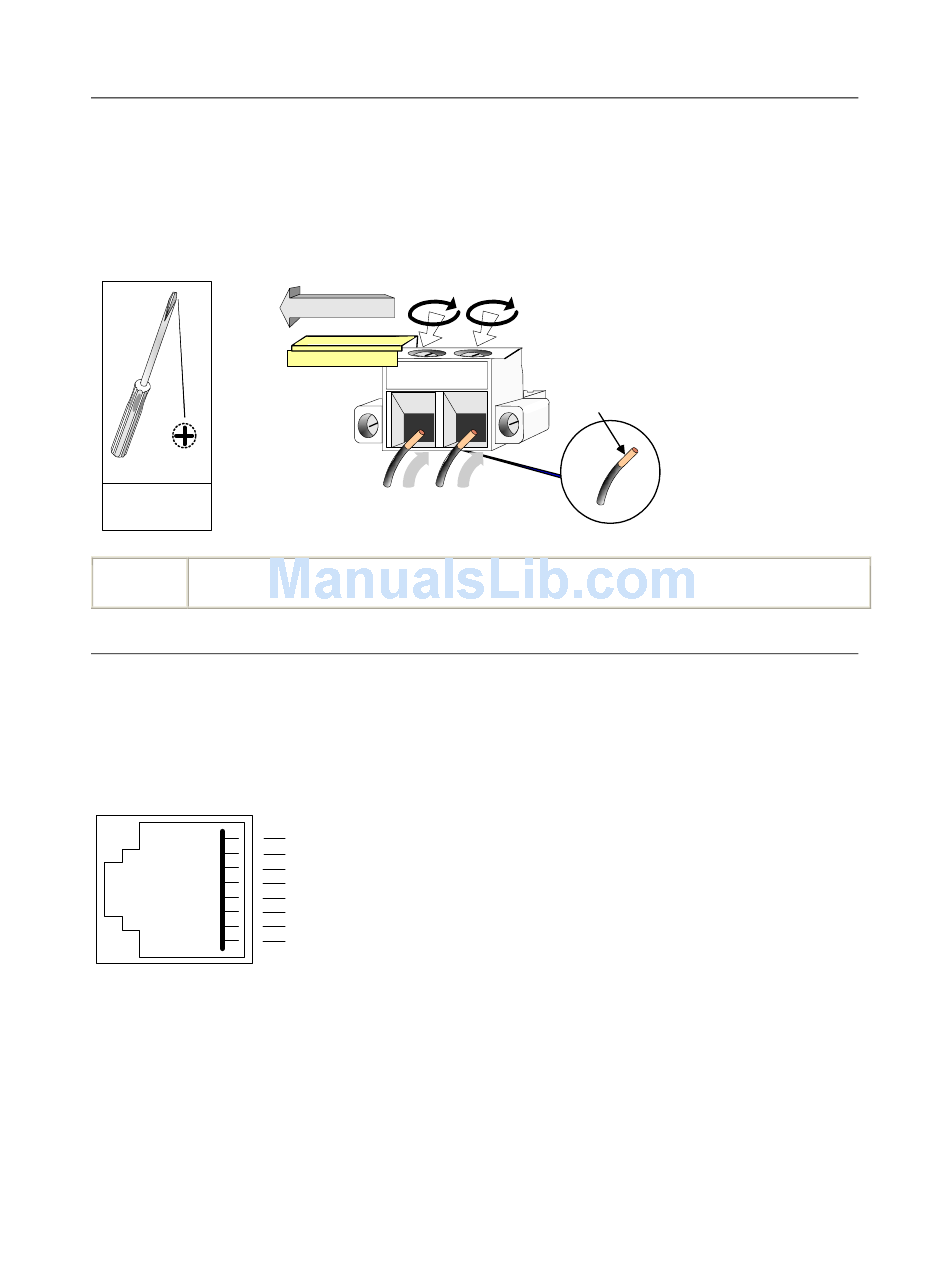

To install a DC server, slide open the cover for the DC power connector and strip the
wire insulation back from the wire. Insert each wire all the way into the connector
and tighten the screw on top of the connector as shown:
#2 Phillips
24 lbf-in
(2.7 Nm)
Caution: The top cover must be fully closed before applying power to cables or attaching the
connector to the power supply.

Connecting Ethernet cables

To connect to a 10Base-T, 100Base-T, or 1000Base-T network, use two shielded
twisted pair (STP) Category 5 or better Ethernet cables. The two 10/100/1000Base-T
Ethernet connectors provide the line card with Ethernet connections supporting auto-
negotiation for 10, 100, and 1000 Base-T full duplex and half duplex transmissions.
The following illustration shows pin assignments for the RJ-45 line card Ethernet
interfaces:
P i n 1
P i n 8
6
Slide open top to
reveal screw holes.
Minimum wire
gauge 14 AWG
P i n 1 : M D I 0 P
P i n 2 : M D I 0 M
P i n 3 : M D I 1 P
P i n 4 : M D I 2 P
P i n 5 : M D I 2 M
P i n 6 : M D I 1 M
P i n 7 : M D I 3 P
P i n 8 : M D I 3 M
16 mm (0.625")
M = minus
P = plus
Dialogic Corporation
