Caution: Temperature: The operating temperature of the server, when installed in an equipment
rack, must not go below 5 °C (41 °F) or rise above 35 °C (95 °F). Extreme fluctuations in
temperature can cause a variety of problems in the server.
Ventilation: The equipment rack must provide sufficient airflow to the front of the server
to maintain proper cooling.
Codes and regulations: Ensure that the installation meets all government codes and
regulations concerning facilities. In addition, all sites where the Vision Server TIGW1U are
deployed must meet all local, national, and international codes.
The following table summarizes the steps required for installing the Vision Server
TIGW1U:
Step Action
1 Install the Vision Server TIGW1U.
2 Make a good low impedance connection to earth
ground.
3 Provide a power source for the server.
4 Connect Ethernet interfaces to the device, if
applicable.
After the installation is complete, configure the Vision Server TIGW1U as described in
the documentation. Refer to the Accessing Vision Documentation document for
information about accessing the documentation.

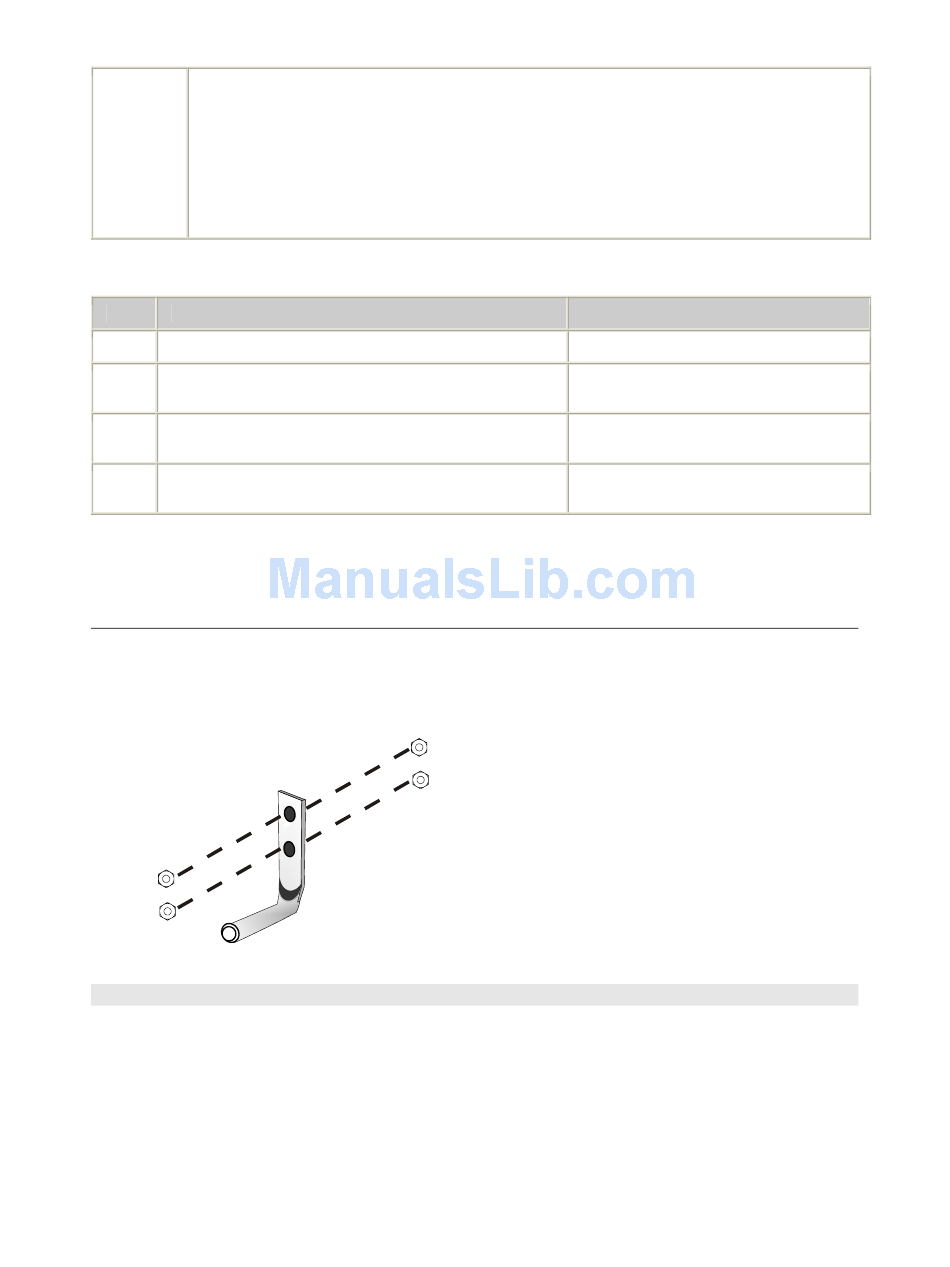

Grounding the server
Before connecting the server to a power source, be sure it is properly grounded. The
server must be grounded using a two-hole #10x5/8 ground lug (Burndy
YAV102TC10-90 or equivalent). Use four #10-32 nuts, one under and one on top of
the ground lug as shown:
Ground lug
Four #10-32 nuts
Tighten each nut to 10 in-lbs torque.
Note: The ground lug and nuts are not included with the server.
Dialogic Corporation
Installing the Dialogic® Vision™ Server TIGW1U
Refer to...
Intel Server Deployment Toolkit CD
Grounding the server on page 5
Connecting to a power source on page
6
Connecting Ethernet cables on page 6
5
